Side 1/8

INSTALLATION INSTRUCTIONS

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Direct Attach Ceiling Mount

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

JHS SERIES

JHS SERIES Installation Instructions

DISCLAIMER

Milestone AV Technologies, Inc., and its affiliated corporations

and subsidiaries (collectively, "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® and Centris™ are registered trademarks of Milestone

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING:

A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION:

A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING:

Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING:

Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING:

Exceeding the weight capacity of the mount

can result in serious personal injury or damage to equipment!

It is the installer’s responsibility to make sure the combined

weight of the mount and all attached components does not

exceed 75lbs (34.02kg).

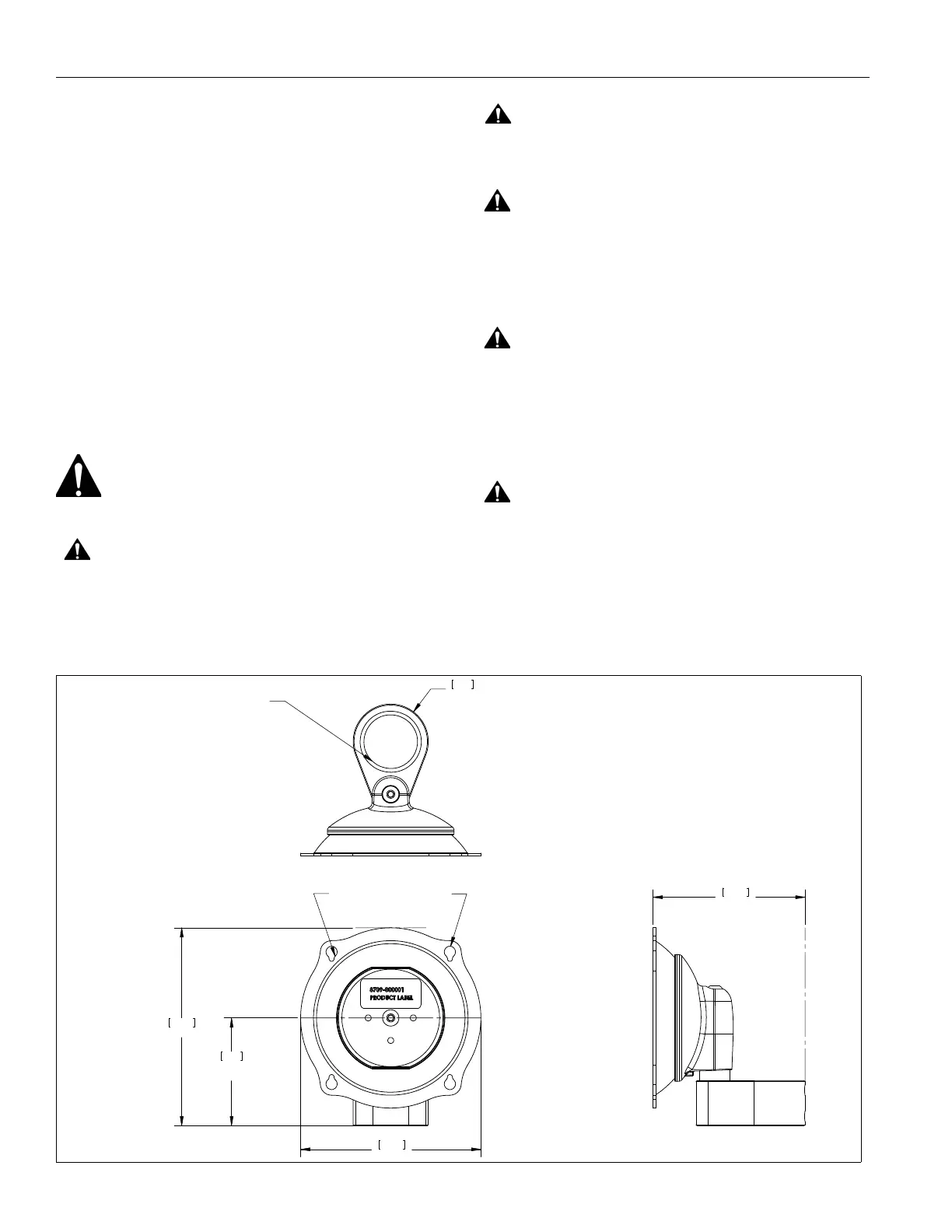

DIMENSIONS

6.59

167.3

6.00

152.4

3.59

C/L OF VESA PATTERN

91.1

100 mm VESA PATTERN

5.05

128.3

UP-DOWN TILT +/- 15°

LEFT-RIGHT SWIVEL +/- 75°

R1.25

31.8

1-1/2" NPS

MEASUREMENTS IN:

[MILLIMETERS]

INCHES

Installation Instructions JHS SERIES

LEGEND

TOOLS REQUIRED FOR INSTALLATION AND PARTS

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Сожмите Застежку

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Ослабьте Застежку

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Отвертка

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Ключ с шестигранной головкой

I/M

Interface Bracket

Kit

(including hardware)

3/16" (provided)

5/32" (provided)

B (2)

5/16-18 x 3/8"

A (1)

x 1

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	JHSUB
Produktfarge:	Sort
Vippevinkelområde:	-15 - 15 °
Kroppsmateriale:	Metall
Montasjetype:	Tak
Maksimalvekt (kapasitet):	27.99 kg
Monteringsgrensesnitt, kompatibilitet (min):	100 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks):	400 x 400 mm
