Side 1/26

ESPAÑOL

FRANÇAIS ITALIANO PYCCKO

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113, USA (6901-300027 <01>)

Customer Service: (800) 359-5520 • (651) 484-7988 • fax (651) 636-0367

See complementary Sanus products at www.sanus.com

中文

ENGLISH

International Assembly Instructions for model PFFP2

ENGLISH

Assembly Instructions for Sanus Systems Platinum Furniture Model: PFFP2

Thank you for choosing Sanus Systems Platinum Furniture. The PFFP2 is designed to support a 30” to 50” ﬂat panel television up to 130 lbs.

If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.

com. Our customer service representatives can assist you quickly with any issues regarding assembly or missing parts. Check carefully to

make sure none of the parts are missing or defective. Never use defective parts. Replacement parts for products purchased from an authorized

dealer will be shipped directly to you. Please call Sanus Systems before returning products to the retail store where you purchased them.

Required Tools: Wrench or Socket Set, Phillips Screw Driver

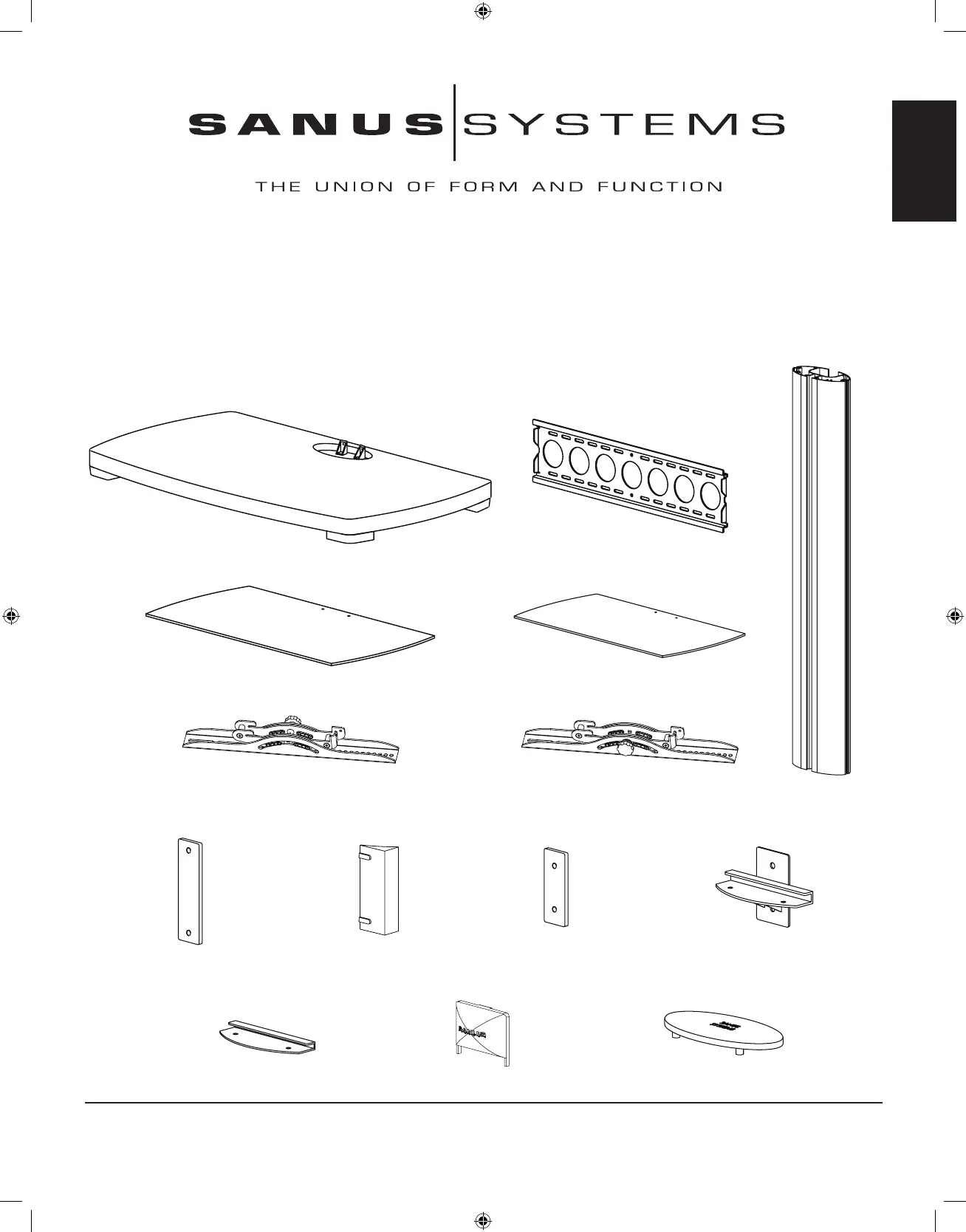

Parts: Some parts not shown at same scale*

(1) Base - a (1) Wall Bracket - b

(1) Large Glass Shelf - c (1) Small Glass Shelf - d

(1) Right Monitor Bracket - e (1) Left Monitor Bracket - f (1) Pillar - g

(1) Wall Plate - h* (2) Wall Bracket Spacer - i* (2) Shelf Plate - j* (2) Shelf Bracket - k*

(2) Glass Shelf Washer - l* (2) Shelf Bracket Cap - m* (1) Top Cap - n*

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113, USA

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	PFFP2B
Bredde:	1098.6 mm
Dybde:	590.6 mm
Høyde:	1238.3 mm
Pakkevekt:	54550 g
Dimensjoner (B x D x H):	1098.6 x 590.6 x 1238.3 mm
Minimum skjermstørrelse:	30.00 "
Produktfarge:	Sort
Vippevinkelområde:	-12 - 12 °
Pakkedybde:	692.2 mm
Pakkehøyde:	279.4 mm
Pakkebredde:	1270 mm
Skjermstørrelsekompabilitet:	30.00 - 50.00 "
Montasjetype:	Gulv
Maksimalvekt (kapasitet):	59.09 kg
Antall inkluderte hyller:	3
Dybde nederste hylle:	590.55 mm
Dybde øverste hylle:	419.1 mm
Bredde nederste hylle:	1098.55 mm
Bredde øverste hylle:	615.95 mm
