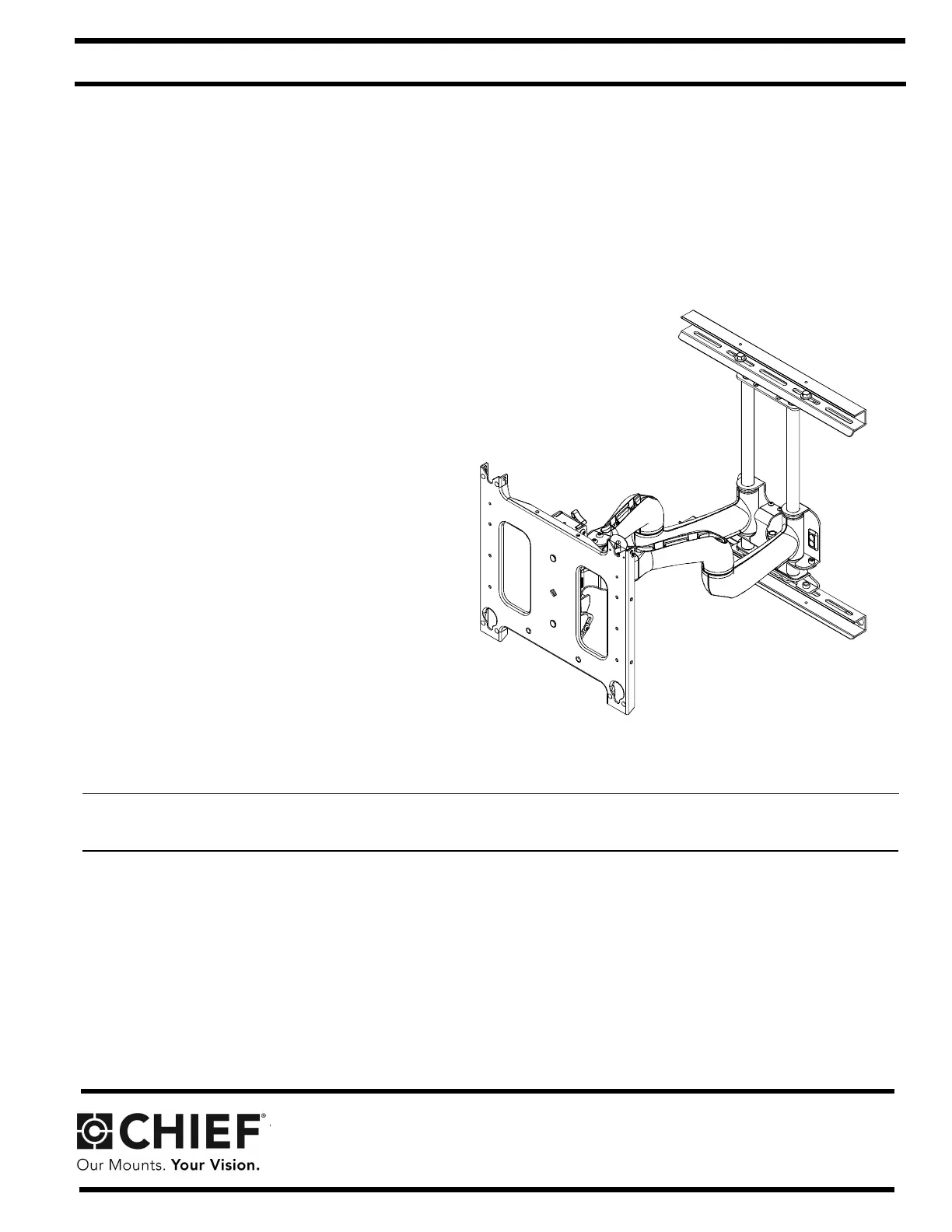

INSTALLATION INSTRUCTIONS

Large Flat Panel Dual Arm Wall Mount

Model PNR™

The PNR is wall-mounted, rugged, versatile, and

installer-friendly. The PNR is compatible with the

standard (14” x 14”) PSB interface bracket in which a

display can be mounted in either the landscape or

portrait position on the PNR.

The dual arms on the PNR:

Extend from the wall 25” in length

Pivot up to 90º left or right of center

The standard PNR is shipped with the support posts for

the dual arms centered in the mount. The support posts

can be moved laterally right or left of center to readily

accommodate sites with limited wall space. The mount

also has over an inch of height adjustment. The tilt range

for the display is 5º up and 15º down.

The PNR was designed for fast installation. After drawing

the plumb line and installing the two top lag bolts into the

dual wall studs, the installer hangs the PNR on its top

bracket and installs two lag bolts in the bottom bracket.

Next, the installer makes the height adjustment, mounts

the display, and connects the power/audio/video cables,

which are diverted into the built-in path in the swing-out

arms. After making the lateral, rotational, and tilt

adjustments, the installation process is complete.

BEFORE YOU BEGIN

CAUTION: To prevent damage to the PNR, which could affect or void the Factory warranty, and to the equipment that

will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particular

attention to the “Important Warnings and Cautions” on Page 2.

• The combined weight of the components installed on the PNR must not exceed 200 lbs. (90.72kg).

• The PNR wall mount must be installed on dual wall studs or supporting framework. The wall to which the PNR is

anchored must be capable of supporting five times the total weight of the mount and all attached equipment.

Chief Manufacturing, a products division of

Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918

8831-000007 RevK

Duchossois Group Company

www.chiefmfg.com

08/10

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	PNR2059B
Bredde:	692 mm
Dybde:	83 mm
Høyde:	560 mm
Produktfarge:	Sort
Vippevinkelområde:	-15 - 5 °
Skjermstørrelsekompabilitet:	42 - 71 "
Kroppsmateriale:	Metall
Dreietapp/dreiemekanisme:	0 - 90 °
Omdreiningsakse/midtpunkt:	Ja
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	90.7 kg
