INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC.

8805-000043

1-800-582-6480 952-894-6280 FAX 952-894-6918 2003 Chief Manufacturing

8401 EAGLE CREEK PKWY, STE 700 www.chiefmfg.com

PLASMA DISPLAY STATIC MOUNT

PSM-2091, PSM-2092, & PSM-2095

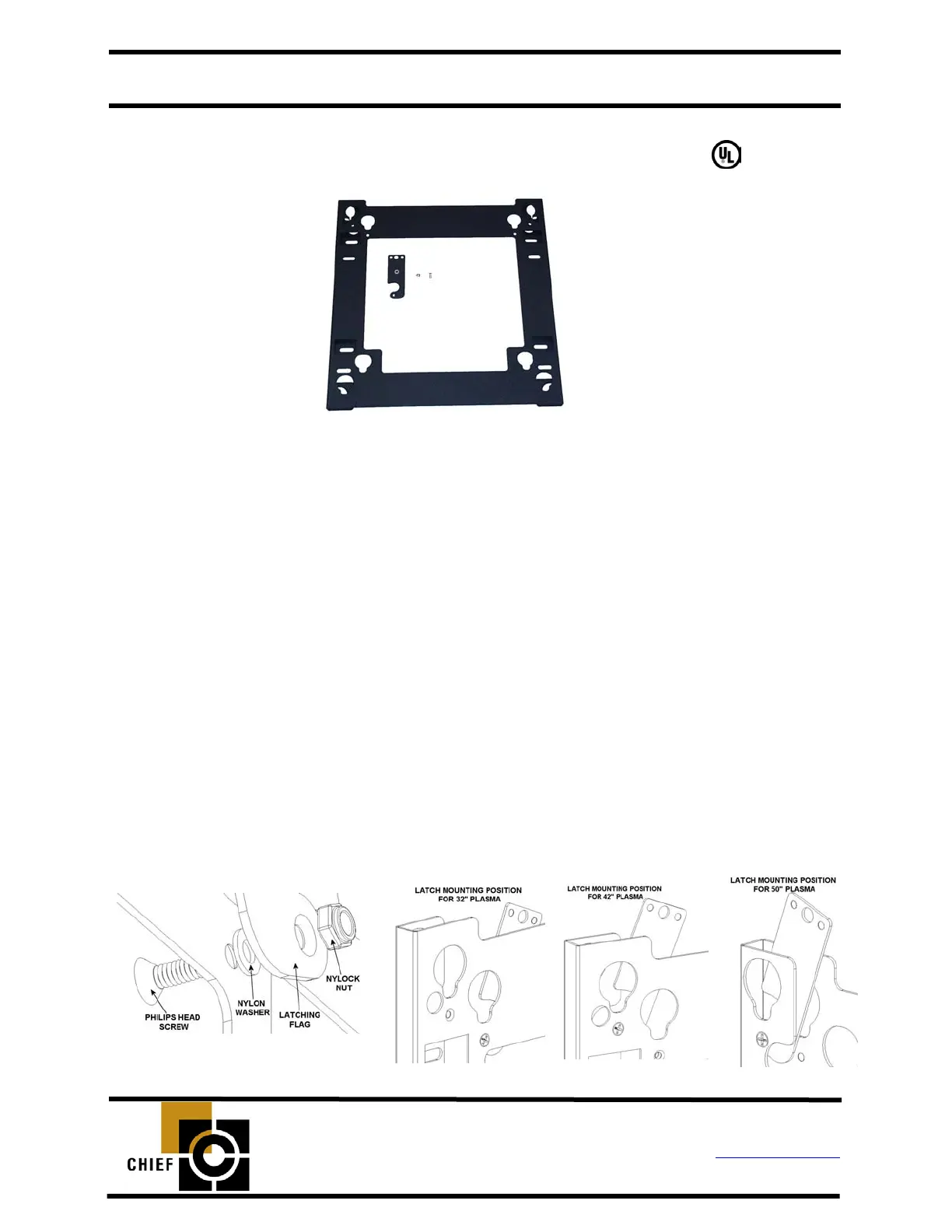

Figure 1

(1) Plasma Static Mount (1) 10-24 x .5 FH Socket Screw

(1) Latching Flag (1) 10-24 Nylock Nut

(1) Nylon Washer

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

CAUTION!

PLASMA DISPLAYS ARE EXTREMELY FRAGILE.

The PSM 2091, 2092, and 2095 is designed so one mount will work for the Sony

PFM32, Sony PFM42, and Sony PFM50 plasma displays. There are 3 mounting

patterns on the mount corresponding to the mounting button pattern on the back

of the respective plasma. On one side of the mount has patterns for the 32 and 42-

inch plasma and the other side has the mounting pattern for the 50-inch plasma.

The latching flag must be attached to the mount in the proper location for each

individual plasma.

1. Attach latching flag to mount utilizing the proper position on the mount with the latching flag

on the inside of the mount. Tighten Nylock nut until friction is sufficient to hold the latch in

place (see Figure 2, Figure 3, Figure 4, & Figure 5).

Figure 5

Figure 4

Figure 3

Figure 2

SAVAGE, MINNESOTA 55378 USA 08/04

WARNING!

ALL COMPONENTS MUST BE SECURELY FASTENED TO

A STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4

TIMES THE COMBINED WEIGHT OF ALL COMPONENTS

PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT

SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE

REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS 175 POUNDS (79.38KG).

2. Mount plasma static mount onto wall utilizing wall studs or supporting framework with the

proper face of the mount away from the wall for the respective plasma (see WARNING,

Figure 6, & Figure 7.

Figure 6

Figure 7

3. Turn latching flag to the side prior to placing plasma in place.

4. With the aid of another person, lift plasma display up to the Chief mount, aligning mounting

buttons with the teardrop slots dependent upon the model plasma (see Figure 8 & Figure 9).

ure 8

Figure 9

5. Raise safety latch to secure plasma in place (see Figure 10).

Figure 10
