INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8805-000200

1-800-582-6480 952-894-6280 FAX 952-894-6918 2006 Chief Manufacturing

8401 EAGLE CREEK PARKWAY, STE 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 09/06

DISPLAY STATIC MOUNT

PSM-2124

(1) Static Mount (1) 10-24 x .5 Phillips Head Cap Screw

(1) Latching Flag (1) Nylon Washer

(4) M6 X 25mm Phillips Head Cap Screws (1) 10-24 Nylock Nut

(4) Mounting Buttons

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

Displays are Extremely Fragile.

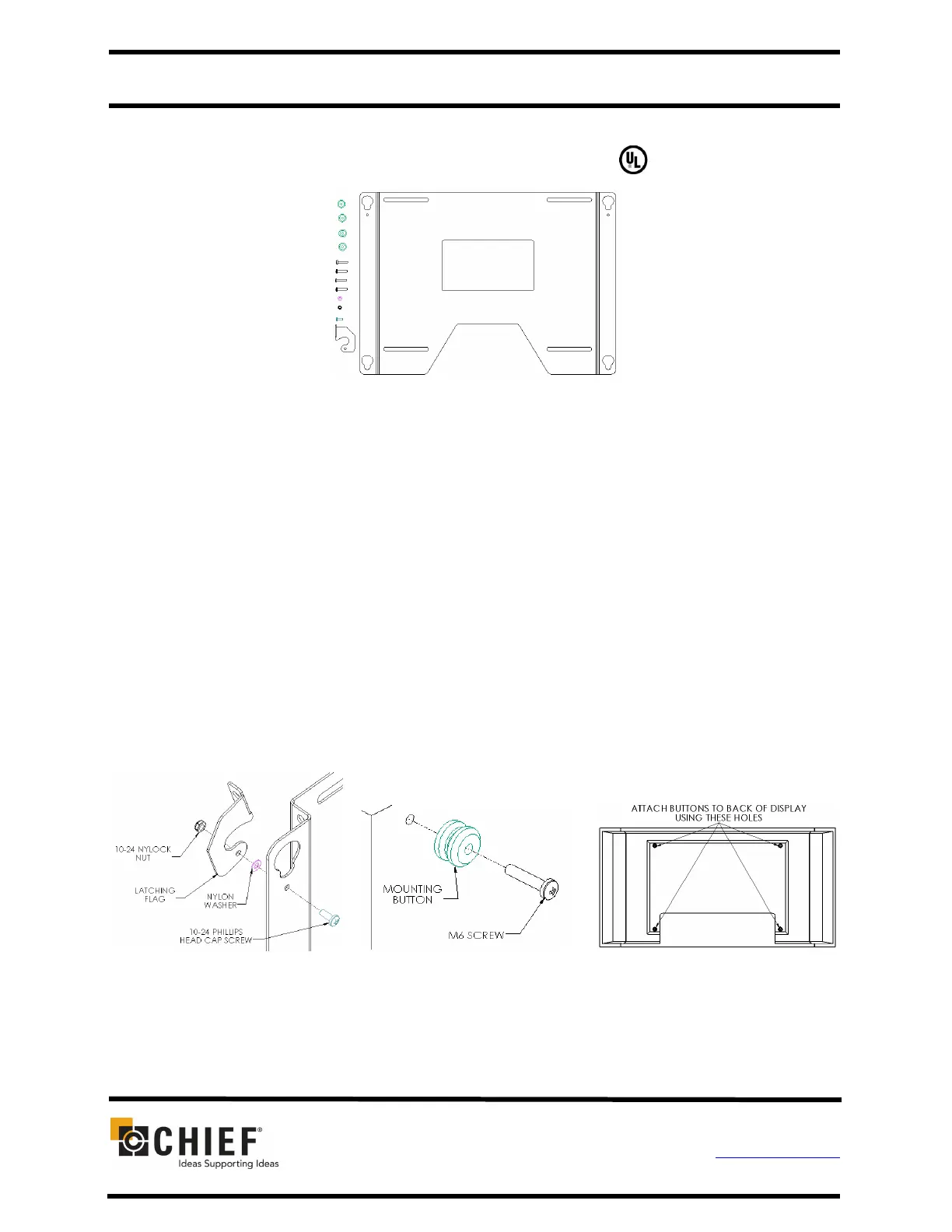

1. Attach latching flag to mount using the 10-24 screw, Nylon washer, and Nylock nut (see

Figure 2). Tighten until friction will hold the flag in place.

2. Attach mounting buttons to the display using the M6 screws provided (see Figure 3 &

Figure 4).

CAUTION!

Figure 2

Figure 1

Figure 4

Figure 3

3. Securely anchor the static mount to wall studs or supporting framework (see WARNING).

4. Make sure the flag is lowered to the side before attempting to place the display on the mount.

5. With the aid of another person, lift the display up to the mount, align the mounting buttons

on the display with the teardrop slots in the mount, and set the display into place (see

Figure 5).

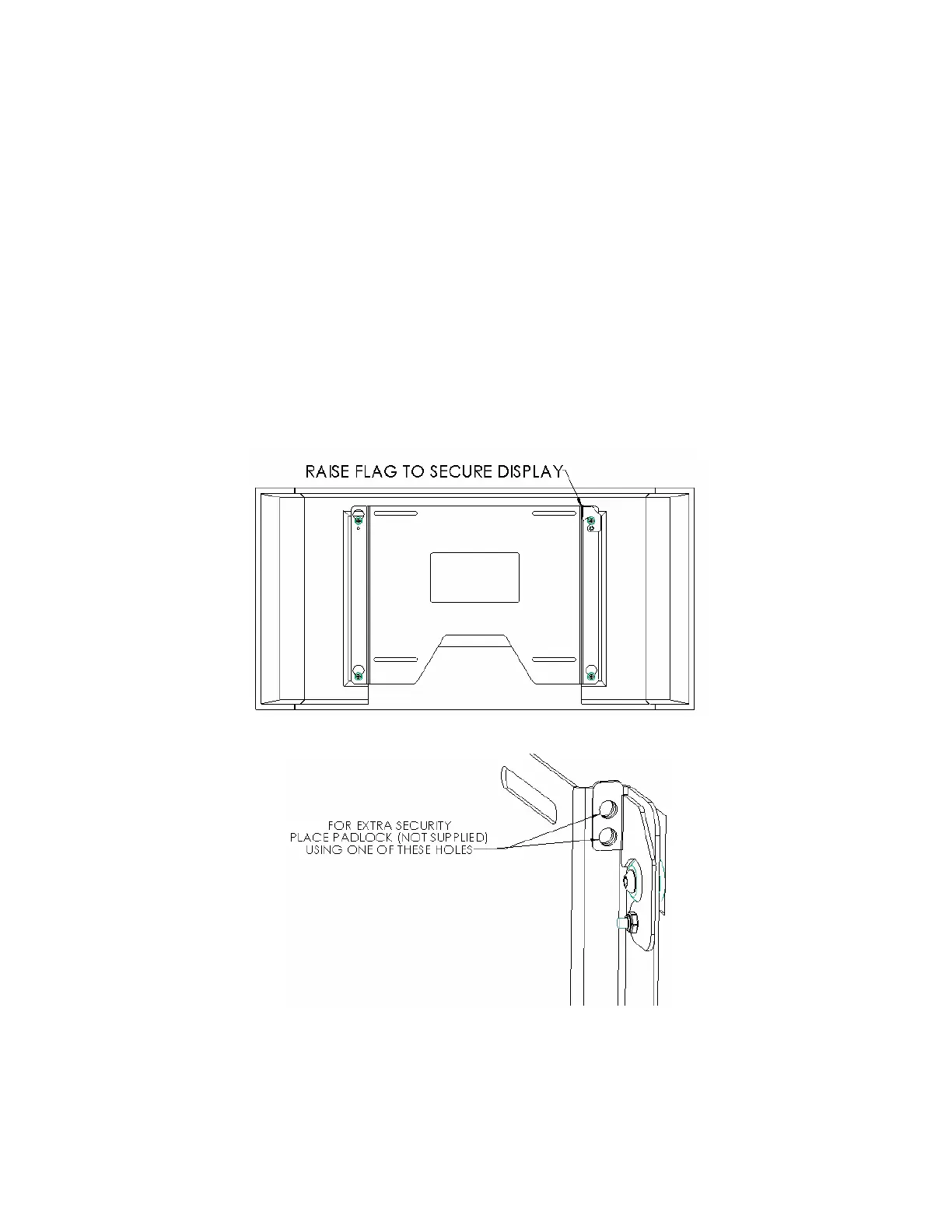

6. Position (raise) the flag to secure the display. Use padlock (not supplied) to secure flag to

mount if needed (see Figure 6).

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING FOUR

TIMES THE COMBINED WEIGHT OF ALL COMPONENTS

PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT

SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE

REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS 1

POUNDS (

79.38

KG).

Figure 5

WARNING

Figure 6

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	PSM2124
Sertifisering:	TUV, UL
Kompatibilitet:	Flatskjerm
Maksimal skjermstørrelse:	65 "
Minimum skjermstørrelse:	32 "
Produktfarge:	Sort
Skjermstørrelsekompabilitet:	32 - 65 "
Kroppsmateriale:	Metall
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	79.4 kg
