Side 1/2

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8805-000186

1-800-582-6480 952-894-6280 FAX 952-894-6918 2006 Chief Manufacturing

8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 06/06

FLAT PANEL DISPLAY STATIC MOUNT

PSM-2128

(1) LCD Display Static Mount (1) 10-24 x .5 Phillips Flat Head Screw

(1) Latching Flag (1) Nylon Washer

(4) M6 x 25mm Phillips Head Cap Screws (1) 10-24 Nylock Nut

(4) Mounting Buttons-

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

Flat Panel Displays are Extremely Fragile.

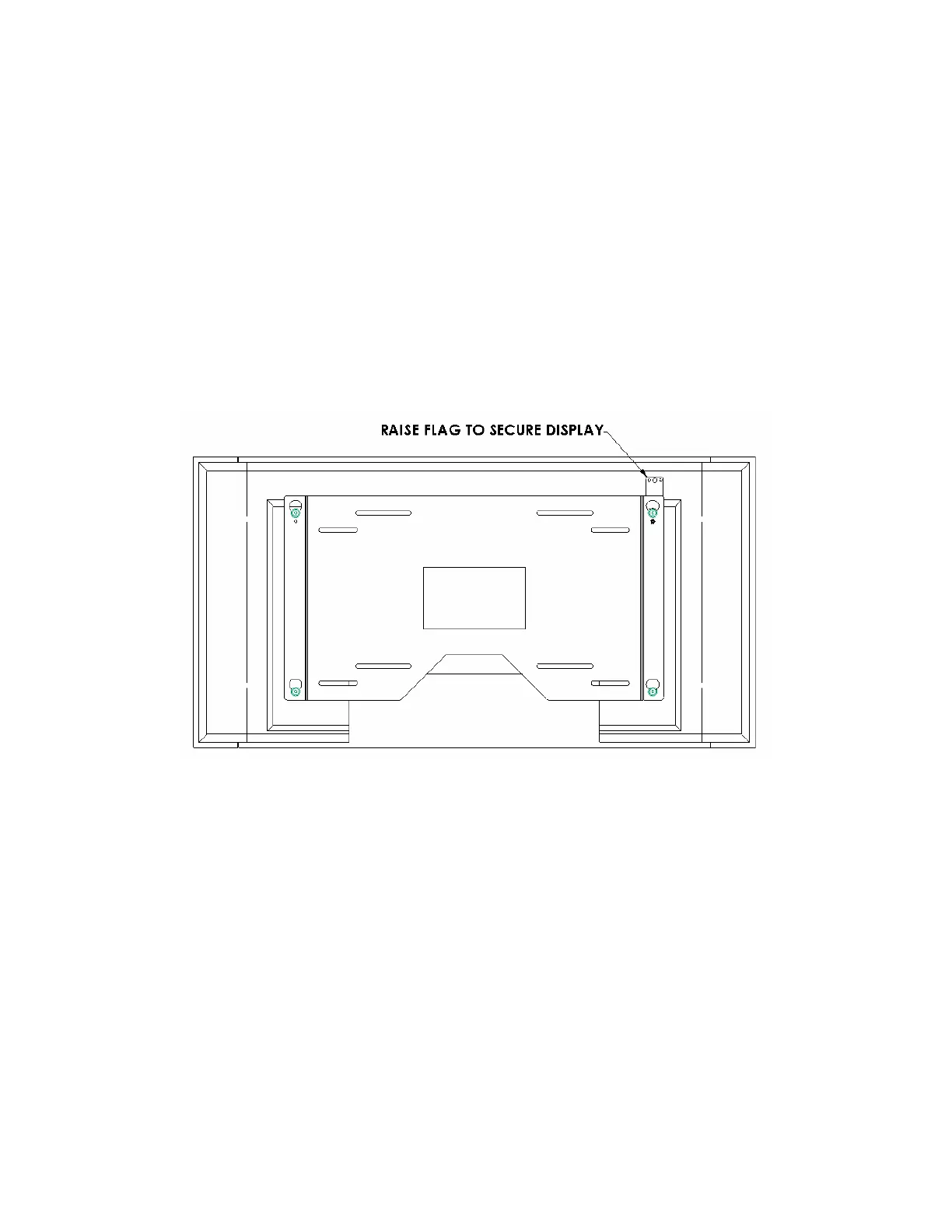

1. Attach latching flag to mount using the 10-24 Phillips flat head screw, Nylon washer, and

Nylock nut (see Figure 2). Tighten until friction will hold the flag in place.

2. Attach mounting buttons to display using the M6 screws provided (see Figure 3 & Figure 4).

CAUTION!

Figure 2

Figure 1

Figure 4

Figure 3

M6 SCREW

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	PSM2133
Produktfarge:	Sort
Skjermstørrelsekompabilitet:	16 - 65 "
Kroppsmateriale:	Metall
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	79.38 kg
