Side 1/7

I N S T A L L A T I O N I N S T R U C T I O N S

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Large Flat Panel Static Wall Mount

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

PSMH2841

PSMH2841 Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support a minimum of 2,000lbs (907.185kg). Reinforce

the structure as required before installing the component.

The wall to which the mount is being attached may have a

maximum drywall thickness of 5/8" (1.6cm).

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached to the PSMH-2841 mount does not

exceed 275 lbs (124.74 kg).

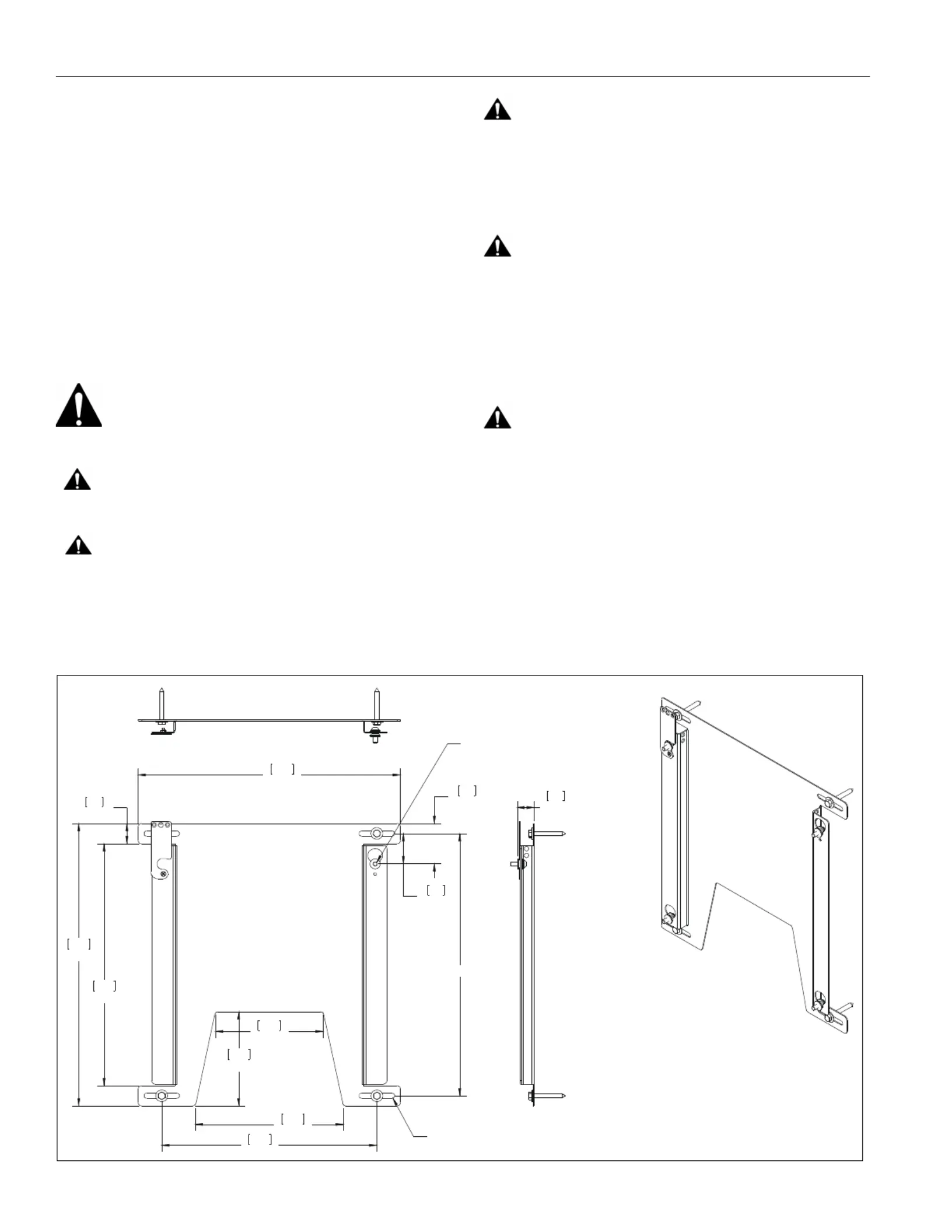

DIMENSIONS

3.00

2.25

19.50

21.00

533

18.00

457

1.50

19.50

495

7.00

178

16.00

406

11.00

279

8.00

203

.39" X 2.25" SLOT

MOUNTING HOLE IN

BACK OF DISPLAY

1.25

ADDED DEPTH

Installation Instructions PSMH2841

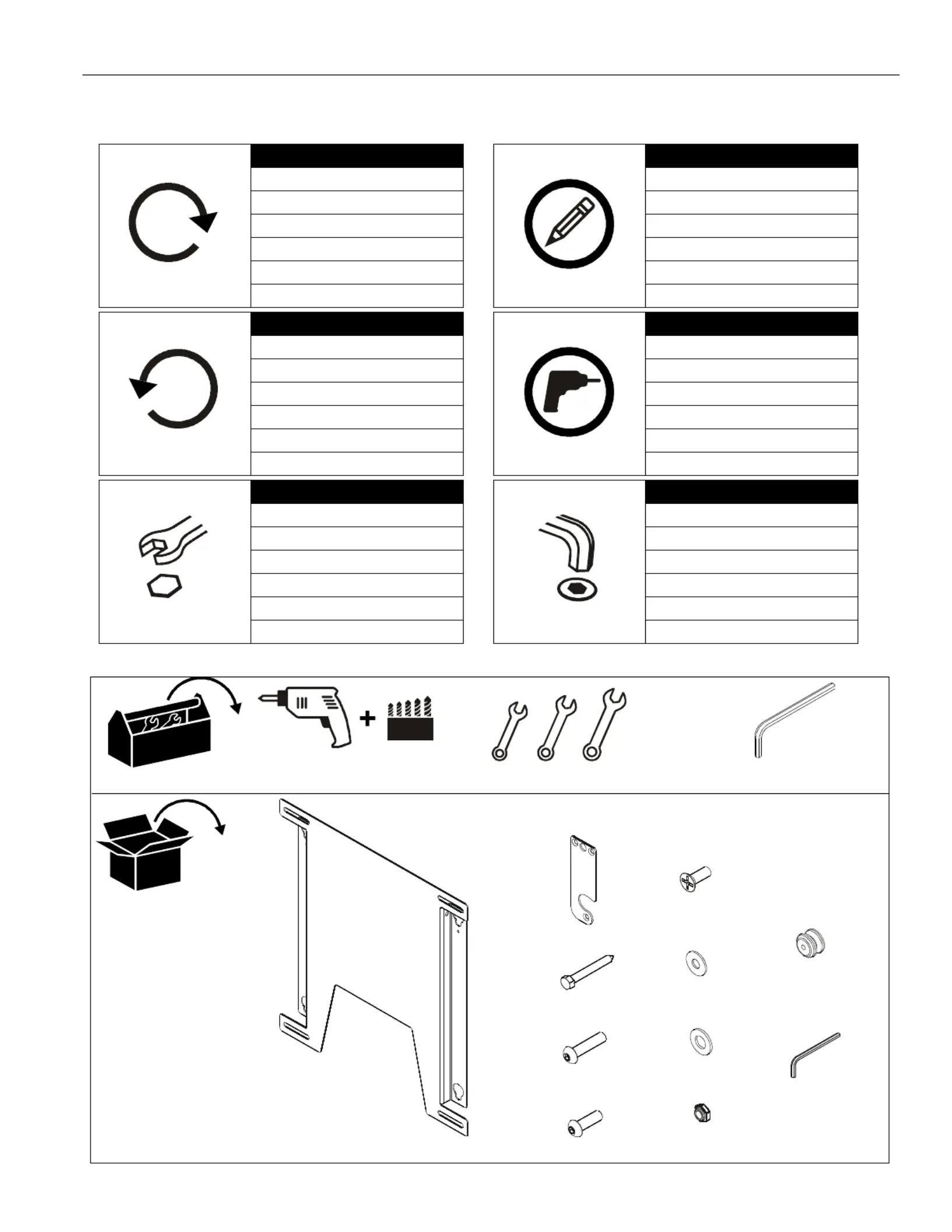

LEGEND

TOOLS FOR INSTALLATION/PARTS

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Open-Ended Wrench

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Hex-Head Wrench

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

7/32"

1/2"

M5 (included)

A (1)

[static mount]

B (1)

[mounting button]

C (4)

5/16-20 x 2 1/2"

D (4)

M8 x 35mm

E (4)

M8x 25mm

F (1)

#10-24 x 1/2"

G (4)

5/16"

H (1)

.194x.375x.032

J (1)

L (1)

#10-24"

K (4)

[latching flag]

Produkspesifikasjoner

Merke:	Chief
Kategori:	Flatpanelstøtte
Modell:	PSMH2841
Bredde:	495 mm
Dybde:	32 mm
Høyde:	533 mm
Kompatibilitet:	TV
Maksimal skjermstørrelse:	103 "
Minimum skjermstørrelse:	65 "
Produktfarge:	Sort
Skjermstørrelsekompabilitet:	65 - 103 "
Harmonisert system (HS)-kode:	85299097
Kroppsmateriale:	Metall
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	124.7 kg
Distanse til vegg (min.):	31.8 mm
