I N S T A L L A T I O N I N S T R U C T I O N S
TRUSS/POLE KIT
TPK-3
The TPK-3 includes four clamps for 0” – 1” OD round or square poles.
WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY!
When mounting Chief Manufacturing accessories, the structural system and mounting method
MUST be capable of supporting 5 times the combined weight of the total installation.
The maximum weight to be installed on the clamps is 150 pounds (68.04Kg) for the set.
Unpack and check contents:
(4) CLAMP, 0” – 1”
(8) BOLT, hex head, tap, 3/8-16 X 1 1/4”
(8) WASHER, flat, 3/8”

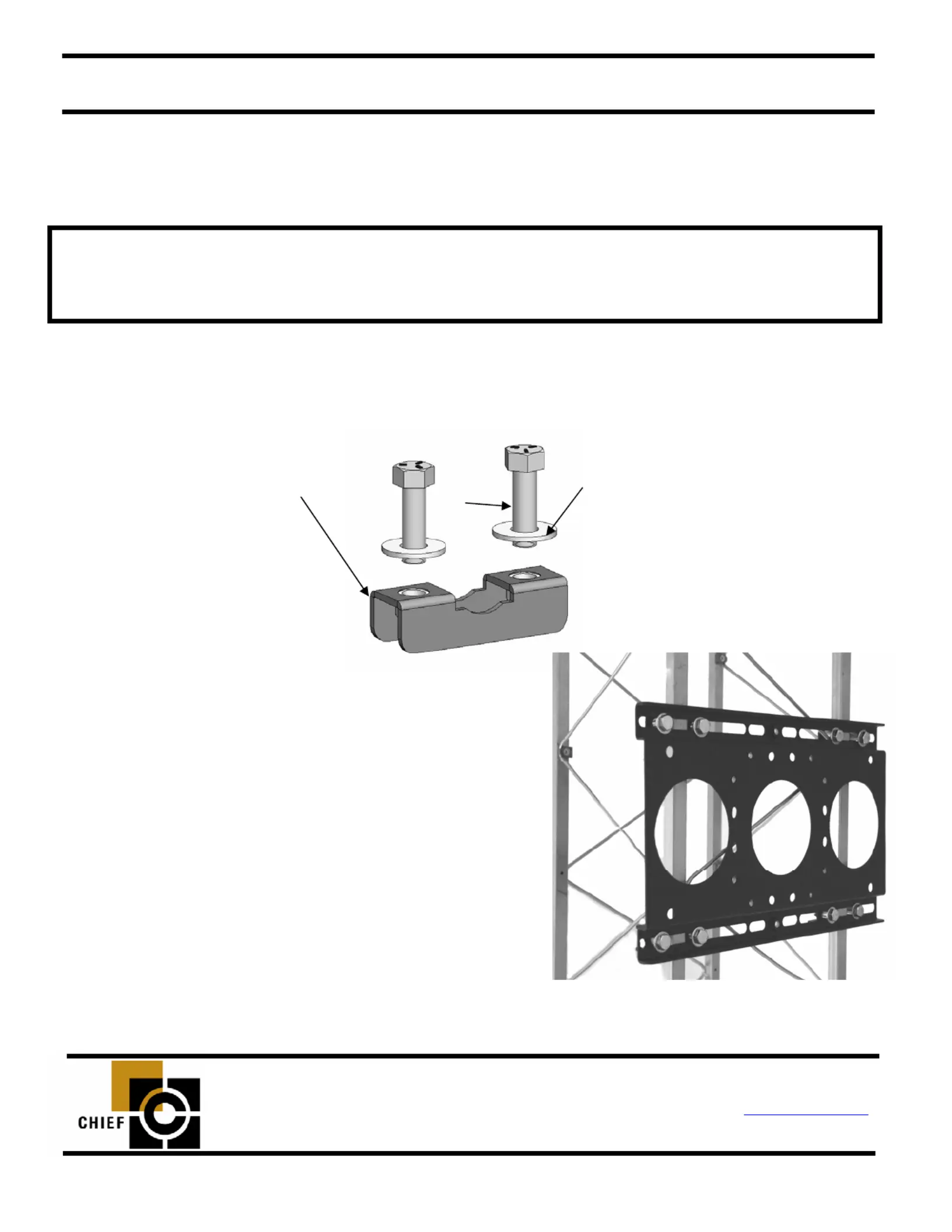

Figure 1. TPK-3
1. Place clamp (see Figure 1) on truss or pole (see Figure 2).
2. Using two 3/8-16 X 1 1/4” hex head bolts and 3/8” at
washers, secure clamp to device being
mounted (SEE WARNING ABOVE).
3. Repeat Step 1 and Step 2 for the second clamp.
4. Repeat Step 1 and Step 2 for the third clamp.
5. Repeat Step 1 and Step 2 for the fourth clamp.
Clamp
Bolt
Washer
Figure 2. TPK-3 Truss Mount Example
