RVCVW-73
Rear View Integration Interface for Select
Volkswagen Vehicles with MFD3 RNS315 & RNS510 Navigation System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0205211 of 3
- Automacally switches to Rear-view when car is in Reverse mode.
- Aermarket Rear-view Camera included.
- OBD coder for single acvaon included.
- Plug & Play Installaon.
PRODUCT FEATURES:
PARTS INCLUDED:
RVCVW-73 Module RVCVW-73 Harness OBD II Coder
Power Down Circuit CUL-03 Camera
GROUND
RED Wire Tape O
(Not Used)
FACTORY
RADIO
12-PIN
(male plug)
26-PIN
(female plug)
NAV
MUTE
SETUP
BAND
MEDIA
PHONE
i
VIDEO
CONNECTION
INTERFACE
THIN RED
WIRE
LIP MOUNT
CAMERA
(included in kit)
Power Down
Circuit
BLACK Wire
RED Wire
GREEN Wire
Reverse Power Output
(+12V 2 Amps)
To +12V Constant
(behind radio)
Ground
BLACK Wire
Factory Reverse
Light +12V
YELLOW Wire
RED Wire
Reverse Trigger input

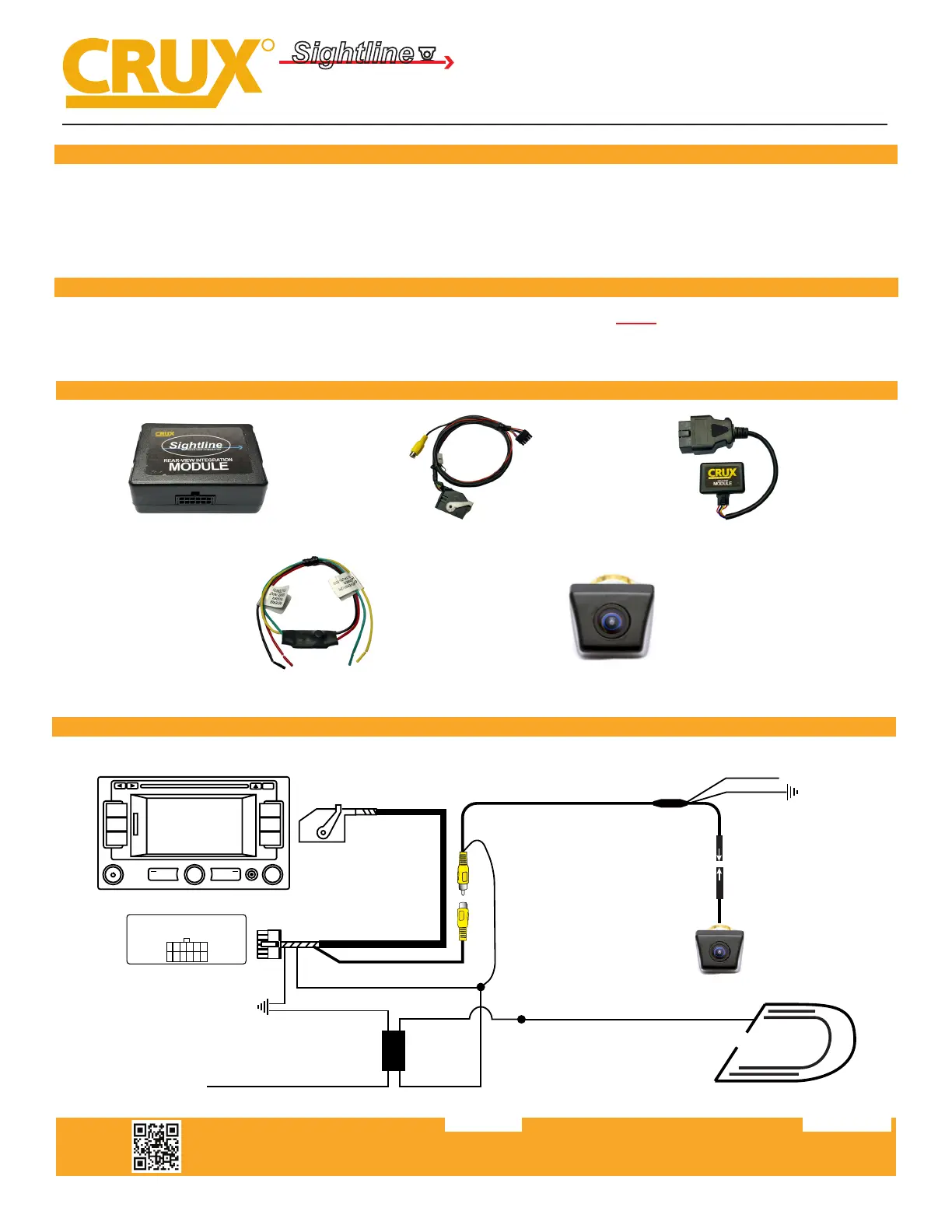

INSTALLATION DIAGRAM:
SPECIAL NOTE:
In the event this unit is to be returned for any reason, the customer must “decode” the radio before
doing so to receive a replacement or refund. See instructions on page 2 on how to decode the radio.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0205212 of 3
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCVW-73
Rear View Integration Interface for Select
Volkswagen Vehicles with MFD3/RNS315/RNS510 Navigation System
INSTALLATION INSTRUCTIONS:
CODING THE RADIO FOR A BACKUP CAMERA
1. Locate the vehicle’s OBD II port usually located under the steering column.
2. Enter the vehicle and CLOSE ALL DOORS.
3. Turn the key to the ON posion.
4. Plug in the OBD coder from the RVCVW-73 kit to the ODB II port.
5. Wait for the OBD coder to nish coding the radio and give a solid GREEN LED. (See chart below)
6. The radio may ash a few me during this process. It can take around 5 seconds to complete the
coding process. If an error occurs, retry the coding procedure.
7. A solid RED LED means that the radio has been decoded. Repeat the process to get a solid GREEN LED.
8. Aer the coding is complete, disconnet the OBD coder and store in a safe place. This OBD coder is VIN
specic and will only work on this vehicle.
9. Unplug the radio power connector for 5 seconds and plug it back in.
10. Put the gear in reverse to test for camera funconality.
In order for the vehicle to recognize the camera and engage it when in reverse gear, the vehicle must be
coded. Use the ODB II coder included in the RVCVW-73 kit.

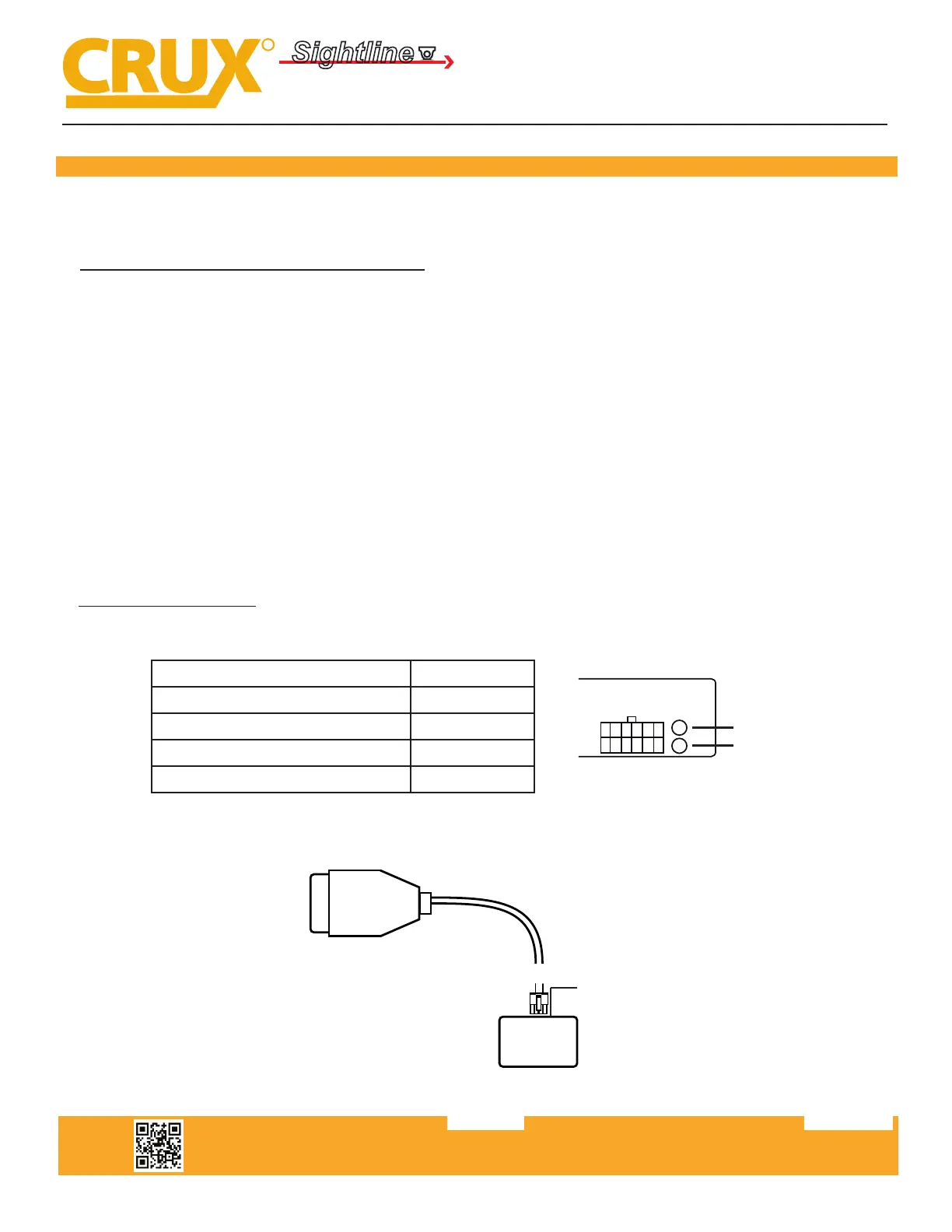

Reading the LED color paern:
Flashing LED Coding Vehicle
Solid Green LED Acvated
Solid Red LED Deacvated
Solid Red & Green LED Error
INTERFACE
GREEN LED
RED LED
8-PIN
(male plug)
LED
(indicator)
OBD CODER
DECODING THE RADIO
To decode the radio, repeat the steps above.
