Side 1/259

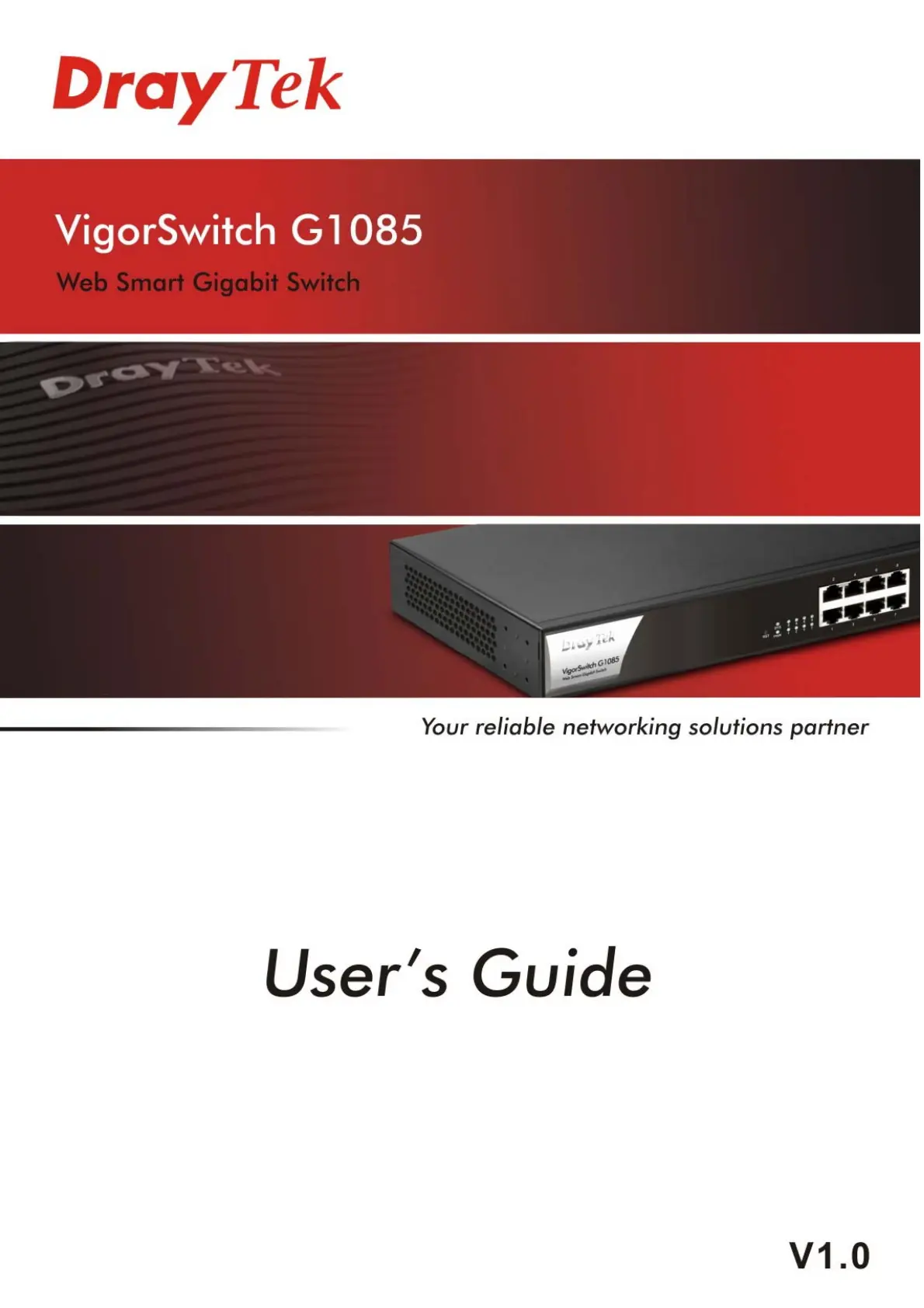

VigorSwitch G1085

Web Smart Gigabit Switch

User’s Guide

Version: 1.0

Firmware Version: V2.5.1

(For future update, please visit DrayTek web site)

Date: December 25, 2019

VigorSwit

ch G1085 User’s Guide

Copyrights

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without

written permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

 Microsoft is a registered trademark of Microsoft Corp.

 Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8, 10 and Explorer are trademarks of Microsoft Corp.

 Apple and Mac OS are registered trademarks of Apple Inc.

 Other products may be trademarks or registered trademarks of their respective manufacturers.

Caution

Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather

conditions or walking across a carpeted floor may cause you to acquire a static electrical charge.

To protect your device, always:

 Touch the metal chassis of your computer to ground the static electrical charge before you pick up the circuit

device.

 Pick up the device by holding it on the left and right edges only.

Warranty

We warrant to the original end user (purchaser) that the device will be free from any defects in workmanship or

materials for a period of one (1) year from the date of purchase from the dealer. Please keep your purchase

receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at

our discretion, repair or replace the defective products or components, without charge for either parts or labor,

to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement

will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely

at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an

act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed

software of other vendors. Defects which do not significantly affect the usability of the product will not be

covered by the warranty. We reserve the right to revise the manual and online documentation and to make

changes from time to time in the contents hereof without obligation to notify any person of such revision or

changes.

Be a Registered Owner

Web registration is preferred. You can register your Vigor router via http://www.DrayTek.com.

Firmware & Tools Updates

Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the

DrayTek web site for more information on newest firmware, tools and documents.

More update, please visit www.draytek.com.

VigorSwitch

G1085 User’s Guide

iii

Produkspesifikasjoner

Merke:	Draytek
Kategori:	Bryter
Modell:	VigorSwitch G1085
Vekt:	1830 g
Bredde:	330 mm
Dybde:	230 mm
Høyde:	44 mm
LED-indikatorer:	Ja
Strømforbruk (maks.):	9 W
Sertifisering:	CE, FCC
Nettverksstandard:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Virtuelle LAN-funksjoner:	MAC address-based VLAN, Voice VLAN
10G støtte:	Nei
Antall VLAN:	256
Multicast-støtte:	Ja
Portspeiling:	Ja
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Jumbo rammer:	9000
Køplanleggingsalgoritmer:	SPQ, Weighted Round Robin (WRR)
Produktfarge:	Sort, sølv
Kabler inkludert:	AC
Driftstemperatur (T-T):	0 - 45 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 70 °C
Lagringsrelativ fuktighet:	5 - 90
Hurtigstartsguide:	Ja
Formfaktor:	1U
Quality of Service (QoS) støtte:	Ja
tilbakestillingsknapp:	Ja
Sikkerhetsalgoritmer:	SNMP, SNMPv3
Relativ luftfuktighet under drift (H-H):	10 - 90
Rack-montering:	Ja
Ledelsesprotokoller/håndteringsprotokoller:	HTTP, HTTPS, Telnet, SSH, OpenVPN Client, SNMPv1, SNMPv2c, SNMPv3, LLDP
Svitsjtype:	Håndtert
Webbasert administrasjon:	Ja
Antall Basic switching RJ-45 Ethernet-ports:	8
Basic switching RJ-45 Ethernet ports-type:	Gigabit Ethernet (10/100/1000)
Størrelse på adressetabell:	8000 oppføringer
Ruting/svitsjekapasitet:	16 Gbit/s
Strømforsyning medfølger:	Nei
Strøm over Ethernet (PoE):	Nei
IGMP-snooping:	Ja
Jumbo Frames-støtte:	Ja
VLAN støtte:	Ja
Videresendingshastighet:	11.9 Mpps
Strømtilkobling:	AC-inn-jack
Rack-montert sett:	Ja
Omfangsbegrensning:	Ja
Linkaggregasjon/Linksamling:	Ja
Kringkasting stormkontroll:	Ja
Loop beskyttelse:	Ja
Trafikk forming:	Ja
