Side 1/83

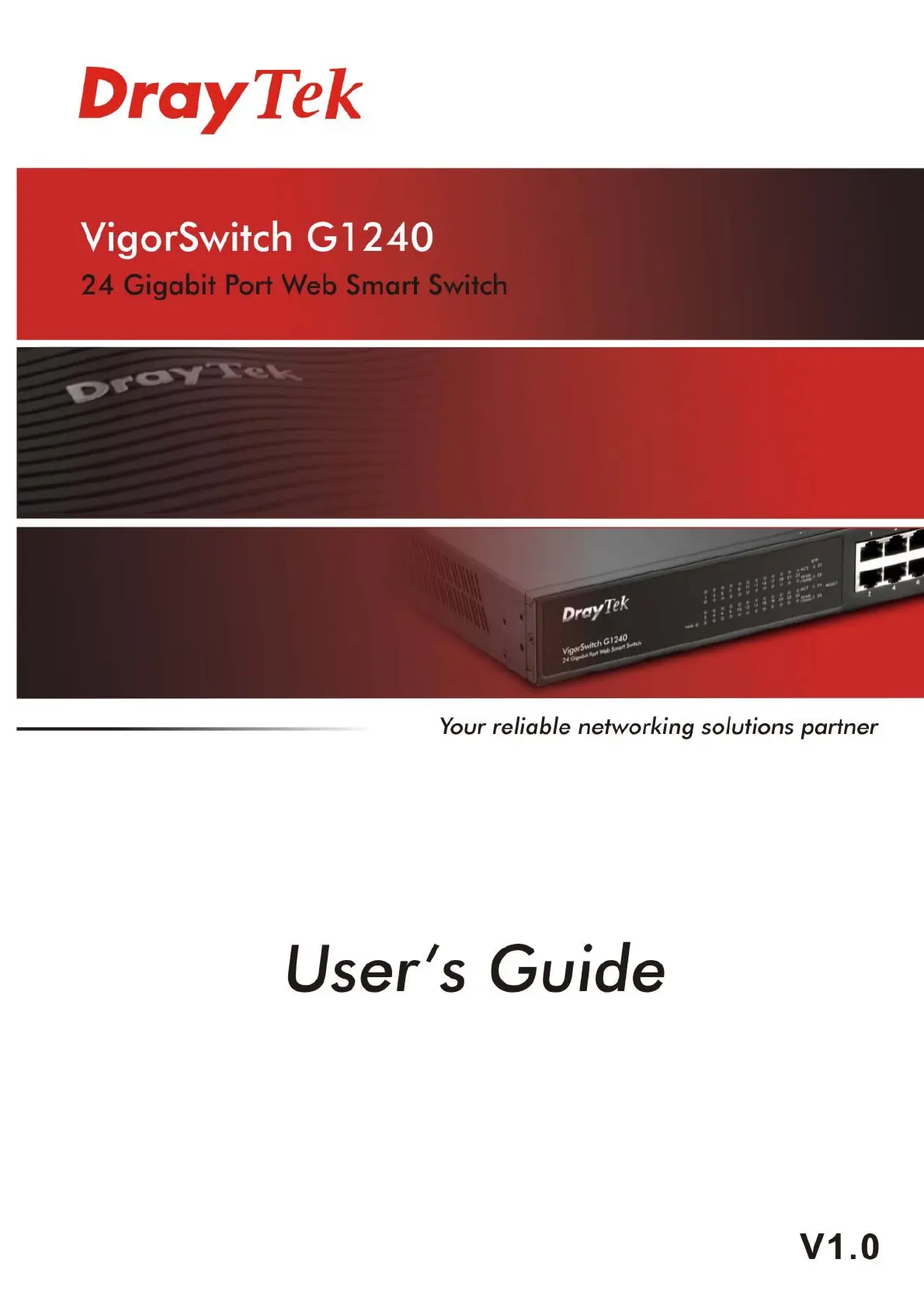

VigorSwitch G1240 User’s Guide

VigorSwitch G1240

24 Gigabit Port Web Smart Switch

User’s Guide

Version: 1.0

Firmware Version: V1.47

Date: 05/09/2011

VigorSwitch G1240 User’s Guide

iii

Declarations

protected by copyright. No part may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language without written

permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

z Microsoft is a registered trademark of Microsoft Corp.

z Windows, Windows 95, 98, Me, NT, 2000, XP and Explorer are

trademarks of Microsoft Corp.

z Apple and Mac OS are registered trademarks of Apple Inc.

z Other products may be trademarks or registered trademarks of their

respective manufacturers.

Caution and Electronic Emission Notices

Caution

Circuit devices are sensitive to static electricity, which can damage their delicate

electronics. Dry weather conditions or walking across a carpeted floor may cause you

to acquire a static electrical charge.

To protect your device, always:

z Touch the metal chassis of your computer to ground the static electrical charge

before you pick up the circuit device.

z Pick up the device by holding it on the left and right edges only.

Warranty

We warrant to the original end user (purchaser) that the device will be free from any

defects in workmanship or materials for a period of one (1) years from the date of

purchase from the dealer. Please keep your purchase receipt in a safe place as it

serves as proof of date of purchase. During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty workmanship

and/or materials, we will, at our discretion, repair or replace the defective products or

components, without charge for either parts or labor, to whatever extent we deem

necessary tore-store the product to proper operating condition. Any replacement will

consist of a new or re-manufactured functionally equivalent product of equal value,

and will be offered solely at our discretion. This warranty will not apply if the

product is modified, misused, tampered with, damaged by an act of God, or subjected

to abnormal working conditions. The warranty does not cover the bundled or licensed

software of other vendors. Defects which do not significantly affect the usability of

the product will not be covered by the warranty. We reserve the right to revise the

manual and online documentation and to make changes from time to time in the

contents hereof without obligation to notify any person of such revision or changes.

Be a Registered

Owner

Web registration is preferred. You can register your Vigor device via

http://www.draytek.com.

Firmware & Tools

Updates

Due to the continuous evolution of DrayTek technology, all devices will be regularly

upgraded. Please consult the DrayTek web site for more information on newest

firmware, tools and documents.

http://www.draytek.com

Produkspesifikasjoner

Merke:	Draytek
Kategori:	Bryter
Modell:	VigorSwitch G1240
Vekt:	2400 g
Bredde:	442 mm
Dybde:	170.3 mm
Høyde:	44 mm
LED-indikatorer:	LAN, Link
Wi-Fi:	Nei
Sertifisering:	ROHS / CE
Nettverksstandard:	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Maksimal dataoverføringshastighet:	1 Gbit/s
10G støtte:	Nei
Multicast-støtte:	Ja
Portspeiling:	Ja
AC-inngangsspenning:	220 - 240 V
Antall ledninger:	12
Produktfarge:	Sort
Strømforbruk (vanlig bruk):	20 W
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 70 °C
Quality of Service (QoS) støtte:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
Rack-montering:	Ja
Ledelsesprotokoller/håndteringsprotokoller:	SNMP v1, v2c
Antall Basic switching RJ-45 Ethernet-ports:	24
Strømningskontroll støtte:	Ja
Størrelse på adressetabell:	8000 oppføringer
Ruting/svitsjekapasitet:	- Gbit/s
Strøm over Ethernet (PoE):	Nei
Jumbo Frames-støtte:	Ja
Støttede dataoverføringsrater:	10, 100, 1000 Mbit/s
VLAN støtte:	Ja
Bufferminne pakke:	0.5 MB
Antall SFP/SFP+ porter:	4
SFP module antall spor:	4
Kringkasting stormkontroll:	Ja
