ErgoAV ERMML1-01B Bruksanvisning
Les nedenfor 📖 manual på norsk for ErgoAV ERMML1-01B (17 sider) i kategorien veggfeste. Denne guiden var nyttig for 5 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/17
Model:
ERMML
1-01
B
Thank You for Choosing this ErgoAV Product!
At ErgoAV, we want to add value to your AV experience
by
providing the highest
quality products and services
in
the industry. If
you
have any concerns or
comments, please contact
us.
ErgoAV Customer Care
phone(877)419-7832
email: support@ergoav.com
website: .ergoav.com
address: 9501 Louisiana Ave
N,
#200, Brooklyn Park,
MN
55445

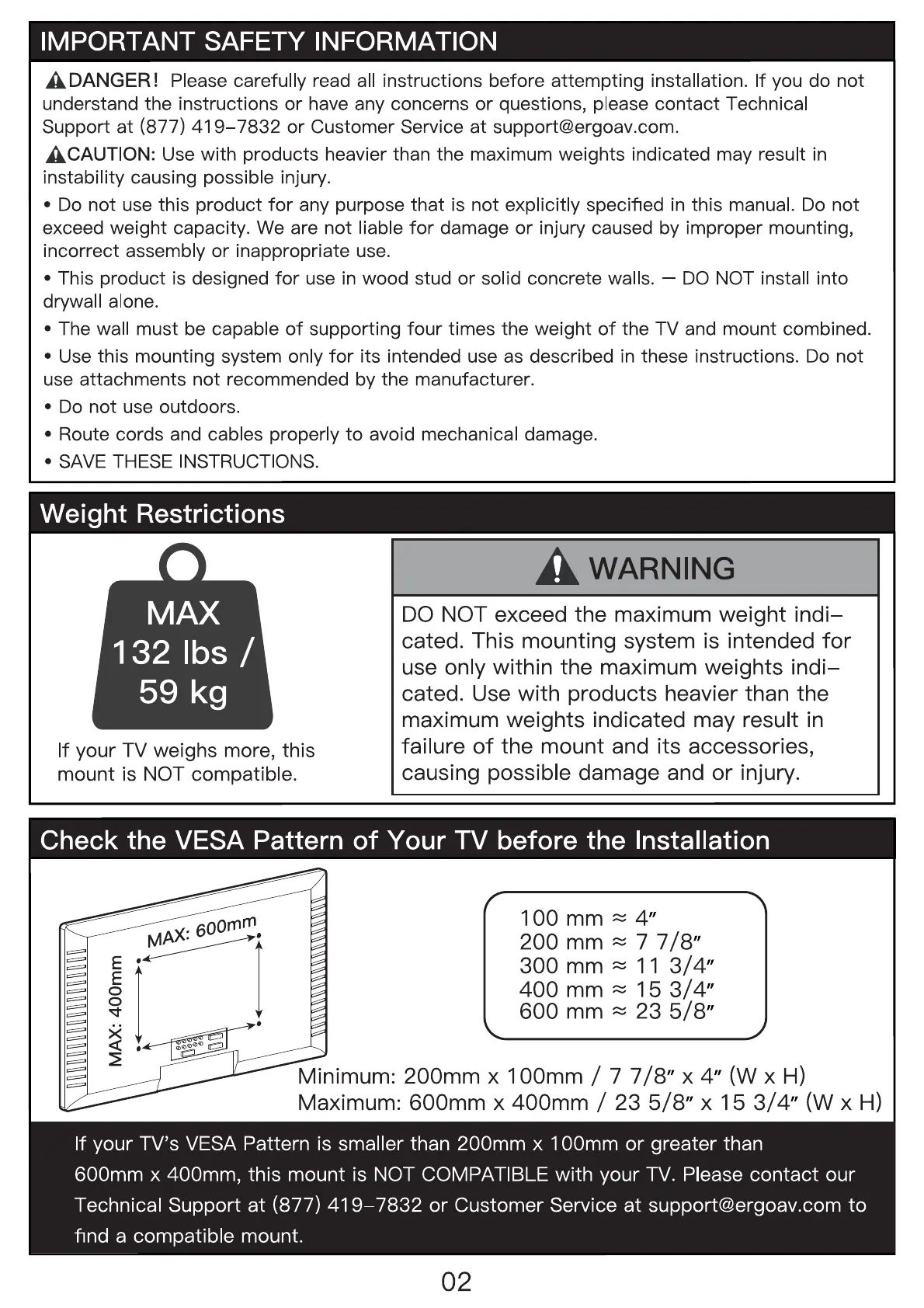

IMPORTANT SAFETY INFORMATION
ADANGER! Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns
or
questions, please contact Technical
Support at (877)
419-
7832
or
Customer Service at support@ergoav.com.
A CAUTION: Use with products heavier than the maximum weights indicated may result
in
instability causing possible injury.
•
Do
not use this product
for
any purpose that is not explicitly specified in this manual.
Do
not
exceed weight capacity. We are not liable
for
damage
or
injury caused by improper mounting,
incorrect assembly or inappropriate use.
• This product is designed
for
use in wood stud or solid concrete walls. -
DO
NOT install into
drywall alone.
• The wall must be capable
of
supporting
four
times the weight
of
the TV and mount combined.
• Use this mounting system only
for
its intended use as described in these instructions.
Do
not
use attachments not recommended by the manufacturer.
•
Do
not use outdoors.
• Route cords and cables properly
to
avoid mechanical damage.
•
SAVE
THESE INSTRUCTIONS.
Weight Restrictions
-
MAX
132
lbs/
59
kg
If
your
TV
weighs
more,
this
mount
is NOT
compatible.
WARNING
DO
NOT exceed the maximum weight
indi-
cated. This mounting system is intended
for
use only within the maximum weights
indi-
cated. Use with products heavier than the
maximum weights indicated may result in
failure
of
the mount and its accessories,
causing possible damage and or injury.
Check the VESA Pattern of Your TV before the Installation
100
mm~
4"
200 mm
~
7 7
/8
"
300 mm
~
11
3/4
"
400
mm~
15
3/4
"
600 mm
~
23
5/8
"
Minimum: 200mm x 100mm / 7 7
/8
" x 4" (W x
H)
Maximum: 600mm x 400mm / 23
5/8
" x 15
3/
4" (W x
H)
02
Verify Your Wall Construction
CAUTION
DO
NOT
install into
drywall alone.
Wood Studs
(with Drywall)
Tools Needed (Not Included)
Solid Concrete
Wall
/
Stud Finder Awl Tape Measure Pencil
If you are not sure
of
the wall construction,
please contact
Technical Support
at
(877)
419-7832
or
Customer Service at
support@ergoav.com
to
find a compatible
mount.
Electric
Drill Level
/
~
I
(Needed
for
concrete installs)
//
7
/32
" (5.5mm) 1
/2
" (
13mm)
Wood
Drill
Bit
Socket
Wrench
Phillips
Screwdriver
3/8
" (
10mm)
Concrete
Drill
Bit
Hammer
-----------
Supp
Ii
e d Parts and Hardware
A
WARNING:
This
product contains
small
items
that
could
be
a
choking
hazard
if
swallowed.
Before starting assembly, verify all parts are included and undamaged.
Do
not use
damaged or defective parts. If you need replacement parts, please contact Technical
Support at (877)
419-
7832 or Customer Service at support@ergoav.com.
• NOTE: Not all hardware included
in
this package will be used.
Supplied Parts and Hardware for Step 1
Washers
~
~
~~
TV Bracket
ml
x2
Spacers
: NOTE: The spacers shown are actual size. :
I_
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ I
M6 /
MB
[8] x 4
L2.5mm
[E1] x 8
03
L10mm
[E2] x 4
L22mm
[E3] x 4
