Flat Screen Wall Mount | Tilt

TH-3065-LPT

Component Checklist

IMPORTANT INFORMATION

Step 1. Check Components

! IMPORTANT Install Telehook TH-3065-LPT Wall Mount as per the Installation Instructions

! This product supports a maximum load of 40Kg (88 lbs).

! This product only supports displays with mounting hole conﬁ gurations from 100mm x 100mm (min.) to 600mm x 400mm (max.).

! The manufacturer does not accept responsibility for incorrect installation.

! Before installing this Telehook product, please check the display ventilation requirements with your LED/LCD manufacturer.

Check you have received all parts by comparing supplied parts against the Component Checklist and Hardware lists above.

Tilt Bracket (x2)

Wall Plate

End Cap (x2)

M4x12/25

(x4 each)

M5x12/25

(x4 each)

M6x12/25

(x4 each)

M8x16/25

(x4 each)

Spacer

(x4 each)

Multi

Washer

(x4 each)

Coach

Screw

(x4 each)

Nylon

Anchor

(x4 each)

Washer

(x4 each)

Wall Mounting HardwareTools Required Display Mounting Hardware

• Power Drill

• Phillips Head

Screwdriver

• 5mm (

”) Drill Bit

• 10mm (

”)

Masonry Drill Bit

• 13mm (

”) Socket

Wrench or Shifter

Masonry Wall Timber Stud

5mm

(

”

)

50mm (2”)

Stud

10mm

(

”)

58mm

(2.3”)

Wall

Tip: Use the supplied magnetic bubble level

to ensure wall plate is horizontal.

Note: Use a stud ﬁ nder to accurately locate the centre of each

stud. Ensure that all four screws are ﬁ xed securely into the studs.

10mm (

”) hole

5mm (

”) hole

Step 2. Mount the Wall Plate

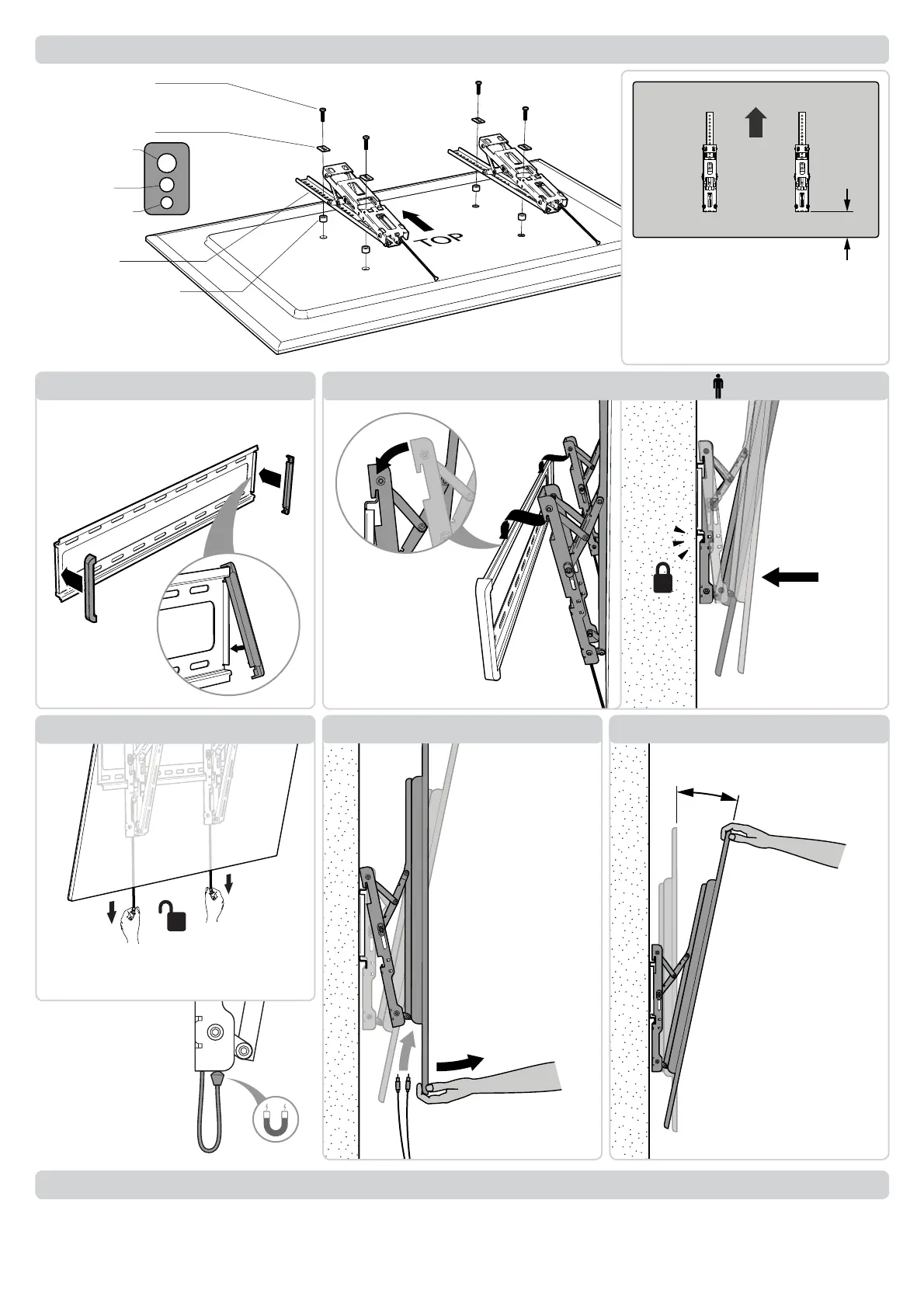

Installation Instructions

Produkspesifikasjoner

Merke:	Atdec
Kategori:	veggfeste
Modell:	TH-3065-LPT
Maksimal skjermstørrelse:	65 "
Minimum skjermstørrelse:	32 "
Høydejustering:	Nei
Produktfarge:	Sort
Kroppsmateriale:	Stål
Panelmonterbart grensesnitt:	100 x 100,100 x 150,100 x 200,120 x 120,120 x 180,200 x 100,200 x 200,200 x 150,200 x 300,200 x 400,280 x 150,300 x 200,300 x 400,300 x 300,300 x 100,360 x 304,400 x 200,400 x 400,400 x 100,400 x 300,400 x 600 mm
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	40 kg
Monteringsgrensesnitt, kompatibilitet (min):	100 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks):	400 x 600 mm
