Side 1/20
TV WALL MOUNT
RF-TVMLPT03V2/RF-TVMLPT03V2-C
ASSEMBLY GUIDE
Safety information and specifications......................2
Tools needed......................................................................3
Package contents.............................................................3
Installation instructions .................................................5
For wood-stud and concrete
wall installations
Before using your new product, please read these instructions to prevent any damage.
2
Need help? Call 1-800-620-2790 (U.S. and Canada)
Safety information and specifications
IMPORTANT
SAFETY
INSTRUCTIONS
- SAVE THESE
INSTRUCTIONS
CAUTION: Do not use this
product for any purpose not
explicitly specified by
Rocketfish.
Improper installation may
cause property damage or
personal injury. If you do
not understand these
directions, or have doubts
about the safety of the
installation, contact Customer Service or call a qualified contractor. Rocketfish is not
responsible for damage or injury caused by incorrect installation or use.
The weight of your TV must not exceed 130 lbs. (58.9 kg). The wall must be
capable of supporting five times the weight of your TV and wall mount
combined.
This product contains small items that could be a choking hazard if
swallowed. Keep these items away from young children!
Maximum TV weight: 130 lbs. (58.9 kg)
Screen size: 32" to 70" diagonal
Overall dimensions (H × W × D):
17.4 x 28.5 x 2 in. (44.2 x 72.3 x 5 cm)
Wall-mount weight: 6 lbs. (2.7 kg)
We’re here for you
www.rocketfishproducts.com
For customer service, call:
1-800-620-2790 (U.S. and Canada)
17.4" (44.2 cm)
28.5" (72.3 cm)
3
Need help? Call 1-800-620-2790 (U.S. and Canada)
TV WALL MOUNT RF-TVMLPT03V2/RF-TVMLPT03V2-C

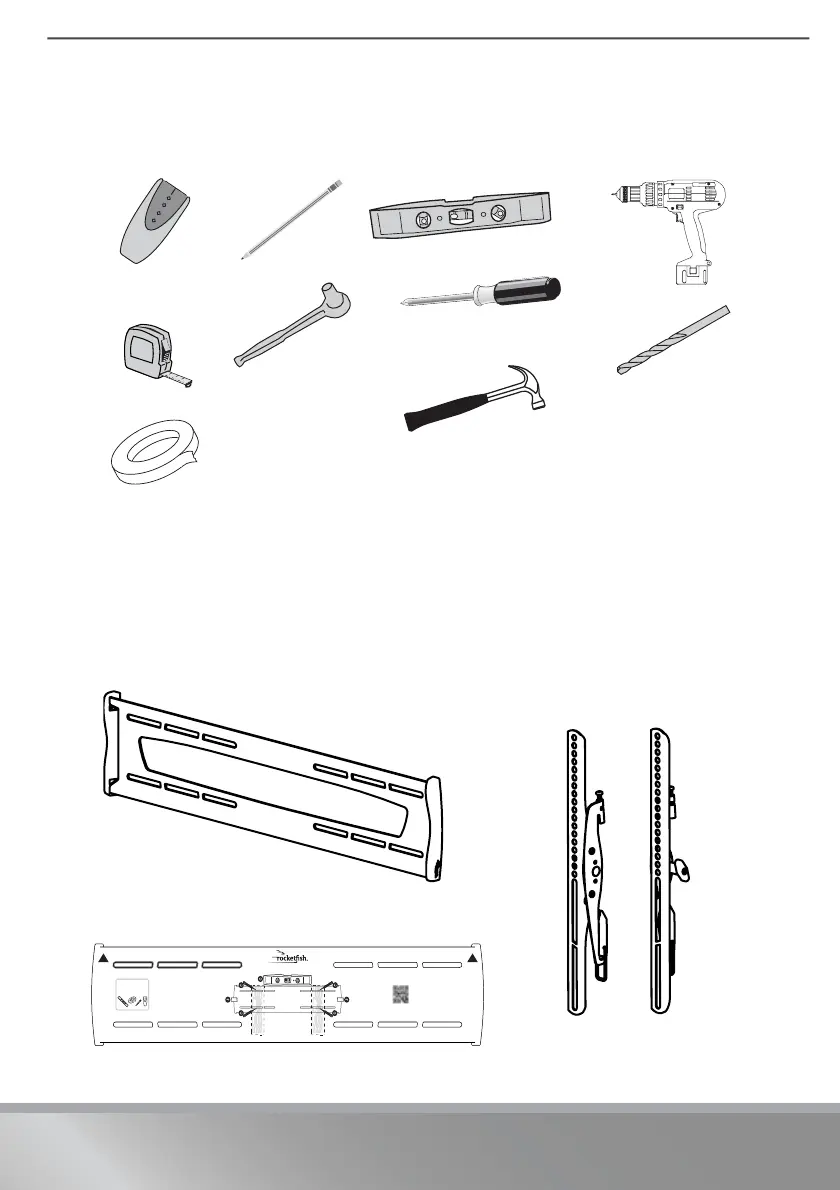

Tools needed
You will need the following tools to assemble your new TV wall mount:
Package contents
Make sure that you have all the hardware necessary to assemble your new TV wall
mount:
Edge-to-edge
stud finder
Pencil
Level
Phillips screwdriver
Socket wrench with
1/2" (13 mm) socket or
adjustable wrench
Measuring tape
Drill
Tape
Hammer
7/32" (5.5 mm) wood drill bit
for wood stud wall
OR
3/8" (10 mm) masonry drill
bit (concrete only)
Top
Dessus
Parte superior
Top
Dessus
Parte superior
RF-TVMLPT03V2 Template • Gabarit • Plantilla
Note: For wood frame installations, use a stud nder to
locate wood studs rst.
Remarque : Pour une construction à ossature de bois,
localiser d'abord les montants en bois, à l'aide d'un
détecteur de montants.
Nota: para la instalación en construcciones de armazón
de madera, primero debe localizar las vigas de madera
con un localizador de vigas.
Need help deciding how high to mount your TV? Scan this QR code.
Besoin d'aide pour déterminer la hauteur de montage du téléviseur?
Numériser ce code QR.
¿Necesita ayuda para determinar la altura de montaje de su televisor?
Escanee este código QR.
V2 13-0197
Tools Needed
Outils nécessaires
Herramientas requeridas
C Right vertical
TV bracket (1)
B Left vertical TV
bracket (1)
A Wall plate (1)
D Template (1)
