Side 1/2

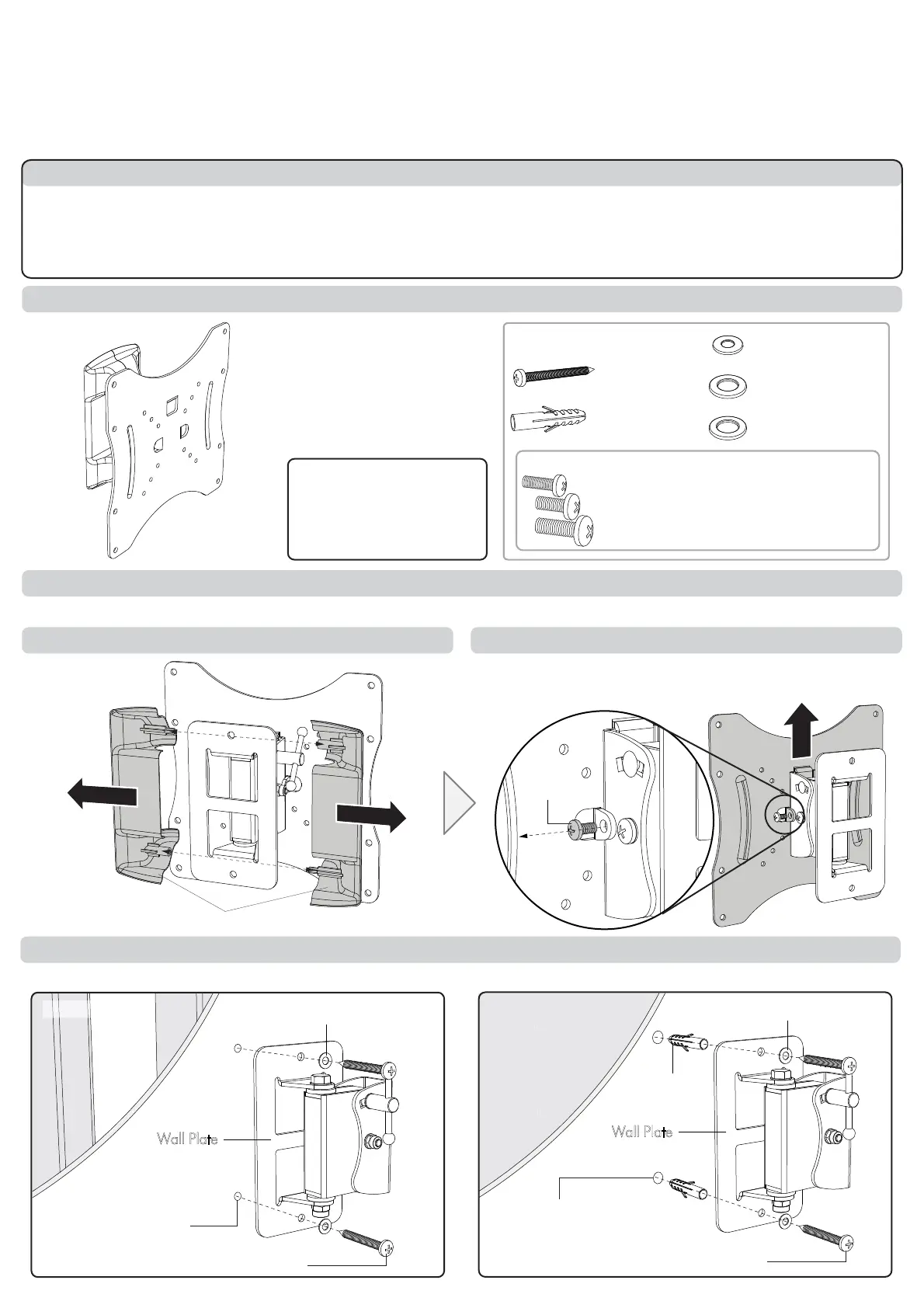

Component Checklist

Step 1. Component Checklist

Check you have received all parts against the Component Checklist above.

Hardware

Mounting Fasteners

Step 2. Remove the Wall Bracket Cover



[B] Nylon

Anchor (x2)

[C] M4 Washer (x4)

[D] M5 Washer (x4)

[A] Wall Mount

Screw (x2)

[J] M6x8mm / [K] M6x12mm (x4 each)

[F] M4x8mm / [G] M4x12mm (x4 each)

[H] M5x8mm / [I] M5x12mm (x4 each)

[E] M6 Washer (x4)

TOOLS REQUIRED:



ps Head Screw Driver



”) Drill Bit



”) Masonry Drill Bit

Remove the two Locking Screws,

on both left and right sides.

Step 3. Remove the Mounting Plate

Step 4. Fix the Wall Bracket to the Wall

Using the Wall Plate as a drilling template, choose from one of the following Mounting options, 7LPEHU6WXG250DVRQU\:DOO.

'ULOOWZRKROHVPP

GHHSZLWKDPP

GULOOELW

Masonry Wall

Nylon Anchor

(x2)

Wall Mount Screw (x2)

Wall Plate

M6 Washer (x2)

Wall Plate

Wall Mount Screw (x2)

M6 Washer (x2)

Timber Stud

'ULOOWZRKROHVPP

GHHSZLWKDPP

0DVRQU\GULOOELW

LIFT

TH-2250-VTP

(fully assembled)

IMPORTANT INFORMATION

,03257$17,QVWDOO:DOO0RXQWDVSHU,QVWDOODWLRQ,QVWUXFWLRQV

! Wall Mount supports Displays weighing up to 30kg (66lbs), with VESA hole configurations:

50x50mm, 75x75mm, 100x100mm, 200x100mm, 200x200mm.

! The Manufacturer accepts no responsibility for incorrect installation.

Cover

Locking

Screw (x2)

PULL

TH-2250-VTP

Flat Screen Wall Mount

Tilt

Installation Instructions

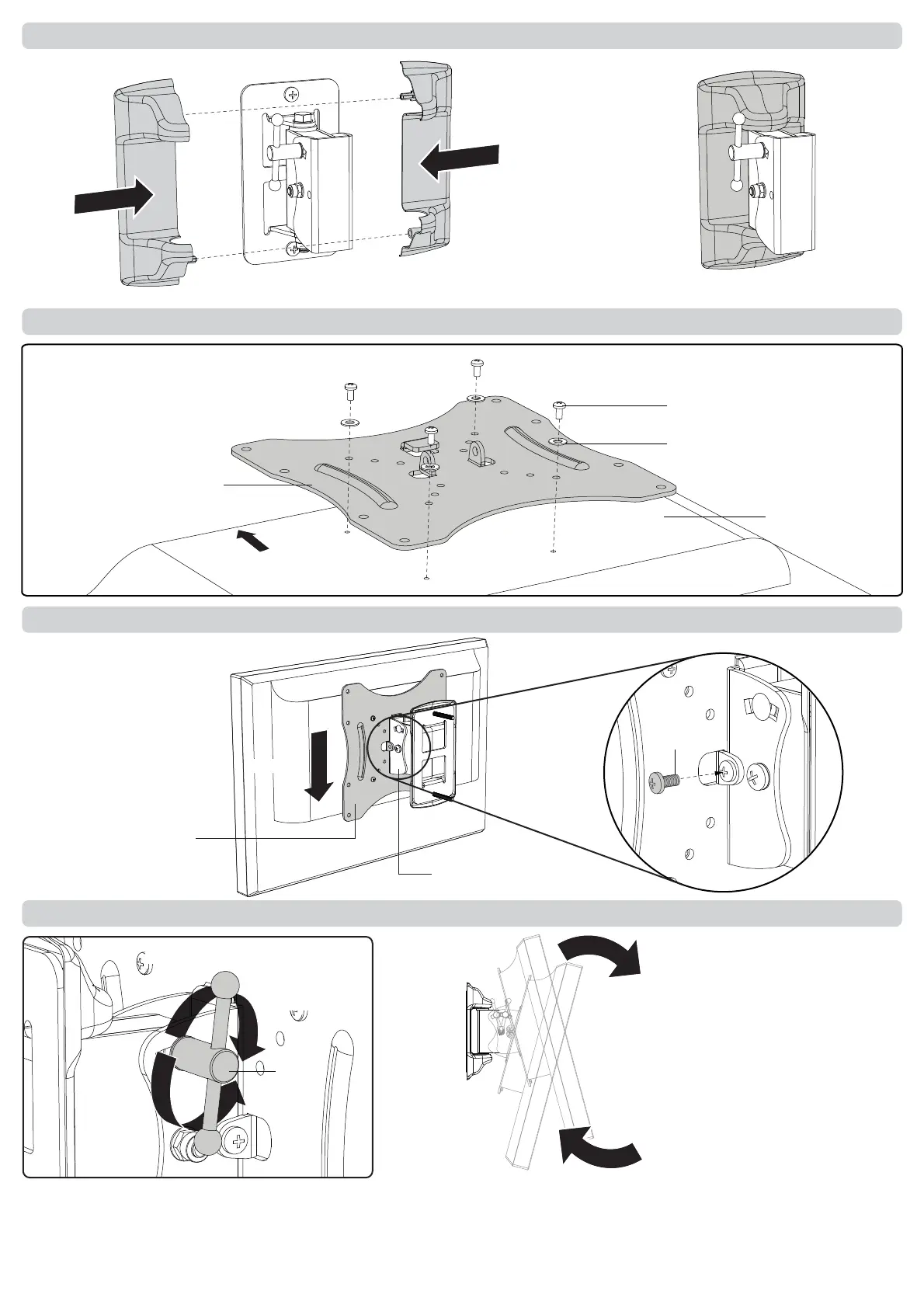

Step 6. Fasten the Mounting Plate to your Display

Mounting Screw (x4)

Choose appropriate Mounting Screws

and Washers from the Hardware

supplied to suit your Display.

Washer (x4)

Top of

Display

Mounting Plate

Step 7. Attach the Display to the Wall

Step 8. Tilt Adjustment

Locking

Screw (x2)

Hook the Mounting Plate

onto the Wall Bracket.

Wall Bracket

Mounting Plate

Re-insert the two

Locking Screws

on boths sides.

Display

( required)

Tighten the Lever to lock the

Display in the desired position.

Step 5. Reinstall Wall Bracket Cover

Push the two pieces of

the Cover together.

PUSH

TILT

Installation Complete

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 1

7.01.11 ©

LOOSEN

Loosen the Lever before adjusting tilt.

TIGHTEN

Lever

LOWER

Produkspesifikasjoner

Merke:	Atdec
Kategori:	veggfeste
Modell:	TH-2250-VTP
Produktfarge:	Sort
Panelmonterbart grensesnitt:	50 x 50,75 x 75,100 x 100,200 x 100,200 x 200 mm
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	30 kg
Monteringsgrensesnitt, kompatibilitet (min):	50 x 50 mm
Monteringsgrensesnitt, kompatibilitet (maks):	200 x 200 mm
