Les nedenfor 📖 manual på norsk for EXSYS EX-13072HM (2 sider) i kategorien Ikke kategorisert. Denne guiden var nyttig for 12 personer og ble vurdert med 5.0 stjerner i gjennomsnitt av 6.5 brukere

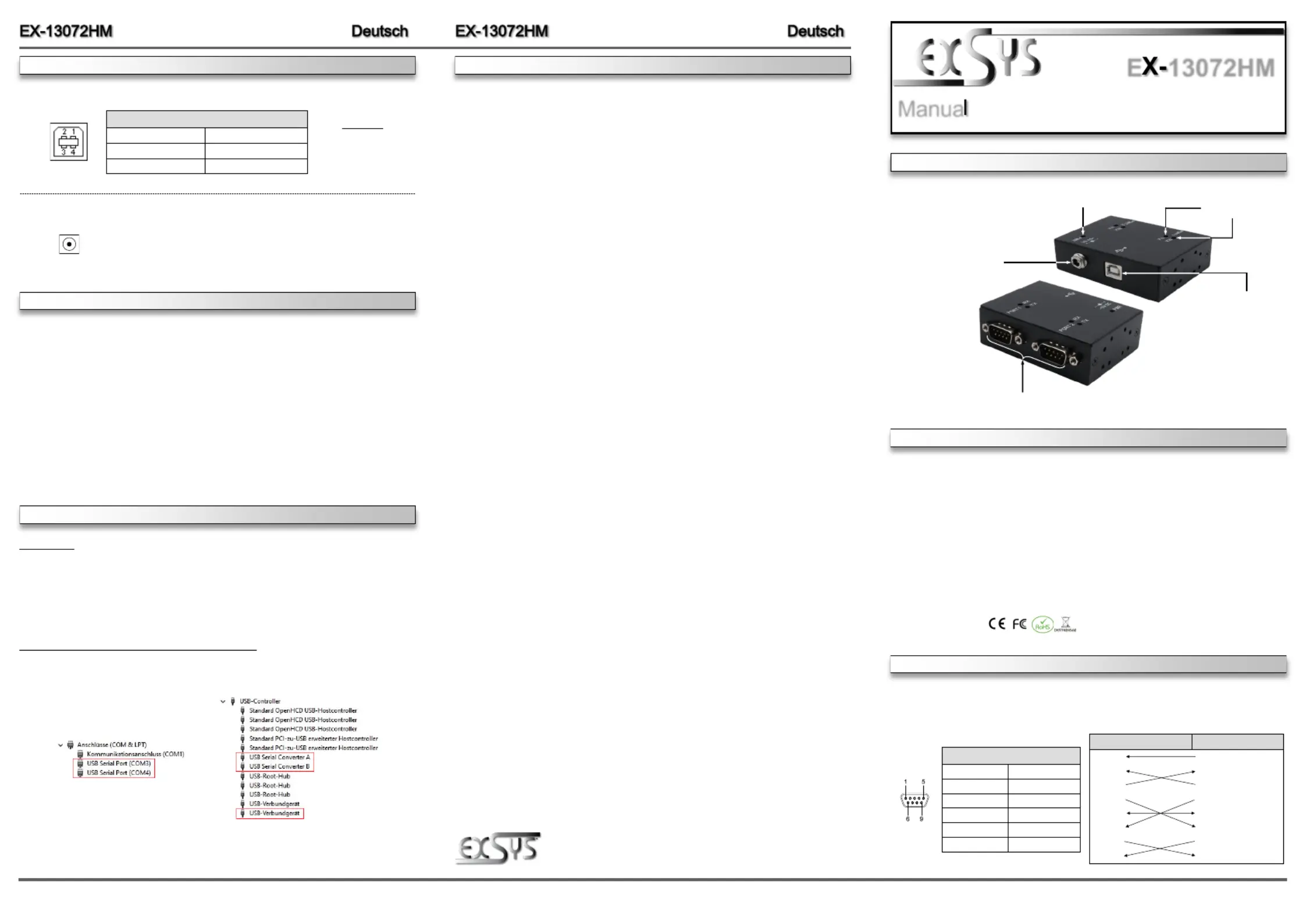

Side 1/2
6 5
Die EX 13072HM ist ein Modul zur Umsetzung von USB 2.0 auf zwei RS 232 Schnittstellen mit - -
FIFO 16C550 Port für den Anschluss von High Speed seriellen RS 232 Peripherie Geräten - -
(z.B. Modem, Plotter usw.). Die EX 13072HM ist mit einer USB 2.0 B Buchse zum Anschluss an - -
den PC und zwei RS 232 seriellen 9 Pin Stecker ausgestattet. Das USB Modul ist Hot Plug & - -
Play fähig. Für die Einstellungen der I/O Adressen und Interrupts sind keine Jumper und Ein-
stellungen notwendig, da die Einstellungen automatisch vom System BIOS und bei der Installa-
tion des Betriebssystems vorgenommen werden.
Kompatibilität: USB 1.1, 2.0 & 3.2
Betriebssysteme: Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
Anschlüsse: 2x 9 Pin D Sub Stecker, 1x USB 2.0 B Buchse, 1x DC Buchse +5V - - - -
Lieferumfang: 13072HM, USB 2.0 Kabel, Montagebügel, DIN Rail Kit, Anleitung EX- -
Zertifikate:
1
BESCHREIBUNG & TECHNISCHE DATEN
AUFBAU
Anleitun
Vers. 1.0 / 27.07.22
E 13072HM
USB 2.0 B Buchse-
PC- Anschluss
DC-Buchse +5V für
externes Netzteil
Betriebs LED
S1 & S2: Seriell 9 Pin D SUB Stecker- -
Status LED für
jeweiligen Port
HARDWARE INSTALLATION
Please note the following installation instructions. Since there are great differences between
PC's, we can only give you general instructions for connecting the EX 13072HM. If anything is -
unclear, please refer to the operating instructions of your computer system.
1. - -Install the EX 13072HM on a mounting rail by using the DIN Rail kit or on a wall by using
the mounting bracket which both are includes in the extend of delivery.
2. Connect the supplied USB 2.0 cable to the USB 2.0 Upstream B-Port of the module.
3. Now connect the other end (A Connector) of the supplied USB 2.0 cable to the USB A Port on - -
your PC.
CONNECTORS
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Switzerland:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
ANSCHLÜSSE
9 Pin Stecker Seriell RS- -232
Pin Signal Pin Signal
1 6 DSR DCD
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
DB 9M
Verdrahtung RS- 232
DB9 (EX 13072HM) 232 (Endgerät)- RS-
1 1 DCD DCD
2 RXD 2 RXD
3 TXD 3 TXD
4 DTR 4 DTR
5 GND 5 GND
6 DSR 6 DSR
7 RTS 7 RTS
8 CTS 8 CTS
RS- 232 Anschlussbelegung:
USB 2.0 B Port:-
USB 2.0 B Port-
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA 4 GND -
Attention!
Never plug in with
force or in wrong
direction.
DC- Connector +5V:
ATTENTION !!!
Only for use with optional power supply !!!
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver should not be installed automatically, please download the driver from our
homepage (www.exsys.de) first. Now select the folder of your operating system and install the
driver. Follow the installation instructions and complete the installation. Restart your Important!
PC after the installation.
CHECK INSTALLED DRIVER
Open the . Now you should see at >Device manager< „Ports (COM & LPT) USB“ and „-
Controller“ the following new entry:
If you see this or a similar information the device is installed correctly.
