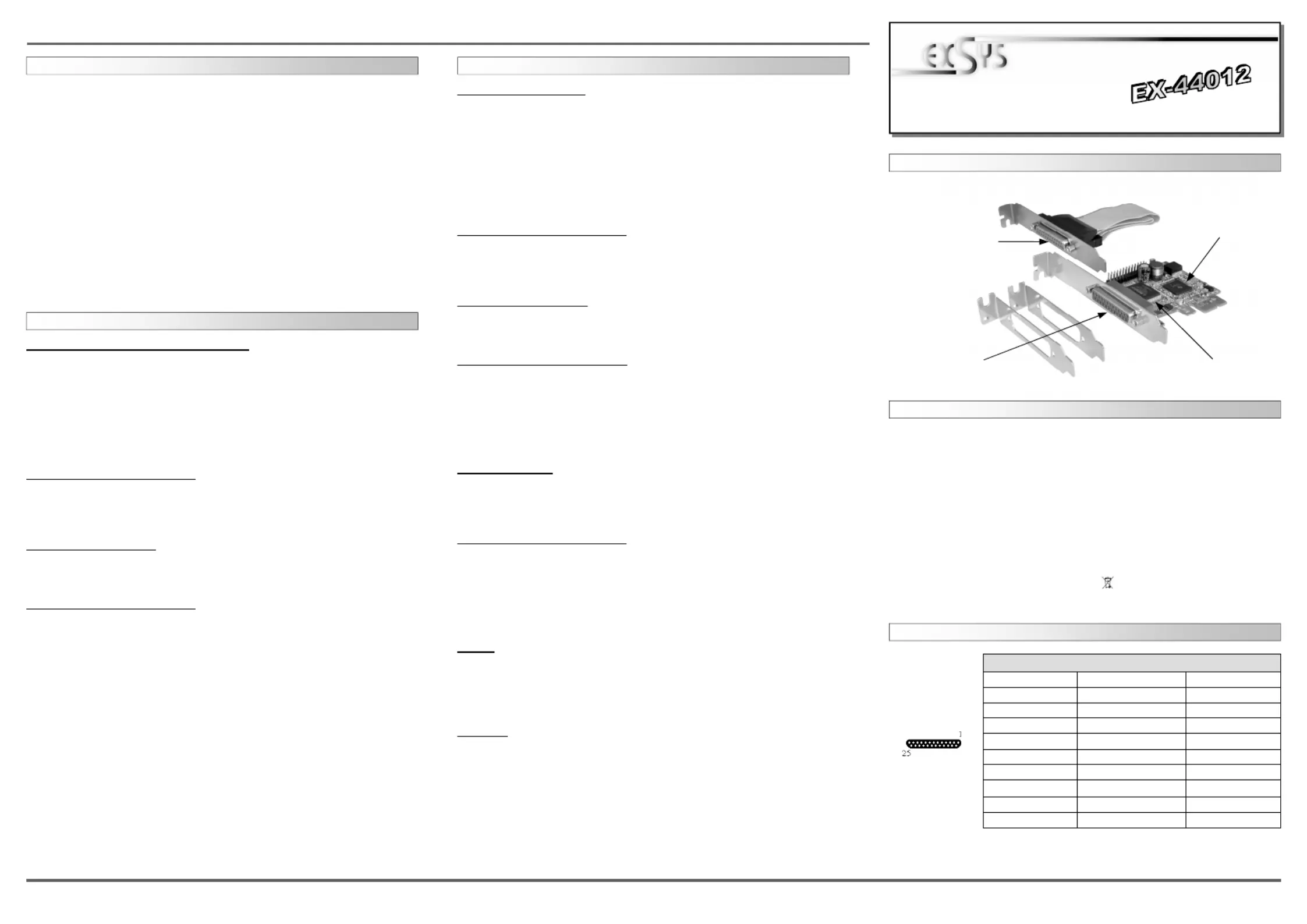

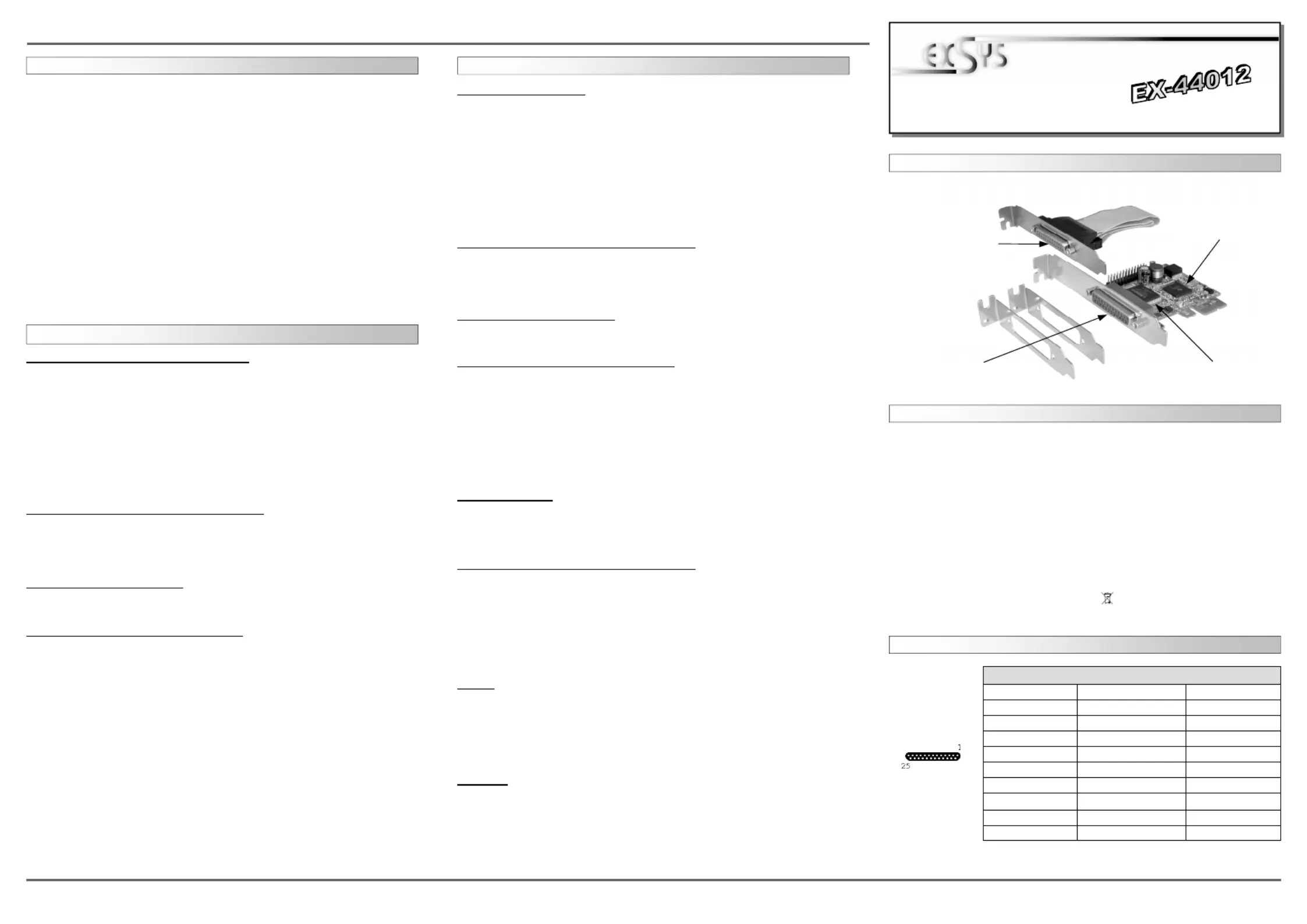

Side 1/2

6 5

44012

English

44012

English

Die EX-44012 ist eine PCI-Express parallel Karte mit zwei parallelen EPP/ECP Bi-

Direktionalen Ausgängen für den Anschluss von Peripheriegeräten mit Enhanced

Centronics Interface (z.B. Drucker, Scanner, Laufwerke usw.). Der serielle PCI-Express

Bus unterstützt optimal die Leistung der Karte. Die EX-44012 unterstützt alle PCI-

Express Slots von x1 bis x16. Es ist nicht möglich die I/O Adressen und Interrupts

manuell einzustellen, da die Einstellungen der Karte vom System (BIOS) und beim

installieren des Betriebssystems automatisch vorgenommen werden.

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

P1: 25 Pin Buchse

Parallel Ausgang

Bi-Direktional

Parallel Chip EPP/ECP

mit 32-Byte Buer und

PCI-Bridge

PCI-Express Bridge

P2: 25 Pin Buchse

Parallel Ausgang

Bi-Direktional über

Anschlusskabel

Bedienungsanleitung

Vers. 1.1 / 10.11.14

ANSCHLÜSSE

Kompatibilität: PCI-Express p1-x1 bis p1-x16

Betriebssysteme: DOS/ WIN 9x/ NT 4.0/ 2000/ XP/ Vista/ 7/ 8/ Server 20xx/ Linux

Anschlüsse: 2x 25 Pin D-Sub Parallel Buchse

Lieferumfang: EX-44012, Treiber CD, Anleitung, 25 Pin Parallel Slot-Kabel,

LowProle Bügel

Zertikate:

CECE

CE / FCC / RoHS / WEEE DE97424562

Pin Signal Pin Signal Pin Signal

1 STROBE 10 ACKNOWLEDGE 19 GROUND

2 DATA 0 11 BUSY 20 GROUND

3 DATA 1 12 PAPER EMPTY 21 GROUND

4 DATA 2 13 SELECT 22 GROUND

5 DATA 3 14 AUTO FEED 23 GROUND

6 DATA 4 15 ERROR 24 GROUND

7 DATA 5 16 INIT 25 GROUND

8 DATA 6 17 SELECT INPUT

9 DATA 7 18 GROUND

Parallel 25 Pin Buchse (P1-P2)

DB 25F:

If you are ready to install the EX-44012, please proceed with the following installation

instructions. Because the designs of computers are dierent, only general installation

instructions are given. Please refer your computer’s reference manual whenever in

doubt.

1. Turn o the power to your computer and any other connected peripherals.

2. Remove the mounting screws located at the rear and/or sides panels of your Com-

puter and gently slide the cover off.

3. Locate an available expansion slot and remove its covers from the rear panel of your

computer. Make sure it is the right expansion slot for the card (see card description)

4. Align the card with the expansion slot, and then gently but rmly, insert the card.

Make sure the card is seated and oriented correctly. Never insert the card by force!

5. Then connect the card with a screw to the rear panel of the computer case.

6. Gently replace your computer’s cover and the mounting screws.

HARDWARE INSTALLATION

DRIVER INSTALLATION

Windows 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8

After starting Windows it recognizes a new and open the hardware “PCI Controller“

assistant. Please choose manual installation and put the driver CD into your CD-Rom

drive. Now enter the Path and then the directory of your oper-"D:\IO\NETMOS\98XX"

ating system “WINME“ “WIN2000“ “WINXP“ “WINXP_64“ “Vista32“ “Vista64“

“WIN7_8_32“ “WIN7_8_64“ >next/or into the box for the Path/Source and click at

continue<. Now Windows search for the drivers in the specied directory. Follow the

hardware assistant and nish the installation. If Windows recognizes other new devices

repeat the above described steps. Restart your PC in any case after install-Attention!

ing the drivers.

CHECK THE INSTALLED DRIVER

Click at then enter and click at . In the win->Start< >Run< “compmgmt.msc“ >OK<

dows that opens select Under you >Device Manager<. „Ports (COM and LPT)“

should nd a new as sample If you see this or similar entries the „PCI Port“ (LPT3).

card is installed correctly.

CHANGE PORT NUMBER

If you like to change the port number for example LPT3 to LPT1, open the >Device Man-

ager< click at >LPT3<, >Settings< and then >Advance<. There you can change between

LPT1 to LPT3.

INSTALL A PERIPHERAL DEVICE

Now you can install a Centronics parallel device to the card.

Attention! If you want to connect old devices, it is possible that they wont work with

PCI or PCI-Express cards. In this case please connect the older device to the mother-

board and the newer device to the card. If it is necessary to connect a old device to the

card please make sure that you use the latest driver and rmware for the device. If you

experience problems with installing such devices or you are not sure that they will work.

Please contact the manufacturer of the device for further information!

Windows Server 20xx

After starting Windows it recognizes a new and open the hardware “PCI Controller“

assistant. Please choose manual installation and put the driver CD into your CD-Rom

drive. Now enter the Path and then the directory of your oper-"D:\IO\NETMOS\98XX"

ating system for Server 2000: for Server 2003: or “WIN2000“ “WINXP“ “WINXP_64“

for Server 2008: or and for Server 2008R2 and Server 2012: “Vista32“ “Vista64“

“WIN7_8_32“ “WIN7_8_64“ >next/or into the box for the Path/Source and click at

continue<. Now Windows search for the drivers in the specied directory. Follow the

hardware assistant and nish the installation. If Windows recognizes other new devices

repeat the above described steps. Restart your PC in any case after install-Attention!

ing the drivers.

CHECK THE INSTALLED DRIVER

Click at then enter and click at . In the win->Start< >Run< “compmgmt.msc“ >OK<

dows that opens select Under you >Device Manager<. „Ports (COM and LPT)“

should nd a new as sample If you see this or similar entries the „PCI Port“ (LPT3).

card is installed correctly.

CHANGE PORT NUMBER

If you like to change the port number for example LPT3 to LPT1, open the >Device Man-

ager< click at >LPT3<, >Settings< and then >Advance<. There you can change between

LPT1 to LPT3.

INSTALL A PERIPHERAL DEVICE

Now you can install a Centronics parallel device to the card.

Attention! If you want to connect old devices, it is possible that they wont work with

PCI or PCI-Express cards. In this case please connect the older device to the mother-

board and the newer device to the card. If it is necessary to connect a old device to the

card please make sure that you use the latest driver and rmware for the device. If you

experience problems with installing such devices or you are not sure that they will work.

Please contact the manufacturer of the device for further information!

Windows NT 4.0

Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).

Click at > < > < and enterStart Run “D:\IO\NETMOS\98XX\WinNTMultiioDrivers.exe"

then click . Windows NT will now start the setup program and install the driver. >OK<

Please Restart Windows NT after installing the drivers.

CHECK THE INSTALLED DRIVER

Click to >Start< Programs< Administrative Tools[Common]< > > >Windows NT-

Diagnostics< after you click to >Resource< IRQ< > . By this windows you can see >10

NmSer 0 PCI <. For the parallel port don’t have IRQ information. You click to >I/O-

Port<. Here you see two setting „E400-E406 NmSer 0 PCI “ and „D800-D806 NmSer 0

PCI“ for the serial ports and „DC00-DC06 NmPar 0 PCI“ for the parallel port. The I/O

addresses can be change, that depends which system configuration you have. If you see

this information, the card is installed correctly.

LINUX

There are no drivers available for Linux, but the card is supported by the most versions

of Linux. Because each individual distribution and kernel version of Linux is dierent,

sadly we cant provide a installation instruction. Please refer to the installation manual

for standard I/O ports from your Linux version! In some newer versions the card will

even be installed automatically after starting Linux.

MS-DOS

Copy the DOS driver le from the CD (D:\IO\NETMOS\98XX\DOS\NmDosln.exe) to the

root directory on your hard disk (C:\). Modify the “AUTOEXEC.BAT“ with the following line:

C:\NmDosln -a -r

After you reboot DOS , you can see the card with LPT2 and LPT3. The IRQ its set from

System-BIOS and can’t be changed.

DRIVER INSTALLATION

Produkspesifikasjoner

Merke:	EXSYS
Kategori:	Ikke kategorisert
Modell:	EX-44012
Vekt:	150 g
Bredde:	70 mm
Dybde:	66 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Vertsgrensesnitt:	PCIe
I/O-porter:	2 x EPP/ECP
Plugg inn og spill:	Ja
