Key features

• 3x 3.5" SATA or SAS HDD in 2x 5.25" bay

• 4x 3.5" SATA or SAS HDD in 3x 5.25" bay

• 5x 3.5" SATA or SAS HDD in 3x 5.25" bay

• Robust industrial design

• Hard disk capacity not limited

• SATA III host interface 6.0 Gbit/s

• HDD tray with key lock

• LED for power and HDD access

• Visual LED and audio alarm for fan failure & over-heat

• 80x80 mm cooling fan (60x60 mm for IB-563SSK)

• Alarm temperature adjustable (55° C, 60° C, 65° C)

• Plug & play and hot swap

• Supports Windows & Mac

IB-563, 564, 565 Serie: Backplanes for SATA / SAS HDDs

For heaviest server duty

These three HDD backplanes are well-proven in extremely hard server duty.

Even with highest transfer rates they run very smoothly. That’s why we

recommend them for the demanding duty in RAID systems.

Accordingly elaborate is the temperature control. The aluminium parts dissipate

the heat. The fan operates reliably and silently and the operating mode is

easily adjusted. If high temperature is detected there are optical and acoustic

warning signals.

All moving parts are layed out for strongest strain. The trays and their locking

mechanism are extremely fitting. They slide without resistance. The aluminium

parts are electropolished.

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany

Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de

Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.

2.1.

1. 2.

3. 4. 5. 6.

RaidSonic

STORAGE SOLUTIONS WITHOUT LIMITS

Technical data

Model IB-563SSK IB-564SSK IB-565SSK

Article-No. 56003 56004 56005

EAN code 4250078161394 4250078161400 4250078161417

Colour Black

HDD interface 3x SAS / SATA I/II/III 4x SAS / SATA I/II/III 5x SAS / SATA I/II/III

Host interface 3x SATA I/II/III 4x SATA I/II/III 5x SATA I/II/III

Place requirement 2x 5,25" bays 3x 5,25" bays

Power connector 2x Molex 4pin and 2x SATA Power Connector

HDD capacity No limit

Casematerial Aluminium

Plug & Play Yes

Hot Swap Yes

Alarm temperature 55, 60, 65° C

LED Power (blue), HDD Access (orange), On / Off

Key lock Yes

Fan 60 x 60 mm 80 x 80 mm

Fan speed up to 3000 rpm

Package Contents IB-563SSK

1x IB-563SSK, 3x SATA cables, 2x Keys,

8x Screws, 1x Manual

Package Contents IB-564SSK

1x IB-564SSK, 4x SATA cables, 2x Keys,

8x Screws, 1x Manual

Package Contents IB-565SSK

1x IB-565SSK, 5x SATA cables, 2x Keys,

8x Screws, 1x Manual

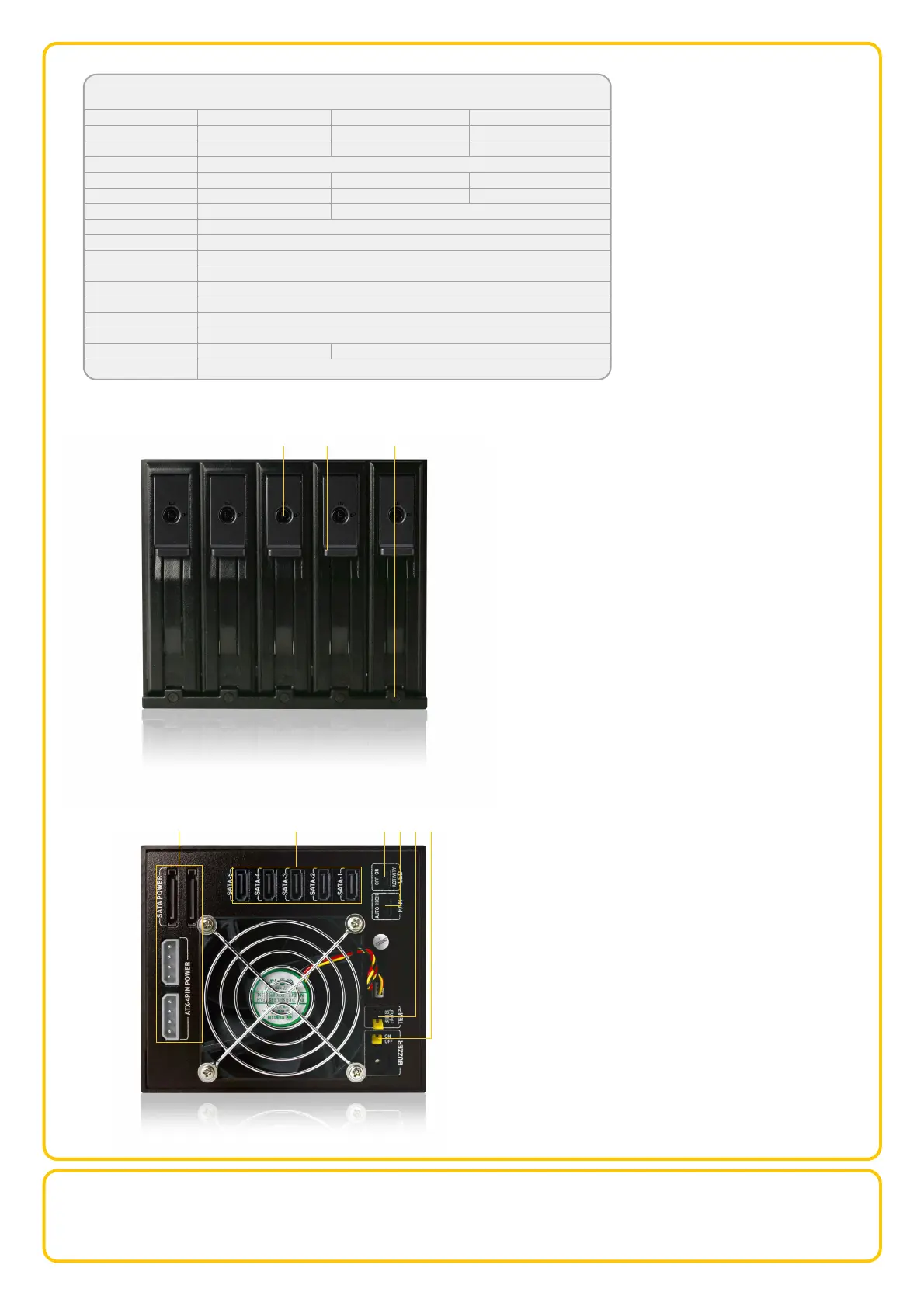

Rear view IB-565SSK

1. SATA and Molex power connector

2. SATA host connector 1-5

3. LED mode

4. Fan mode

5. Alarm temperatur setting

6. Alarm buzzer setting

Front view IB-565SSK

1. Tray lock

2. Door handle

3. Power button and LED

The tray has no electric lock function, it is locked mechanically

against improper operation or sliding out.

1. Lock – Turn to right

2. Open – Turn to top

Produkspesifikasjoner

Merke:	Icy Box
Kategori:	HDD/SSD eske
Modell:	IB-564SSK
Produkttype:	HDD-kabinett
Vekt:	1792 g
Bredde:	220 mm
Dybde:	148 mm
Høyde:	127 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	2110 g
Materiale:	Aluminium
Antall per pakke:	1 stykker
HDD-grensesnitt:	SATA, SATA II, SATA III, Serial Attached SCSI (SAS)
Antall skruer:	8
HDD-størrelse:	2.5 "
Størrelse:	3x 5.25 "
Hot-swap:	Ja
Dataoverføringshastighet:	6 Gbit/s
Antall eksterne SATA-porter:	6
Produktfarge:	Sort
Pakkedybde:	252 mm
Pakkehøyde:	180 mm
Pakkebredde:	162 mm
Kabler inkludert:	SATA
Harmonisert system (HS)-kode:	84733080
Modell/Type:	Driverbrett
Skruer inkludert:	Ja
Nøkkellås:	Ja
Støttede Windows operativsystemer:	Ja
Støttede lagringsgrensesnitt:	SAS, Serial ATA, Serial ATA II, Serial ATA III
Antall lagringsdrivere som støttes:	4
Plugg inn og spill:	Ja
Støttede Mac operativsystemer:	Ja
Viftediameter:	80 mm
Antall vifter:	1 vifter
Kompatibel med Mac:	Ja
Antall støttede HDDer:	4
Lagringsstasjonens størrelse:	3.5 "
Antall nøkler som medfølger:	2 stykker
