2
IX AMPLIFIERS
IX.5-SERIES AMPLIFIERS Owner’s Manual
IX1000.5
INSTALLATION
Mounting: Choose a structurally sound location to mount your KICKER amplifi er. Make sure there are no items
behind the area where the screws will be driven. Choose a location that allows at least 4” (10cm) of open
ventilation for the amplifi er. If possible, mount the amplifi er in the climate-controlled passenger compartment. Drill

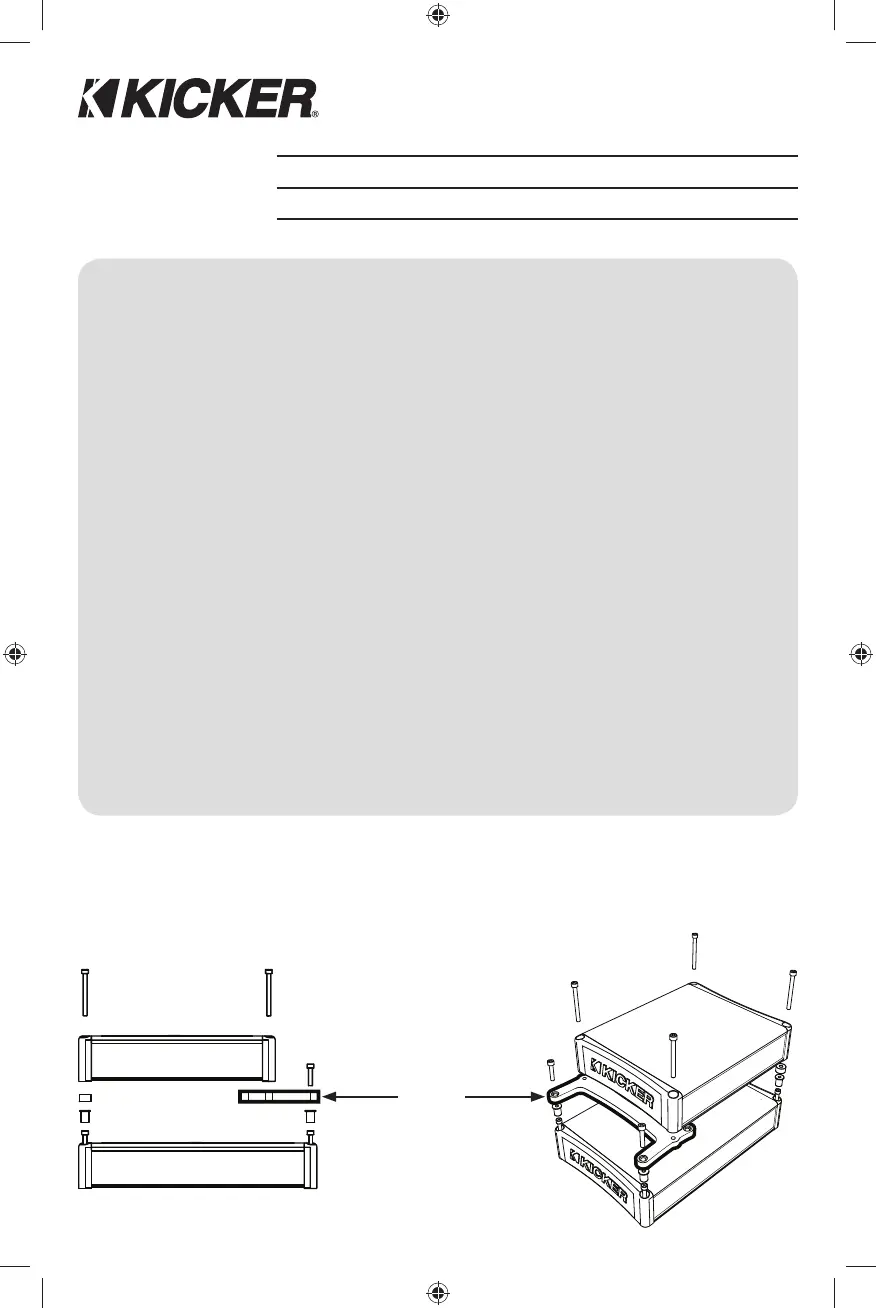

four holes using a 7/64” (3mm) bit and use the supplied #8 screws to mount the amplifi er. Use the IXSM or IXSK
mounting kits (sold separately) to stack IX amplifi ers.
PERFORMANCE
Authorized KICKER Dealer:
Purchase Date:
Serial Number:
IXSM
sold separately
RMS Power:
AMP1 & AMP2 channels driven
@ 14.4V, 4Ω stereo, 1% THD+N
@ 14.4V, 2Ω stereo, 1% THD+N
@ 14.4V, 4Ω mono, 1% THD+N
65W x 4
125W x 4
250W x 2
RMS Power:
SUBWOOFER channel driven
@ 14.4V, 4Ω mono, 1% THD+N
@ 14.4V, 2Ω mono, 1% THD+N
250W x 1
500W x 1
Length 11-3/8” (288mm)
Height 2-3/16” (55mm)
Width 7-7/8” (200mm)
Frequency Response ± 1dB 20Hz–20kHz
Signal-to-Noise Ratio >90dB, A-weighted, re: rated power
Input Sensitivity Low Level: 125mV–5V
High Level: 250mV–10V
Selectable Electronic Crossover Variable HI or OFF (bypass) | 50–200Hz, 12dB/octave
Variable low-pass | 50–200Hz, 24dB/octave (SUB)
Bass Boost Variable 0–18dB @ 40Hz
Subsonic Filter 24dB/octave, fi xed at 25Hz
Maximum Effi ciency (2Ω) >80%
2011 IX 1000.5 RevF.indd 22011 IX 1000.5 RevF.indd 2 11/5/2010 12:22:22 PM11/5/2010 12:22:22 PM
3
Model External Fuse
(sold separately)
Power/Ground Wire KICKER Wiring Kit
IX1000.5 1 x 100 Ampere 4 Gauge PK4, CK4, ZCK4
Wiring: Disconnect the vehicle’s battery to avoid an electrical short. Then, connect the ground wire to the
amplifi er. Make the ground wire short, 24” (60cm) or less, and connect it to a paint-and-corrosion-free, solid,
metal area of the vehicle’s chassis. Adding an additional ground wire of this same gauge (or larger) between the
battery’s negative post and the vehicle chassis is recommended.

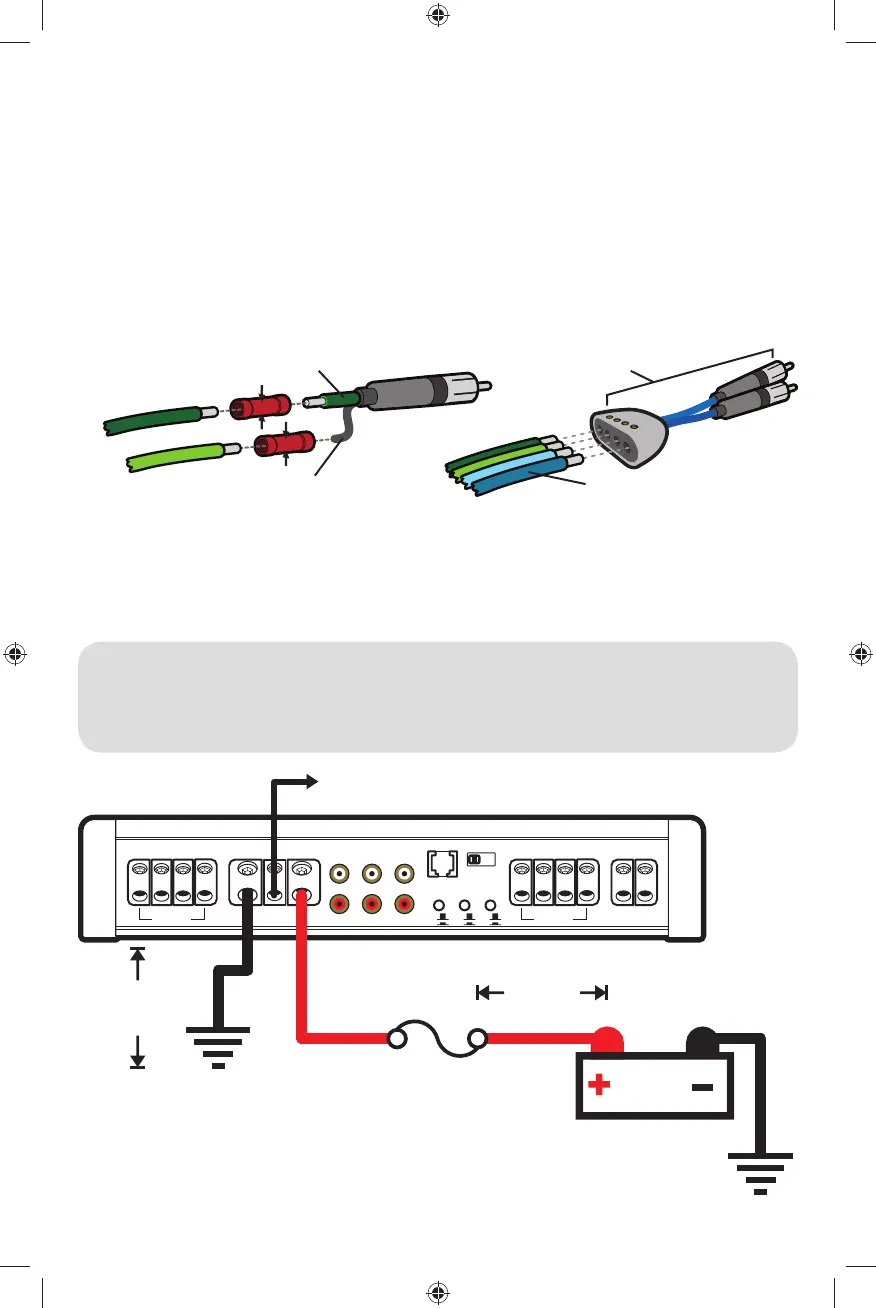

The IX amplifi er has dual input sensitivity differential RCA inputs which will receive either high or low level signals
from your car stereo’s source unit. A high-level signal can be run from the source unit’s speaker outputs to the
stereo RCA input on the end panel of the amplifi er using the KICKER ZISL as shown below (make sure you set
the IX amplifi er’s input level switch to “HI”). Alternatively, the signal can be delivered to the amplifi er using the
low-level RCA outputs on the source unit. Set the input level switch on the end panel of the amplifi er to “LO”.
Keep the audio signal cable away from factory wiring harnesses and other power wiring. If you need to cross this
wiring, cross it at a 90 degree angle.
source unit
high-level speaker
outputs
to amplifi er
shield
+
–
core conductor
Install a fuse within 18” (45cm) of the battery and in-line with the power cable connected to your amplifi er. Install
a second fuse within 18” (45cm) of the amplifi er. If you ever need to remove the amplifi er from the vehicle after it
has been installed, the ground wire should be the last wire disconnected from the amplifi er--just the opposite as
when you installed it.
KICKER ZISL
source unit high-level
speaker outputs
OR
to amplifi er
REMOTE BASS
INPUT
LEVEL
LO
HI
AMP2AMP1
L
R
SUB
POWERAMP1
GNDL+ L– R+ R– REM +12V
AUTO
TURN ON
12V DC AUDIO
OFFSET
FADER
OFF
ON
SUB
INPUT
AMP2
SUB
BRIDGED
AMP2
L+ L– R+ R–
SUB
+–
BRIDGED
12V
18”
(45cm)
battery
external fuse
remote turn-on
(see page 5)
bare-metal
chassis ground
24”
(60cm)
2011 IX 1000.5 RevF.indd 32011 IX 1000.5 RevF.indd 3 11/5/2010 12:22:23 PM11/5/2010 12:22:23 PM
