KX 4-CHANNEL AMPLIFIER

KX400.4

Owner’s Manual | English

Manual del Propietario | Español

AMPLIFICADOR DEL LA SERIE KX.4

Benutzerhandbuch | Deutsch

VERSTÄRKER DER KX.4-SERIE

Manuel d’utilisation | Française

AMPLIFICATEUR DE SÉRIE KX.4

Amplifiers

2013 KX 4-Channel Amps Rev C.indd 12013 KX 4-Channel Amps Rev C.indd 1 10/24/2012 4:31:28 PM10/24/2012 4:31:28 PM

KX.4-SERIES AMPLIFIERS

OWNER’S MANUAL

PERFORMANCE

Authorized KICKER Dealer:

Purchase Date:

Serial Number:

Model: KX400.4

RMS Power

@ 14.4V, 4 stereo,  1% THD+N

@ 14.4V, 2 stereo,  1% THD+N

@ 14.4V, 4 bridged,  1% THD+N

50W x 4

100W x 4

200W x 2

Length | in. [cm] 11 3/16 [28.4]

Height | in. [cm] 2 1/8 [5.5]

Width | in. [cm] 8 5/16 [21]

Frequency Response ± 1dB 10Hz–20KHz

Signal-to-noise Ratio >95dB, A-weighted, re: rated power

Input Sensitivity Low Level: 125mV–5V

High Level: 250mV–10V

Electronic Crossover Amp 1: OFF/HP/LP; Variable 10–5,000Hz with X10 switch

Amp 2: OFF/HP/LP/BP; Variable HP, 10–500Hz;

Variable LP, 40–5,000Hz with 10X switch

Slope: 24dB/octave

KICK EQ Bass Boost Variable 0–18dB @ 40Hz

Pro Tip: To get the best performance from your new KICKER Ampliﬁ er and extend the warranty by 1 year, use

genuine KICKER accessories and wiring.

MODEL: KX400.4

2013 KX 4-Channel Amps Rev C.indd 22013 KX 4-Channel Amps Rev C.indd 2 10/24/2012 4:31:56 PM10/24/2012 4:31:56 PM

INSTALLATION

Mounting: Choose a structurally sound location to mount your KICKER ampliﬁ er. Make sure there are no items

behind the area where the screws will be driven. Choose a location that allows at least 4” (10cm) of open

ventilation for the ampliﬁ er. If possible, mount the ampliﬁ er in the climate-controlled passenger compartment. Drill

four holes using a 7/64” (3mm) bit and use the supplied #8 screws to mount the ampliﬁ er.

Wiring: Disconnect the vehicle’s battery to avoid an electrical short. Then, connect the ground wire to the

ampliﬁ er. Make the ground wire short, 24” (60cm) or less, and connect it to a paint-and-corrosion-free, solid,

metal area of the vehicle’s chassis. Adding an additional ground wire of this same gauge (or larger) between the

battery’s negative post and the vehicle chassis is recommended.

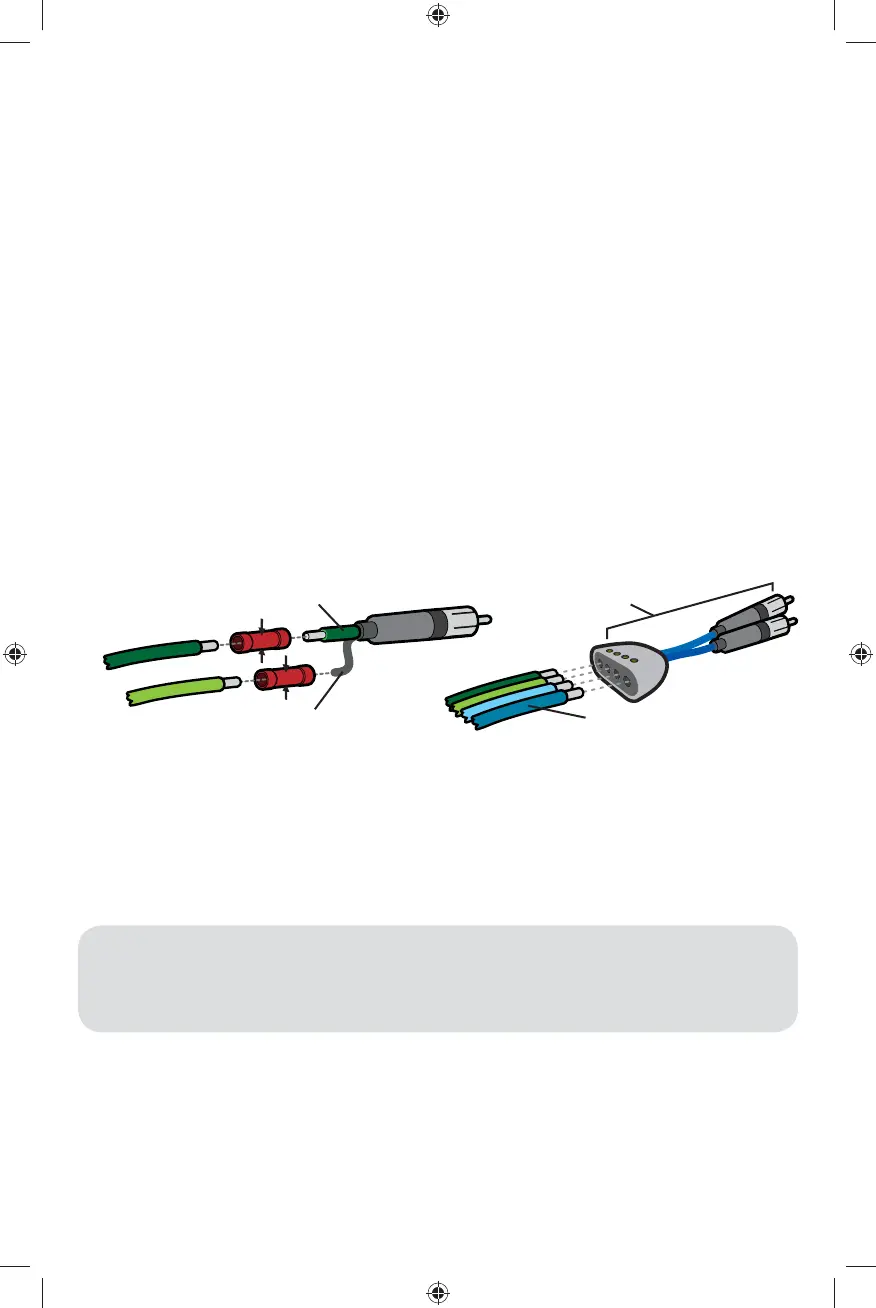

The KX ampliﬁ er has dual input sensitivity differential RCA inputs which will receive either high or low level signals

from your car stereo’s source unit. A high-level signal can be run from the source unit’s speaker outputs to the

stereo RCA input on the end panel of the ampliﬁ er using the KICKER ZISL as shown (make sure you set the KX

ampliﬁ er’s input level switch to “HI”). Alternatively, the signal can be delivered to the ampliﬁ er using the low-level

RCA outputs on the source unit. Set the input level switch on the end panel of the ampliﬁ er to “LO”. Keep the

audio signal cable away from factory wiring harnesses and other power wiring. If you need to cross this wiring,

cross it at a 90 degree angle.

source unit

high-level speaker

outputs

to ampliﬁ er

shield

–

core conductor

KICKER ZISL

source unit high-level

speaker outputs

to ampliﬁ er

Install a fuse within 18” (45cm) of the battery and in-line with the power cable connected to your ampliﬁ er. If you

ever need to remove the ampliﬁ er from the vehicle after it has been installed, the ground wire should be the last

wire disconnected from the ampliﬁ er--just the opposite as when you installed it.

–

Model External Fuse

(sold separately)

Power/Ground Wire KICKER Wiring Kit

KX400.4 1 x 80 Ampere 4 Gauge PK4, CK44, ZCK44

2013 KX 4-Channel Amps Rev C.indd 32013 KX 4-Channel Amps Rev C.indd 3 10/24/2012 4:31:56 PM10/24/2012 4:31:56 PM

Produkspesifikasjoner

Merke:	Kicker
Kategori:	Bilradio
Modell:	KX400.4
Bredde:	210 mm
Dybde:	284 mm
Høyde:	55 mm
Antall forsterkerkanaler:	2 kanaler
Høypassfilter:	Ja
Lavpassfilter:	Ja
Produktfarge:	Sølv
Inngangssensitivitet:	250 mV
RMS utgangseffekt pr. kanal (2 Ohm):	100 W
RMS utgangseffekt pr. kanal (4 Ohm):	200 W
Høytpass filterområde:	10 - 20000 Hz
