Metra 108-CH1B Bruksanvisning
Les nedenfor 📖 manual på norsk for Metra 108-CH1B (5 sider) i kategorien Bilsett. Denne guiden var nyttig for 3 personer og ble vurdert med 4.8 stjerner i gjennomsnitt av 2 brukere
Side 1/5

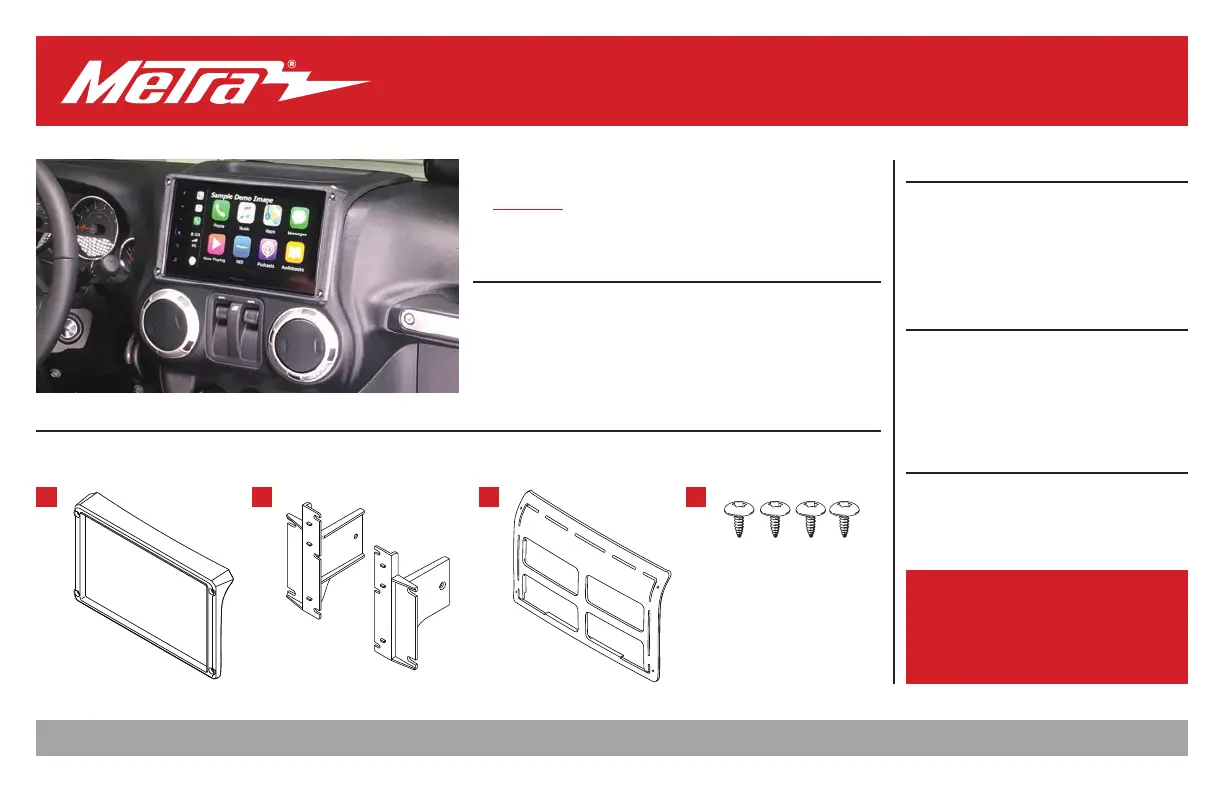

INSTALLATION INSTRUCTIONS
108-CH1B
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 5/15/19 INST108-CH1B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent Pending
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Cut template • D) Stainless steel Torx T-10 screws (4)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • 1/16” drill bit
• T-10 Torx screwdriver
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: XSVI-6522-NAV
• CHTO-03 (amplified models)
Antenna Adapter: 40-EU10
A B C D
Jeep Wrangler 2011-2017
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................3
1.800.221.0932
|
MetraOnline.com
2

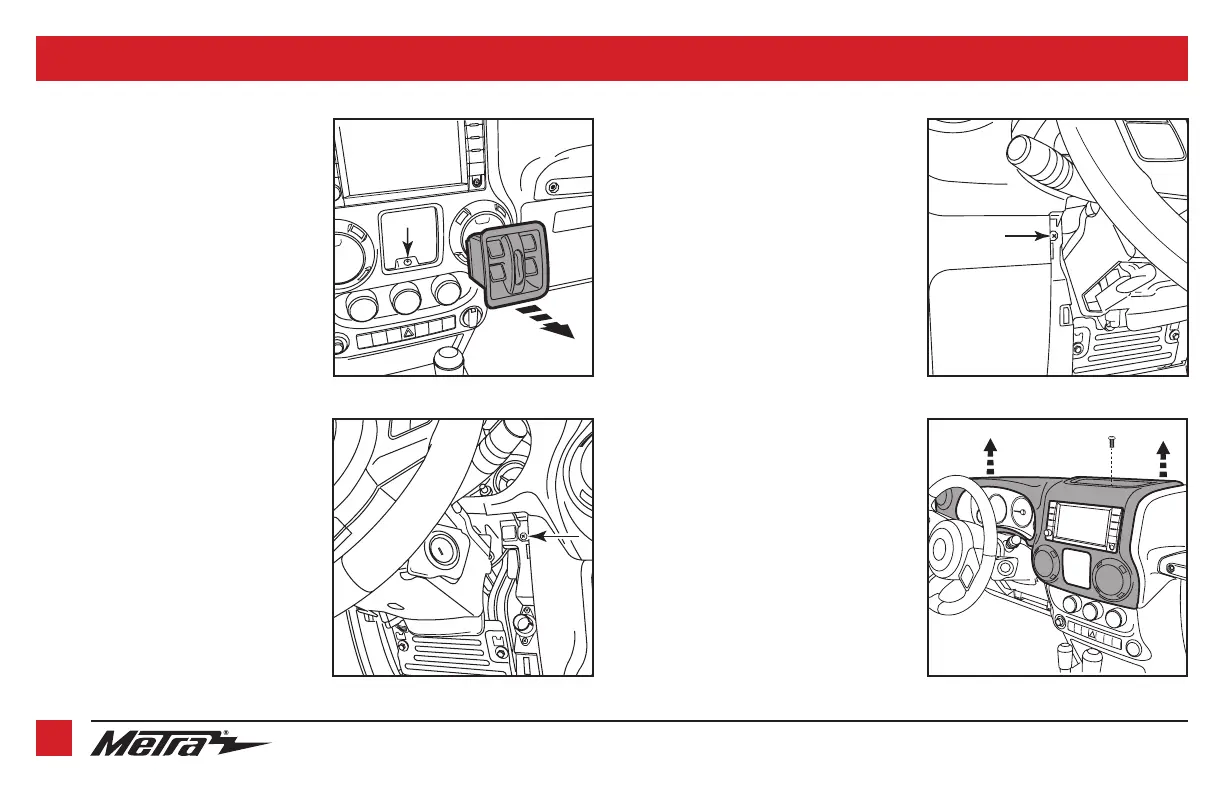

DASH DISASSEMBLY
1. Unclip and remove the power window
switches, then remove (1) 9/32” screw
from underneath. (Figure A)
2. Unclip and remove the panel below the
steering column.
3. Remove (2) 9/32” screws from the
bottom edge of the radio/instrument
cluster trim panel on either side of the
steering column. (Figure B, C)
4. Remove the pad inside the pocket on
the top center of the dash, then remove
(1) 9/32” screw from underneath.
Remove the dash panel surrounding the
radio and instrument cluster. (Figure D)
5. Remove (4) 9/32” screws securing the
radio. Slide the radio out, then unplug
and remove the radio.
Continue to Kit Preparation
(Figure A) (Figure C)
(Figure B) (Figure D)
