Side 1/12
AXTC-FD3
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 10/8/21 INSTAXTC-FD3
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
Ford SWC (Steering Wheel Control)
and Data Interface 2020-Up
APPLICATIONS
• Provides accessory power
(10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed for non-amplified
models only
• Designed to be compatible
with all major radio brands
•
Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection
or interface removal (non
volatile memory)
• Provides illumination output
• Micro-B USB updatable
Ford
E Series 2021-Up
Eco Sport 2020-Up
Escape 2020-Up
F250/F350/F450/F550 2020-Up
Transit 2020-Up
Transit Connect 2020-Up

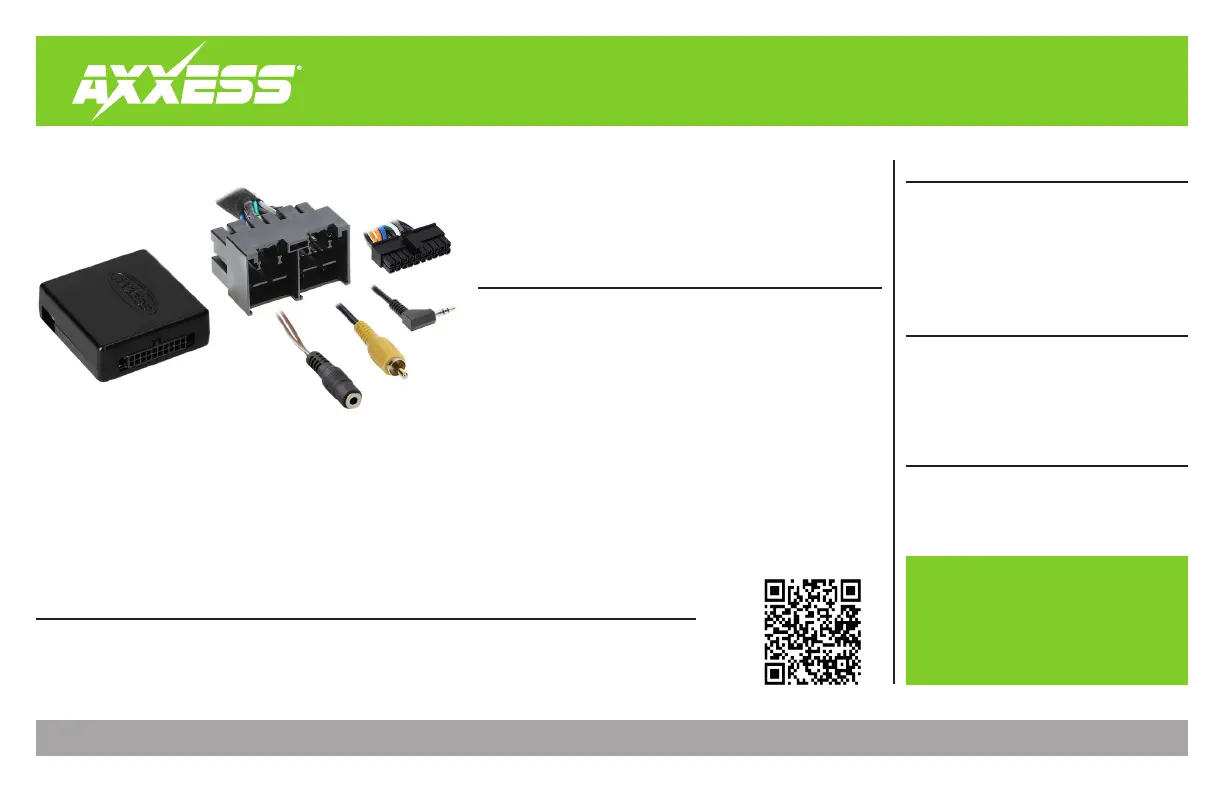

INTERFACE COMPONENTS
• AXTC-FD3 interface
• AXTC-FD3 harness
• 3.5mm adapter
Note: The AXTC-FD3 does not retain SYNC.
2

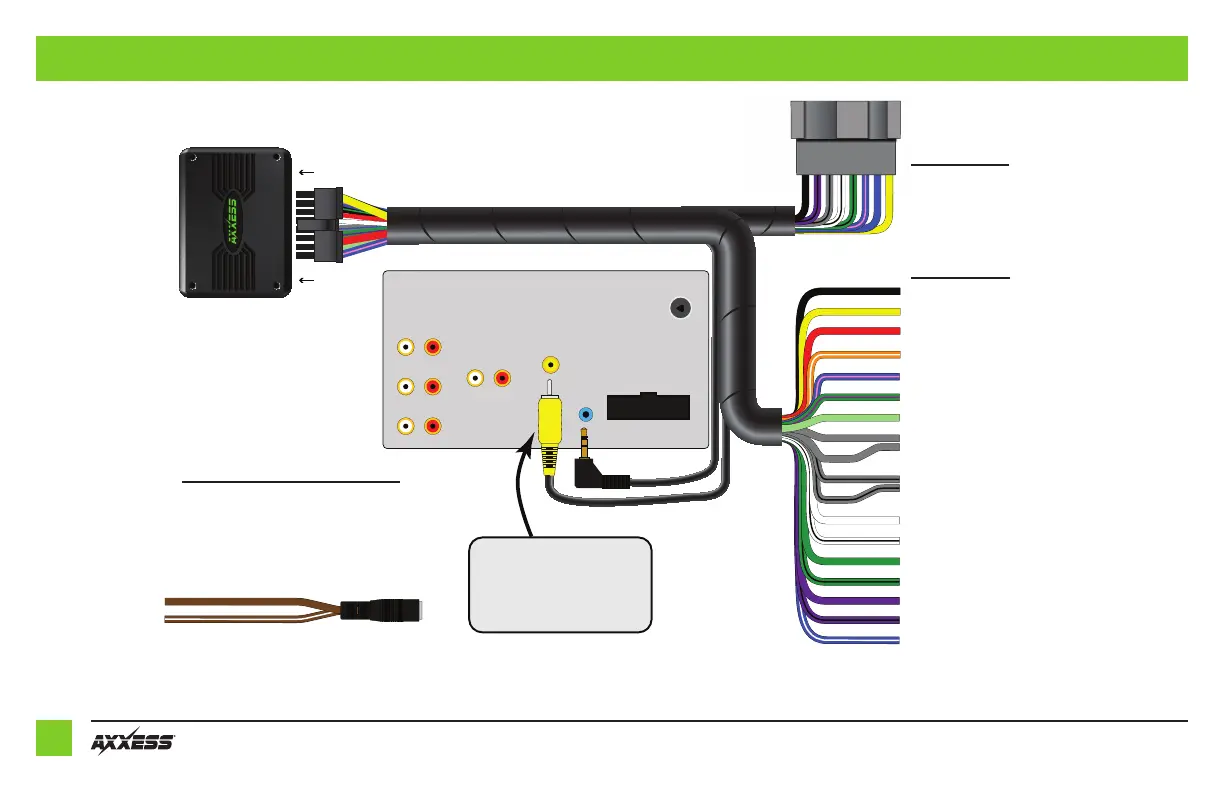

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
This is to be done only in the Ford
Transit/Transit Connect 2020-Up
without SYNC. To retain backup
camera in anyother application you
must purchase the AXBUCH-FD1.
Vehicle Connectors
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange/White - Illumination
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Blue/White - Amp turn on from radio
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED Light
3.5mm Adapter (for radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Universal Radio*:
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
