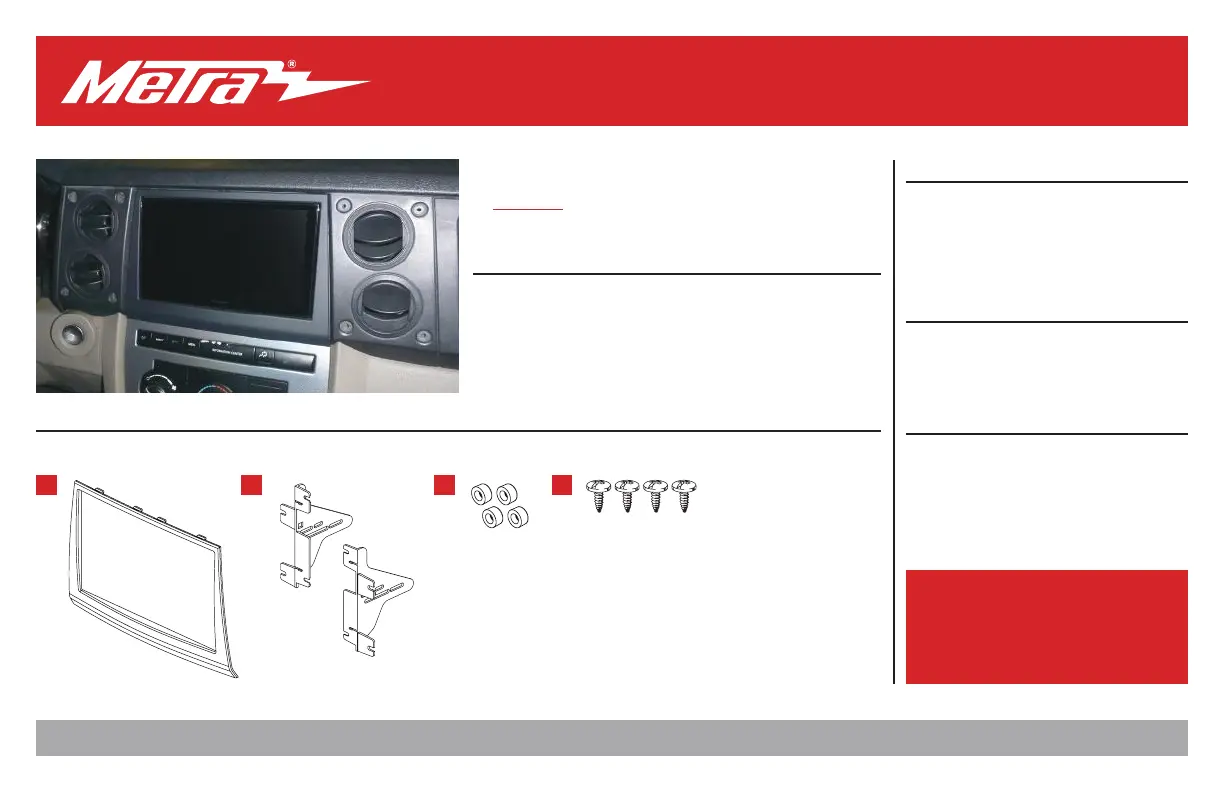

Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 4/14/20 INST108-CH4
INSTALLATION INSTRUCTIONS
108-CH4
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted to match the factory finish:
• 108-CH4G - Gray
• 108-CH4DK - Dark Khaki
KIT COMPONENTS
• A) Radio bezel • B) Radio brackets • C) Retaining caps • D) Philips screws (4)
TOOLS REQUIRED
• 9/32” Socket wrench • 5mm Allen screwdriver
• Cutting tool • Panel removal tool
• Phillips screwdriver • Solder gun
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: CHTO-01
Antenna Adapter: 40-CR10
A B C D
Jeep Commander (without NAV) 2006-2007
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
386.257.1187
|
MetraOnline.com
2
1. Remove (16) 5mm Allen screws securing
the dashboard trim panel. (Figure A)
2. Unclip and remove the dashboard trim
panel. (Figure B)
3. Remove (4) 9/32” screws securing the
radio. Slide the radio out, then unplug
and remove.
Continue to Kit Preparation
DASH DISASSEMBLY

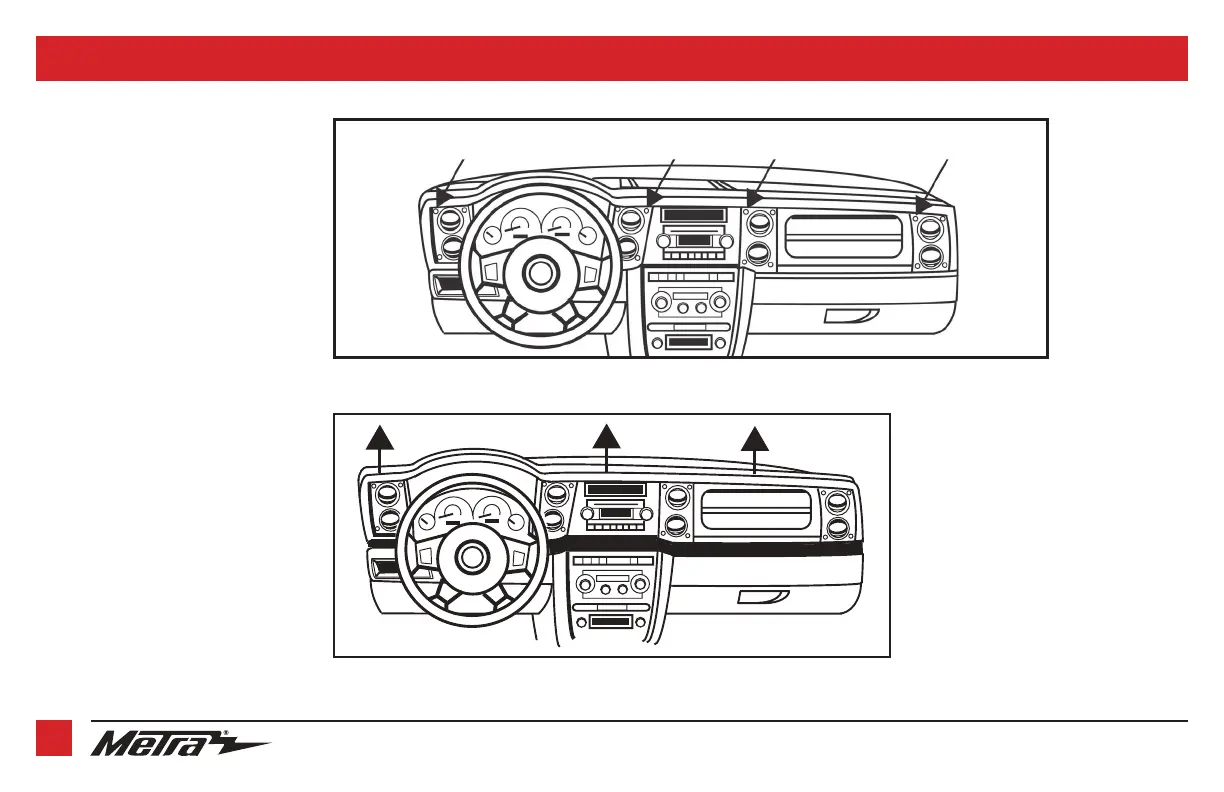

(Figure B)
(Figure A)
(4) screws (4) screws (4) screws (4) screws
