Metra 95-6553B Bruksanvisning
Les nedenfor 📖 manual på norsk for Metra 95-6553B (32 sider) i kategorien Bilsett. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 1.5 brukere
Side 1/32
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 1/13/23 INST95-6553B
INSTALLATION INSTRUCTIONS
95-6553B

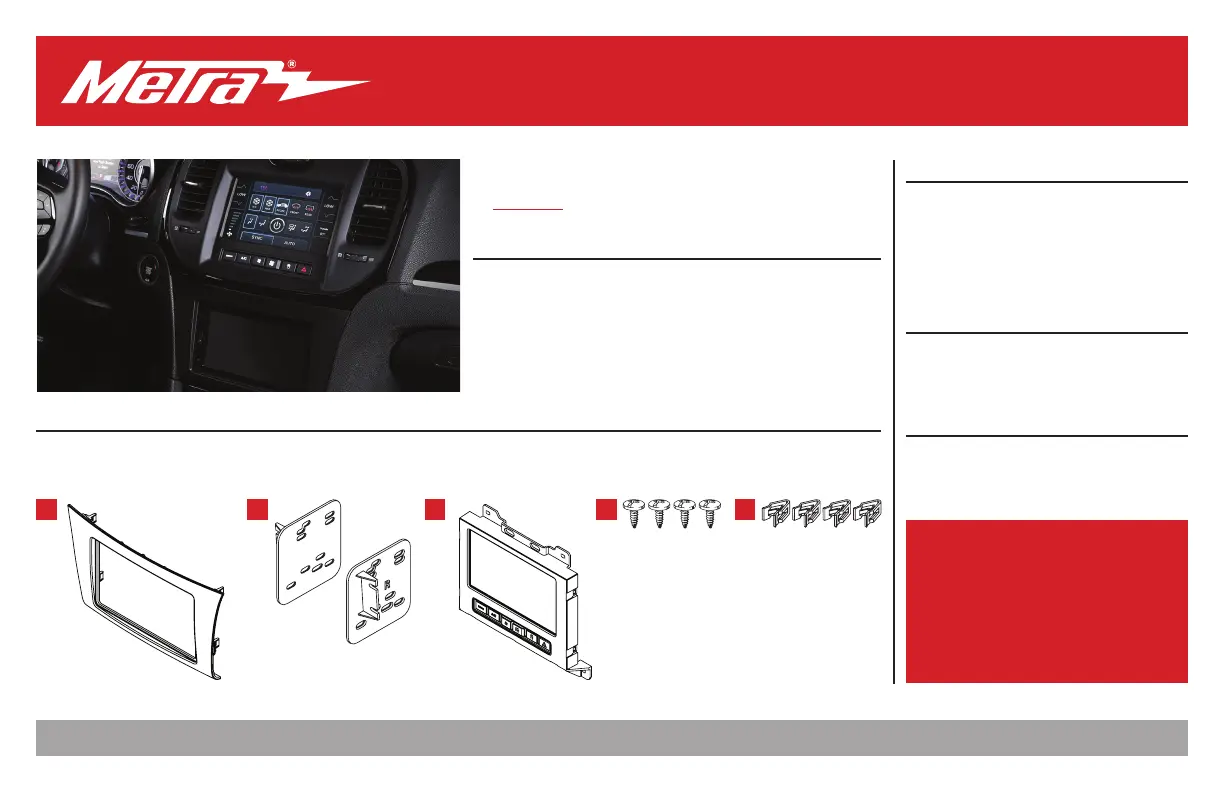

KIT FEATURES
• ISO DDIN radio provision
• 7-inch touchscreen display for climate and personalization features
• Includes Axxess interface for climate and steering wheel functions
• Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) 7" touchscreen and button panel • D) Phillips screws for radio to dash (4) • E) Panel clips (4)
Not shown: USB replacement panel, Antenna adapter
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" Socket wrench • Cutting tool
• 1/8" drill bit
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly ..........................................................3
Axxess Interface Installation ............................4-15
Final Assembly ..................................................... 16
WIRING & ANTENNA CONNECTIONS
Wiring Harness: • Included with kit
Antenna Adapter: • Included with kit
Steering Wheel Control Interface: • Included w/kit
A CB D E
Chrysler 300 2015-Up
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
Attention: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Note: • Does not retain sound from Driver Convenience Group.
•
Track and launch control features from SRT Package will be lost.
386.257.1187
|
MetraOnline.com
2

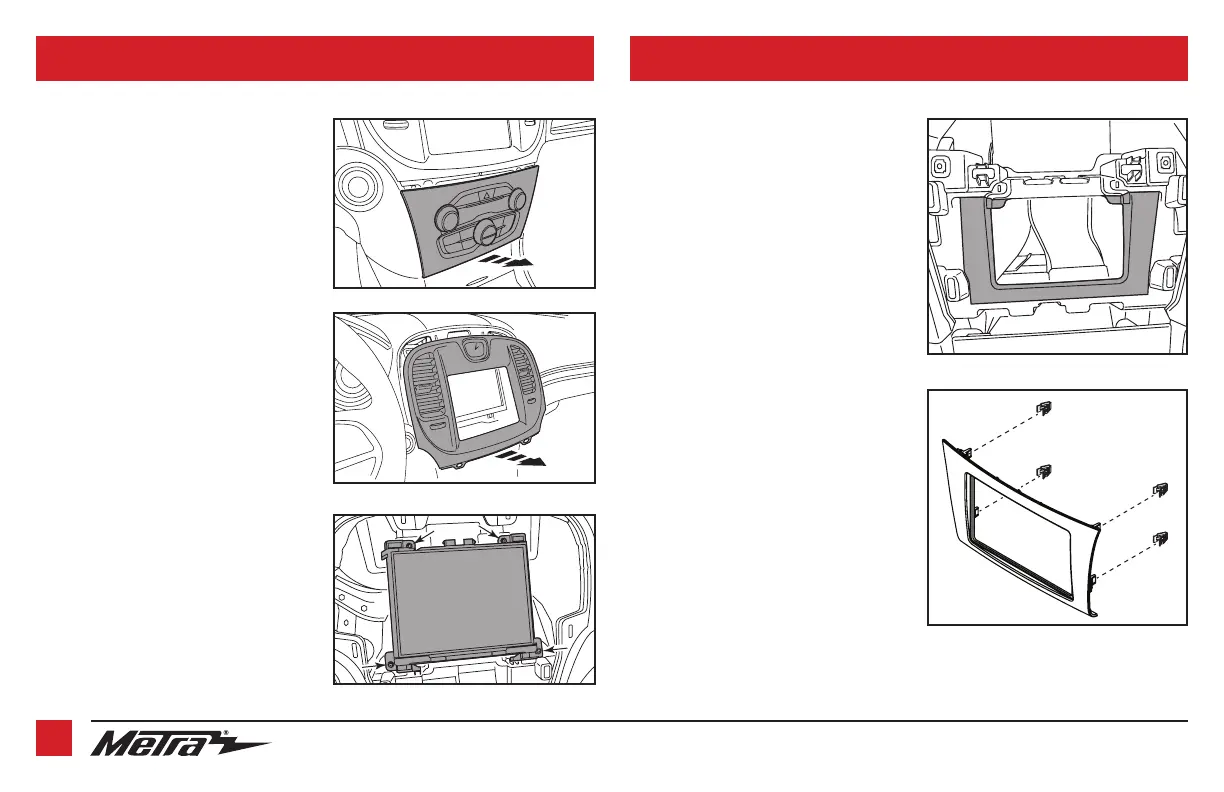

1. Using the panel removal tool, carefully
pry around the entire dashboard trim
panel surrounding the radio display
and instrument cluster. Unclip, unplug
and remove the dashboard trim panel.
(Figure A)
2. Remove (4) 9/32" screws securing the
radio display, disconnect the wiring, and
then remove the display. (Figure B)
3. Pull out, unplug, and remove the climate
control panel. (Figure C)
Continue to Kit Preparation
(Figure A)
(Figure B)
DASH DISASSEMBLY KIT PREPARATION
Remove shaded area
(Figure A)
(Figure B)
(Figure C)
1. Using a cutting tool, remove the shaded
area of the sub-dash to allow room for
the aftermarket radio. (Figure A)
Note: Do not cut into snap locations.
2. Attach (4) panel clips provided with
this kit onto the new radio trim panel.
(Figure B)
Continue to Kit Assembly
