Prepare cable as shown.
Insert the wires into the terminals
and solder it.
Wiring of the Female Receptacle and the Cable Connector:
A
B
A
B
[0.32"]
[0.79"]
20 mm
A
B
C
D
E
A
B
C
D
E
2+ 2-
1- 1+

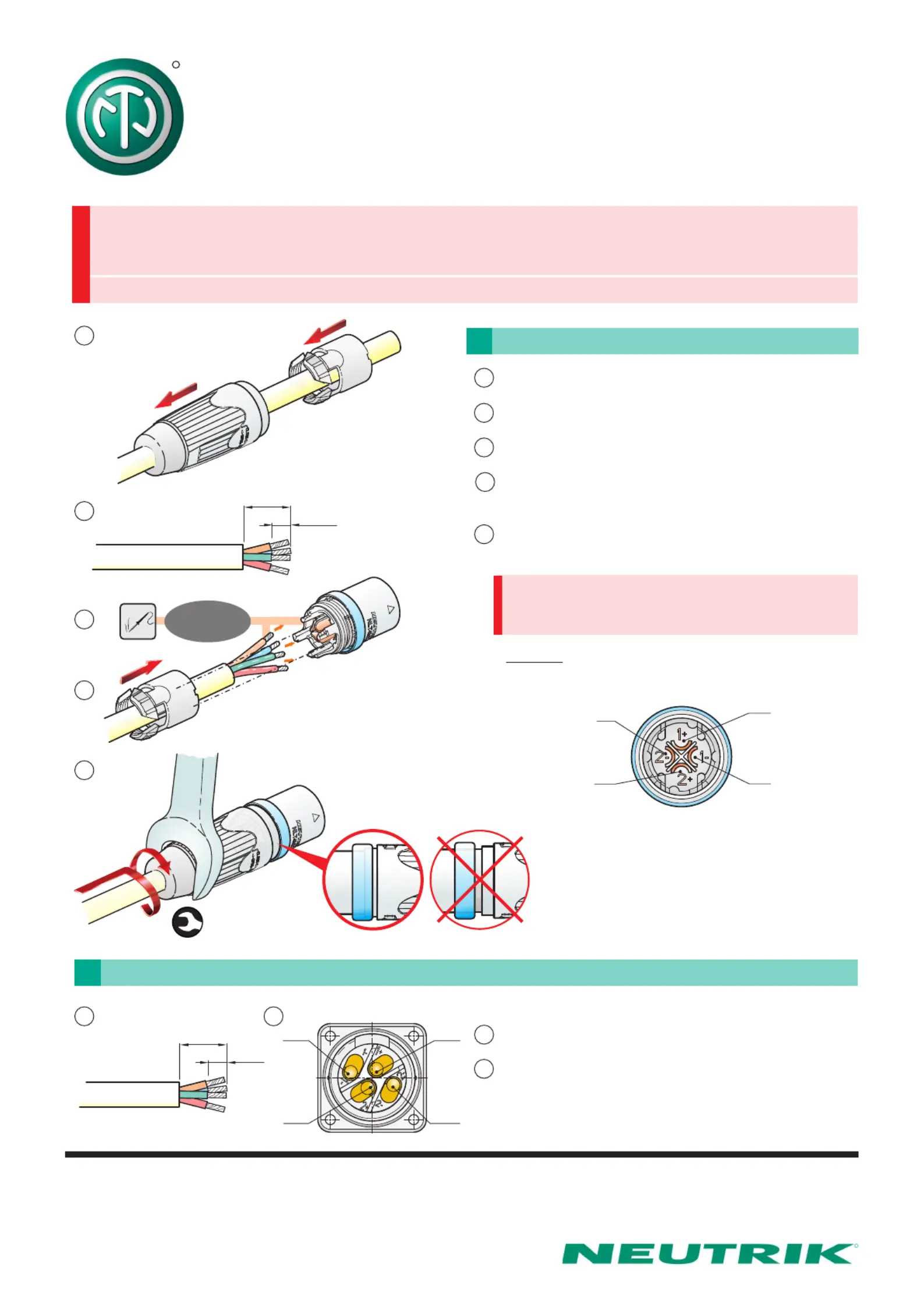

Assembly of the Cable Connector
Place bushing and chuck over the cable.
Prepare cable as shown.
Solder the wire ends to contacts of insert.
Slide the chuck up the cable and align with
the housing.
Slide the bushing up the cable and tighten it
(flat wrench SW 22 mm).
Important: Bushing must be screwed onto
housing minimum 3 turns thus there is no
gap between housing and bushing.
Wiring of the Male Cable Connector:
NO
YES
®
speakON TXX Series
Lockable 4 pole Loudspeaker Cable Connector with metal housing
2+
1-
2-
1+
CAUTION: NOT FOR INTERRUPTING CURRENT
ATTENTION: NE PAS UTILISER POUR COUPER LE COURANT
R
20 mm
20 mm
20 mm
20 mm20 mm
8 mm
8 mm
8 mm
8 mm8 mm
[0.79"]
[0.79"]
[0.79"]
[0.79"][0.79"]
[0.32"]
[0.32"]
[0.32"]
[0.32"][0.32"]
®
Attention: speak is not to be used as an AC mains or power supply connector!ON
A S S E M B LY I N S T R U C T I O N
I M P O R TA N T S A F E T Y IN S T R U C T I O N
Draft. Nr.: BDA 614 V2 Update: 2021-02-18
I
www.neutrik.com
Neutrik AG LI T: +423 / 237 24 24 F: +423/232 53 93
Neutrik USA Inc. USA T: +1 704 / 972 3050 F: +1 704/438 9202
( )
Neutrik UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983/811 439
Neutrik Vertriebs GmbH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 8131/280 830
Neutrik France FR T: +33 1/ 4131 6750 F: +33 1/4131 0511
Neutrik Tokyo Ltd. JP T: +81 3/3663 4733 F: +81 3/3663 4796
Neutrik Hong Kong Ltd. HK T: +852/2687 6055 F: +852/2687 6052
Neutrik India Pvt. Ltd. IND T: +91/982 05 43 424 F: +91/22 26163 540
R
Data subject to change without prior notice. 2020 NEUTRIK . NEUTRIK are registered trademark of Neutrik AG. ALL RIGHTS RESERVED.
® ®
©
Wrench Size = 22
SOLDER
