INSTRUCTION/INSTALLATION SHEET
Universal Mounting Plates
IS-0309 REV. O
1. Introduction
The On-Q/Legrand Universal Mounting
Plates (see Figure 1) are designed to
easily mount a variety of products in an
On-Q style enclosure.
2. Description

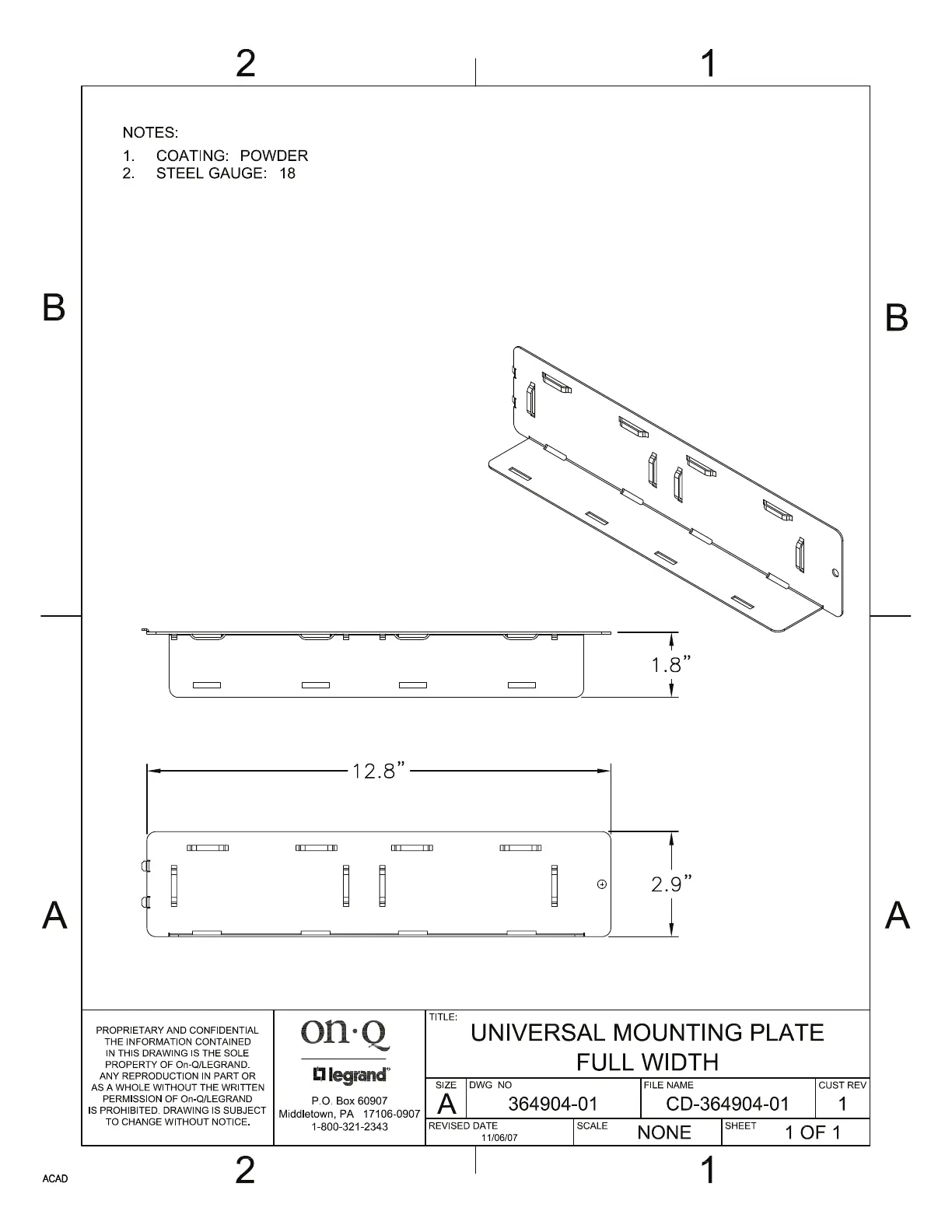

The On-Q Universal Mounting Plates are
available in half-width (P/N 364896-01) or
full-width (P/N 364904-01) versions. The
half-width version comes with two Velcro®
hook and loop style straps used to secure
products, while the full-width version
comes with four straps. Each plate has
multiple slots for attaching products of
varying thickness and in either vertical or
horizontal orientation.
3. Installation
The On-Q Universal Mounting Plates
are typically installed during the “trim-
out” phase of a new installation or
associated with an upgrade for an
existing installation.
a. Align and insert the stationary tabs
on the left hand side of the plate into
the square slots in the enclosure
and use the push-pin on the right
side of the plate to secure the plate
to the enclosure.
b. Use the hook and loop straps
provided to firmly mount the product
to the plate (see Figure 2).

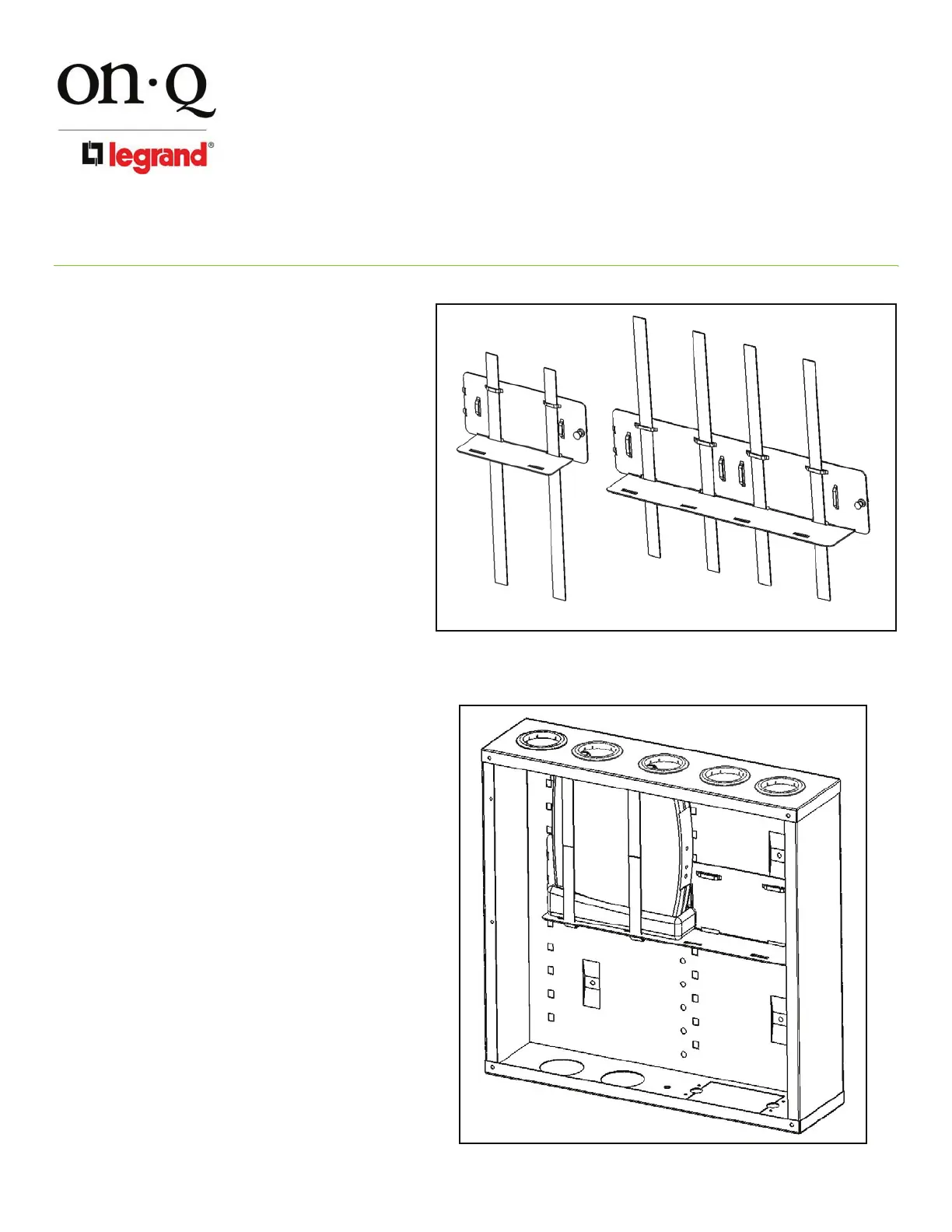

Figure 1
