301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
Page 1 of 2
INSTRUCTION/INSTALLATION SHEET
lyriQ™ Local Source Input
IS-0321 REV. A
©Copyright 2007 by On-Q/Legrand All Rights Reserved.
1. Introduction
The On-Q /Legrand lyriQ™ Local Source Input, PN F7417-xx (see Figure 1), is
an integral part of the On-Q/Legrand lyriQ™ Audio System. It is a component
which, when combined with other essential components and your source
equipment (receiver, CD player, etc.), creates a versatile whole-house audio
system that will fill your rooms with high-quality sound for years to come.
Category 5 technology is a new, innovative method of providing high quality
audio to remote locations with a single 8-conductor cable such as Cat 5e. This
technology provides many advantages over other conventional methods of
audio distribution such as simple, single Cat 5e wiring scheme, infrared control
of system components, and system power status.
NOTE: The lyriQ™ Local Source Input, like other On-Q/Legrand lyriQ™
Audio system components, is powered by the On-Q/Legrand lyriQ™ Audio
Distribution Module.
IMPORTANT: Read the manuals that are included with all associated
lyriQ™ Audio products before installation of any single component! If you
are unsure of any of the following installation procedures contact On-
Q/Legrand Technical Support @ 1-800-321-2343 option 1 or contact an On-
Q/Legrand installer.
2. Description

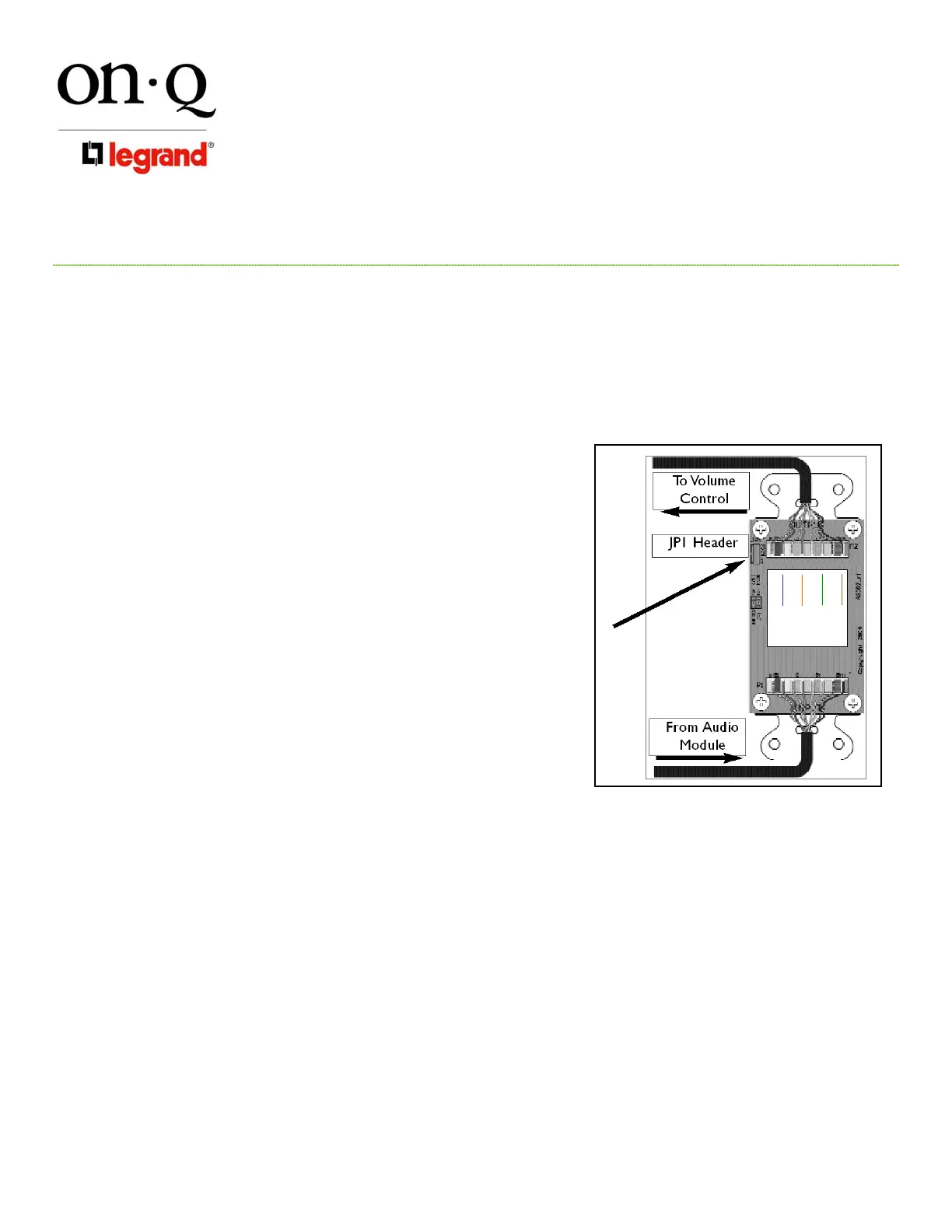

The lyriQ™ Local Source Input allows the system to use a “local” input in any Audio zone. It is connected in
series with the volume control by simply terminating the run of Cat 5 cable from the lyriQ™ Distribution Module
to the input of the lyriQ™ Local Source Input, and connecting the output of the lyriQ™ Local Source Input to the
volume control. The lyriQ™ Local Source Input uses the same 110 style punchdown connection as the volume
controls. The lyriQ™ Local Source Input senses the audio signal from a line level audio source such as a CD
player, and if it is active, the local source has priority over the main source and will be heard within the zone.
When the local source is no longer active or plugged in, the main source will be heard in the zone within 30
seconds.
3. Installation
Installation of the On-Q lyriQ™ Local Source Input is best accomplished in two steps during new construction,
at “Rough-in” before the drywall is installed, and at “Trim-out” after the drywall is installed and painted.
NOTE: The On-Q/Legrand lyriQ™ Local Source Input is typically mounted at electrical outlet height.
Measure the nearest box on the same wall that the lyriQ™ Local Source Input will be installed and place
the J-Box at the same height. Position and cabling must maintain separation of class 2 cable from power
wiring. Special applications, such as audio from a TV, entertainment center, or a computer, may require
different heights.
A. “Rough-in” steps:

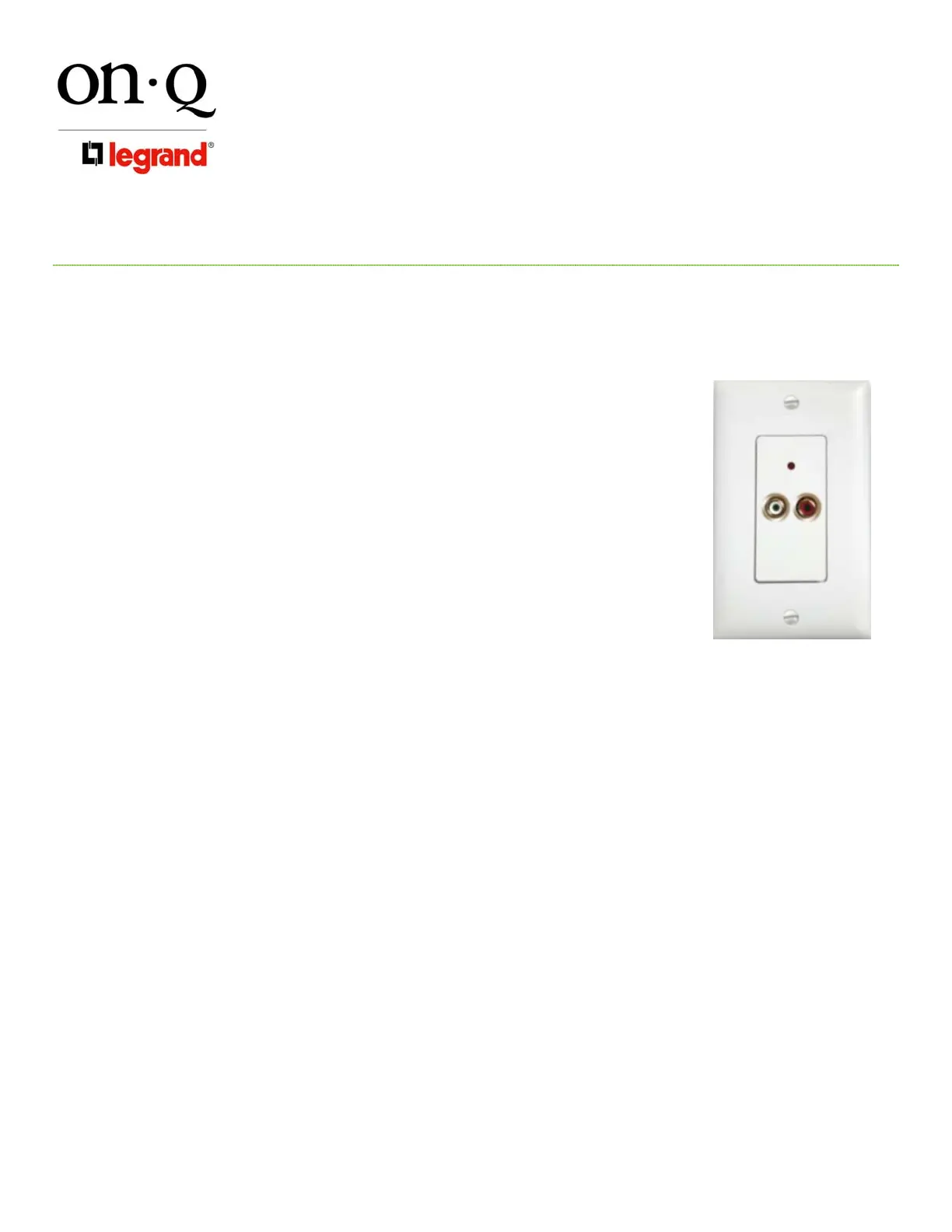

Figure 1
F7417-WH (White)
F7417-LA (Lt. Almond)
F7417-IV (Ivory)
F7417-BK (Black)
