Side 1/4

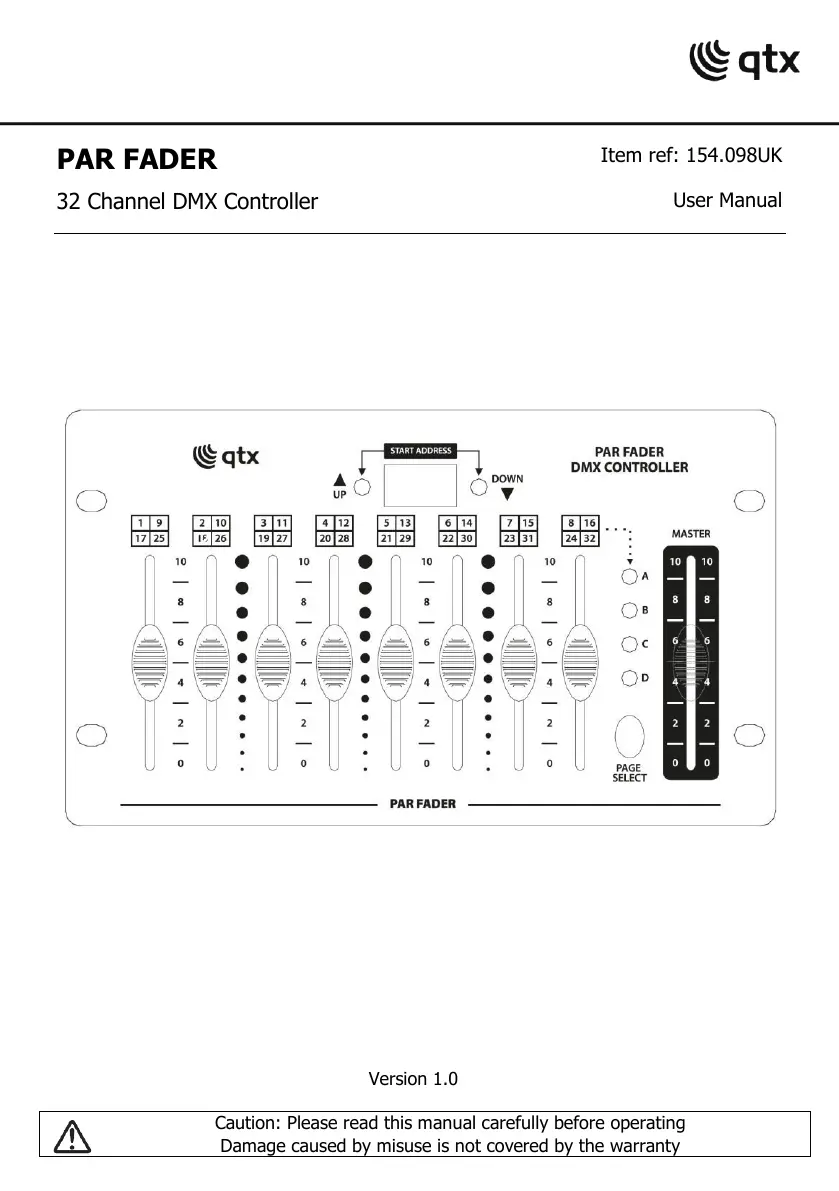

PAR FADER
Item ref: 154.098UK
32 Channel DMX Controller
User Manual
Version 1.0
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
PAR FADER
Item ref: 154.098UK
32 Channel DMX Controller
User Manual
Version 1.0
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Powered by TCPDF (www.tcpdf.org)
154.098UK User Manual
Top panel
Rear panel
Setting up
Connect the DMX output (10) to the first DMX lighting fixture or effects unit in line using a
DMX cable with 3-pin XLR connection.
If further DMX units are to be controlled, connect the DMX out from the first unit to the
DMX in of the second unit and DMX out from the second unit to the DMX in of the third
unit and so on until all fixtures to be controlled are linked.
Set the DMX start address of each fixture to accommodate the number of channels
required for control. (i.e. if a fixture has 8 DMX channels and the DMX start address is set
to “009”, then channels 9 through 16 will control parameters 1 to 8 of the fixture).
For additional fixtures, these may be set to the same start address if they are to be
controlled together or to different start addresses where the DMX addresses do not
overlap to be controlled separately.
1
Start address +
2
LED numerical display
3
Start address -
4
Page indicator LEDs
5
Channel faders
6
Page select button
7
Master fader
8
Power on/off switch
9
9Vdc power adaptor input
10
DMX out XLRF
11
9V battery compartment
Produkspesifikasjoner
| Merke: | QTX |
| Kategori: | belysning |
| Modell: | PAR FADER |
