Side 1/8
www.avslgroup.com 151.558UK
PB-7
High Power Foldable PAR Bar
Item ref: 151.558UK
User Manual
Thank you for choosing this QTX PB-7 PAR bar. A foldable PAR bar kit fantastic for mobile DJs
and performers who need their lighting to be quick to set up and easily transportable. This
PAR bar boasts 4 high power Cans, each fitted with 7 x 3W RGB LEDs. Smooth colour blending
can be achieved by controlling with the included foot controller or via DMX.
In the box:
Your PB-7 should arrive to you in two separate cartons in good condition.
Carton 1:
• PAR bar with 4 LED PAR Cans
• Foot controller
• Foam carry case
• 2 x IEC mains lead (UK and EU)
Carton 2:
• 35mmØ tripod stand
• Stand bag
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments.
In the event of a spillage, disconnect the mains and allow the unit to dry out naturally.
Qualified personnel should then check the unit before continuing use.
• Always check the correct voltage and the condition of the IEC lead before connecting to a
power outlet.
• Always ensure any DMX leads used are in good condition with no short connections or
damaged plugs.
Please read through this manual thoroughly before use, any damage cause by
misuse of product will not be covered by warranty.
Please do not open cover, contain high voltage. This
product is not serviceable or repairable by end user.
Please refer to qualified personnel for service and repair.
er or professional when unit malfunction.
www.avslgroup.com 151.558UK
Setup:
Release the clasp that holds the top bar in the folded position and unfold to the open position
as pictured below. There are two clasps at the back of the unit that need to be locked to keep
the top bar in the open position.
The opened top bar can now be place on to the supplied tripod stand and adjusted to desired
height. Each LED PAR Can pans and tilts to face different directions and angles.

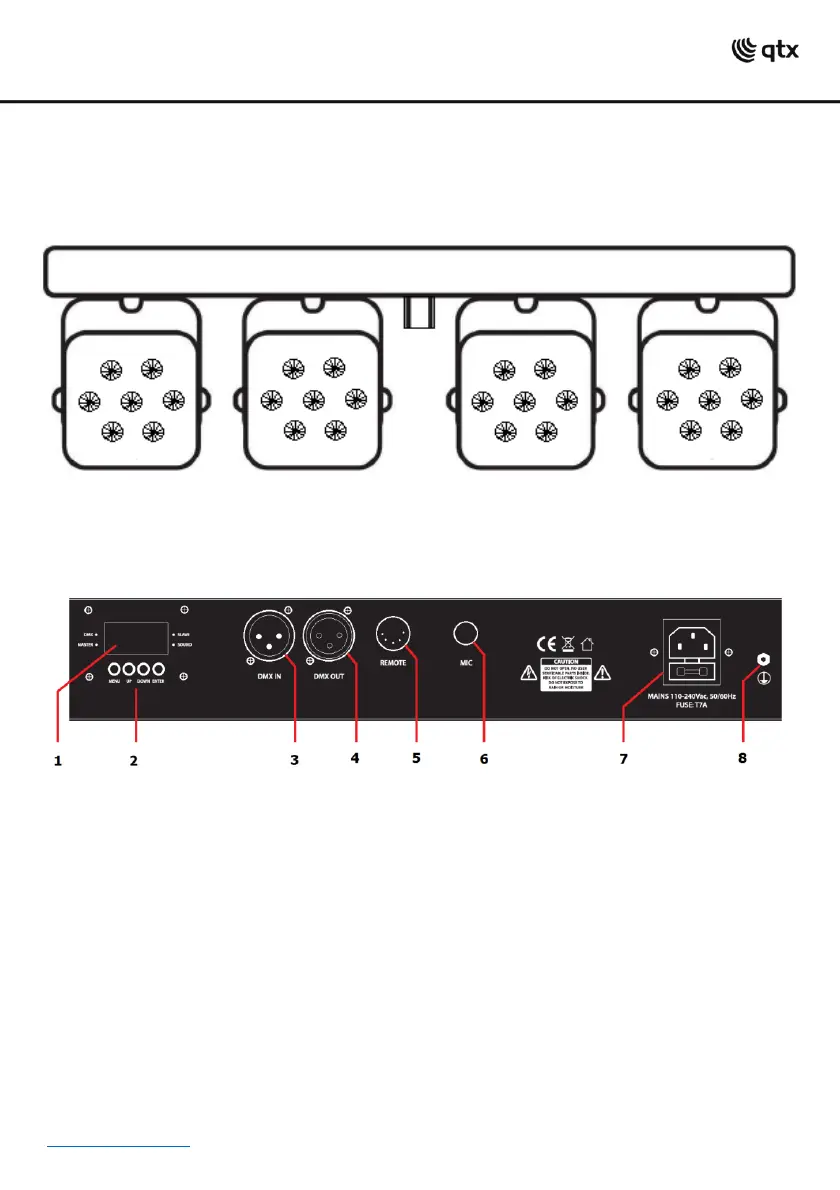

Back panel:
1. LCD Display
2. Manual control buttons
3. DMX signal in (DMX male socket)
4. DMX signal out (DMX female plug)
5. Foot controller socket
6. Built in mic
7. IEC socket
8. Earth connection screw
DO NOT REMOVE
