www.avsl.com 151.593UK User Manual
Tri-Bar
3 Segment RGB LED Wall Bar
Item ref: 151.593UK
User Manual
Thank you for choosing the QTX Tri-Bar with 18 high output RGB LEDs to provide colour washes and
moving patterns against walls, ceilings or even floors. The 3 groups of 6 LEDs can be controlled by auto or
sound activated modes from preset internal colour sequences. Alternatively, the bar can be operated
remotely by DMX in either 3, 7 or 13 channel modes and connected to more units if a larger effect is
needed.
In the box:
Your Tri-Bar should arrive with you in a single carton in good condition. The carton should contain
1 x main unit, 2 fixing stand/brackets with thumbscrews, 1 x UK IEC mains lead and 1 x manual.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
www.avsl.com 151.593UK User Manual
Placement:
• Use the included mounting brackets to fix to a stand or lighting truss.
• Use secondary safety fixings if mounting overhead.
• Keep away from damp or dusty environments.
• Ensure adequate airflow around the fixture housings.
• Ensure adequate access to controls and connections.
• Do not aim LED or laser output directly into line of sight, as this can result in eye injury.
Cleaning:
• Use a soft cloth with a neutral detergent to clean the casing as required.
• Do not use strong solvents for cleaning the unit.

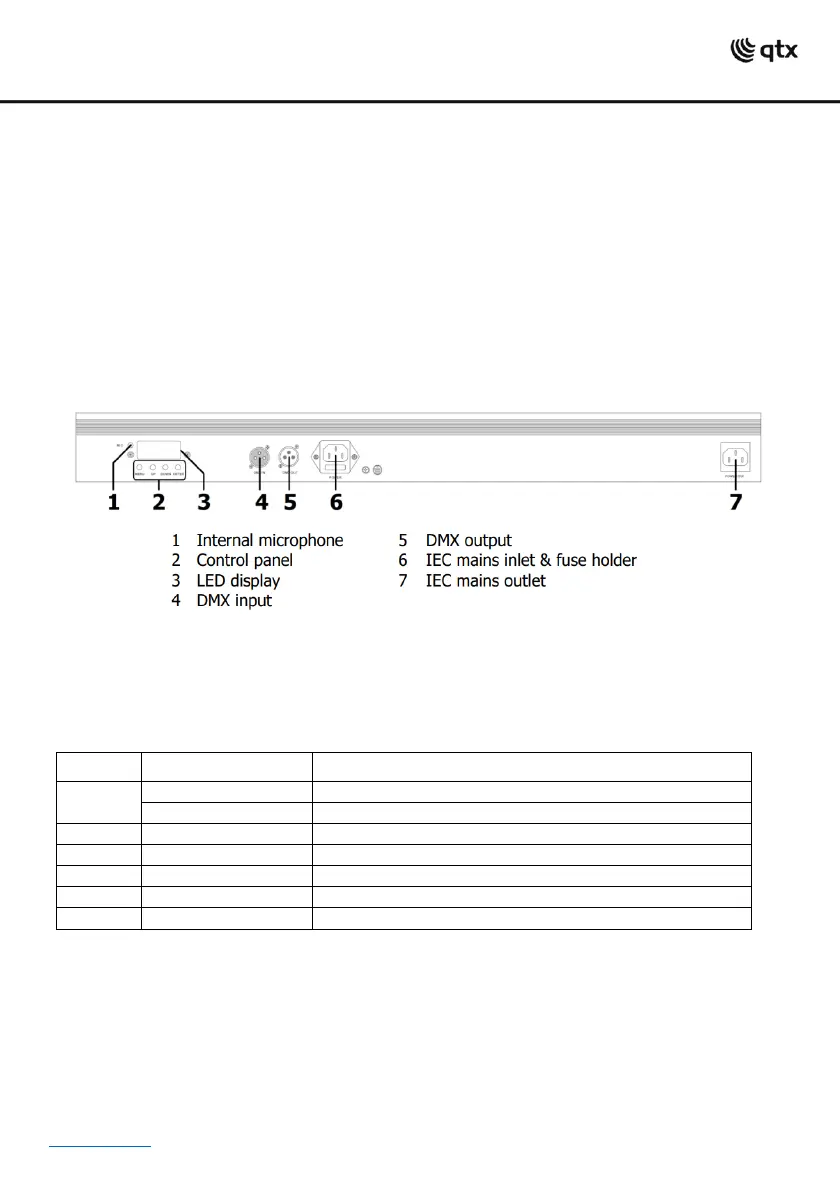

Side panel controls:
Manual control menu:
Press the “MENU” button to enter the settings menu.
Press “UP” and “DOWN” buttons to navigate through various setting functions.
Press “ENTER” button to confirm the desired setting.
Menu
Function
Description
d001
d001 - d512
DMX address settings
CH3/CH7/CH13
DMX channel selection
Au
Au00 - Au16
Automatic modes
FL
FL00 - FL09
Automatic mode strobe – slow to fast
SP
SP00 - SP09
Automatic mode speed – slow to fast
So
So01 - So02
Sound activated modes
Sn
Sn01 - Sn09
Sound activated mode sensitivity adjustment – low to high
DMX mode:
The Tri-Bar can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on
the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping
through the DMX out on the unit. To enter DMX mode, select d001 from the menu and confirm the correct
start address and channel selection by using the “UP” and “DOWN” buttons and “ENTER”. The “d” on
the LED display will begin to flash once it’s received the DMX signal from the controller. This unit has 3, 7
or 13 DMX channels as indicated in the table below:
