Side 1/11
OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
PART NUMBER PP MNL1908, REV. A (08/23)
This manual provides information for:
SELF-CONTAINED
EQUIPMENT STANDS
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED
IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Randell suggests
that if you are suspicious of damage to make a notation on the delivery
receipt. It will be the responsibility of the consignee to le a claim with the
carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Randell reserves the
right to make changes in design and specications without prior notice.
NOTICE: Please read the entire manual carefully before installation. If certain
recommended procedures are not followed, warranty claims will be denied.
MODEL NUMBER _________________________
SERIAL NUMBER _________________________
INSTALLATION DATE ______________________
The serial number is located in the mechanical
housing. An example is shown here.
EQUIPMENT DESCRIPTION
MODEL LENGTH DEPTH HEIGHT DRAWERS
12x20x4
PAN CAPACITY
HP VOLT AMPS NEMA
SHIP WT
(LBS)
(LP)RES1(X)125 38" 32.5" 26" (2) 19" 4 1/4 115 6 5-15P 400
(LP)RES1(X)133 48" 32.5" 26" (2) 27" 4 1/4 115 6 5-15P 400
(LP)RES1(X)138 53" 32.5" 26" (2) 32" 4 1/4 115 6 5-15P 445
(LP)RES1(X)257 72" 32.5" 26" (4) 27" 8 1/4 115 6 5-15P 530
(LP)RES1(X)267 82" 32.5" 26" (2) 32" 8 1/4 115 6 5-15P 600
(LP)RES1(X)387 105" 32.5" 26" (6) 27" 12 1/3 115 7 5-15P 675
(LP)RES1(X)392 114" 32.5" 26" (4) 27", (2) 32" 12 1/3 115 7 5-15P 800
(LP)RES1(X)3102 120" 32.5" 26" (6) 32" 12 1/3 115 7 5-15P 865
(LP)RES1(X)3114 132" 32.5" 26" (4) 32", (2) 44" 12 1/3 115 7 5-15P 875
(LP)RES1(X)3126 144" 32.5" 26" (2) 32", (4) 44" 12 1/3 115 7 5-15P 900
888-994-7636, fax 888-864-7636
uniedbrands.net
Information contained in this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most
updated product information and specications. © 2023 Electrolux Professional, Inc. All Rights Reserved.
2 OM-20000 SERIES LOW PROFILE EQUIPMENT TABLES
INSTALLATION
CAUTION:
THIS UNIT CONTAINS R290 FLAMMABLE REFRIGERANT. USE CAUTION WHEN
HANDLING MOVING AND USE OF THE REFRIGERATOR OR FREEZER. AVOID
DAMAGING THE REFRIGERANT TUBING OR INCREASE THE RISK OF A LEAK.
WARNING:
FAILURE TO FOLLOW INSTALLATION GUIDELINES AND
RECOMMENDATIONS MAY VOID THE WARRANTY ON YOUR UNIT.
WARNING: IT IS IMPORTANT THAT YOUR UNIT HAS ITS OWN DEDICATED LINE.
CONDENSING UNITS ARE DESIGNED TO OPERATE WITH A VOLTAGE
FLUCTUATION OF PLUS OR MINUS 10% OF THE VOLTAGE INDICATED ON
THE UNIT DATA TAG. BURN OUT OF A CONDENSING UNIT DUE TO EXCEEDING
VOLTAGE LIMITS WILL VOID THE WARRANTY.
THE DANFOSS CONTROLLER HAS LOW VOLTAGE PROTECTION AND WILL NOT
OUTPUT VOLTAGE TO THE COMPRESSOR IF VOLTAGE IS LESS THAN 104V.
WARNING: THIS UNIT IS INTENDED FOR USE IN LABORATORIES IN COMMERCIAL,
INDUSTRIAL, OR INSTITUTIONAL OCCUPANCIES AS DEFINED IN THE
SAFETY STANDARD FOR REFRIGERATION SYSTEMS, ASHRAE 15.
SELECTING A LOCATION FOR YOUR NEW UNIT
The following conditions should be considered when selecting a location for
your unit:
1. Floor & Countertop Load: The area on which the unit will rest must be level,
free of vibration, and suitably strong enough to support the combined weights
of the unit plus the maximum product load weight. NOTE: If there is a question
pertaining to weight load limits, consult the factory at 1-888-994-7636.
2. Clearance: Clearance must be a combined total of at least 0 Inches at the
top, 0 inches at the rear, and 0 Inches at each side. Do not place any object
that can block the ventilation exhaust from the machine compartment
register. Area of equipment must be free of all combustible materials. A
minimum of 4” clearance is required between cooking appliances that sit
on top and equipment stand. Temperature at top of the equipment stand to
remain below 100ºF.
3. Ventilation: The air cooled self contained unit requires a sufcient amount
of cool clean air. Avoid surrounding your unit around other heat generating
equipment and out of direct sunlight. Also, avoid locating in an unheated
room or where the room temperature may drop below 70°F (21°C) or rise
above 86°F (32°C).
INSTALLATION CHECKLIST
WARNING: FAILURE TO FOLLOW INSTALLATION GUIDELINES AND RECOMMENDATIONS
MAY VOID THE WARRANTY ON YOUR UNIT.
After the nal location has been determined, refer to the following checklist prior
to start-up:
1. Check all exposed refrigeration lines to ensure that they are not kinked,
dented, or rubbing together.
2. Check that the condenser and evaporator fans rotate freely without striking
any stationary members.
3. Unit must be properly leveled; check all legs or casters to ensure they all are
in contact with the oor while maintaining a level work surface. Adjusting
bullet feet heights or shimming casters may be necessary if the oor is not
level. NOTE: Damage to equipment may result if not followed. Randell is
not responsible for damage to equipment if improperly installed.
4. Plug in the unit and turn on using the Danfoss controller.
5. Allow unit time to cool down to temperature. if temperature adjustments
are requirement, the control is located on the front panel. Conrm the unit
is holding the desired temperature.
5. Refer to the front of this manual for serial number location. Please record this
information in your manual. It will be necessary when ordering replacement
parts or requesting warranty service.
6. Before putting in food, allow your unit to operate for approximately two (2)
hours so that interior of the unit is cooled down to storage temperature.
7. Check drawer to ensure the drawer slides freely and fully extends along with
seating into the cabinet properly when closed.
ELECTRICAL SUPPLY
WARNING: IT IS IMPORTANT THAT A VOLTAGE READING BE MADE AT THE COMPRESSOR
MOTOR ELECTRICAL CONNECTIONS, WHILE THE UNIT IS IN OPERATION
TO VERIFY THE CORRECT VOLTAGE REQUIRED BY THE COMPRESSOR IS
BEING SUPPLIED. LOW OR HIGH VOLTAGE CAN DETRIMENTALLY AFFECT
OPERATION AND THEREBY VOID ITS WARRANTY.
WARNING: IT IS IMPORTANT THAT YOUR UNIT HAS ITS OWN DEDICATED LINE.
CONDENSING UNITS ARE DESIGNED TO OPERATE WITH A VOLTAGE
FLUCTUATION OF PLUS OR MINUS 10% OF THE VOLTAGE INDICATED ON THE
UNIT DATA TAG. BURN OUT OF A CONDENSING UNIT DUE TO EXCEEDING
VOLTAGE LIMITS WILL VOID THE WARRANTY.
IMPORTANT - READ FIRST - IMPORTANT
INTERIOR EVAPORATOR COVER
EXTERIOR OF UNIT
RISK OF FIRE OR EXPLOSION.
FLAMMABLE REFRIGERANT USED.
DO NOT USE MECHANICAL DEVICES
TO DEFROST REFRIGERATOR. DO NOT
PUNCTURE REFRIGERANT TUBING.
RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. NO
UTILICE DISPOSITIVOS MECÁNICOS PARA DESCONGELAR EL REFRIGERADOR. NO
PERFORE LA TUBERÍA DEL REFRIGERANTE.
RISQUE D’INCENDIE OU
D’EXPLOSION.
INFLAMMABLE
RÉFRIGÉRANT UTILISÉ.
NE PAS UTILISER DE
DISPOSITIFS
MÉCANIQUES POUR
DÉGIVRER LE
RÉFRIGÉRATEUR. NE
FAIRE AUCUN TUBE
RÉFRIGÉRANT DE
PONCTION.
DANGER
SB6.1.2
WARNING ALERTE
CAUTION ATTENTIÓN
DO NOT REMOVE PANEL - HIGH VOLTAGE -
QUALIFIED PERSONNEL ONLY
NE PAS RETIRE LE PANNEAU - HAUTE TENSION -
PERSONNEL QUALIFIÉ SEULEMENT
NO RETIRE EL PANEL - ALTA TENSIÓN -
CALIFICADO PERSONAL
MOVING PARTS, DO NOT OPERATE
WITH COVER REMOVED
PIÉCES MOBILES NE PAS FAIRE
FONCTIONNER SANS COUVERCLE
LAS PIEZAS DE MOVIMIENTO NO FUNCIONAN
CON LA CUBIERTA RETIRADA
PP LBL1701 REV B
LABEL DIMENSION: 9 in x 3.25 in
RISK OF FIRE OR EXPLOSION.
DISPOSE OF PROPERLY IN
ACCORDANCE WITH FEDERAL OR
LOCAL REGULATIONS.
FLAMMABLE REFRIGERANT USED.
PRECAUCIÓN RIESGO DE INCENDIO O EXPLOSIÓN. DESÉCHELO ADECUADAMENTE CONFORME
A REGLAMENTOS FEDERALES O LOCALES. REFRIGERANTE INFLAMABLE UTILIZADO.
MISE EN GARDE RISQUE
D’INCENDIE OU
D’EXPLOSION. ÉLIMINER
(or DISPOSER)
CORRECTEMENT
CONFORMÉMENT AUX
RÉGLEMENTATIONS
FÉDÉRALES OU LOCALES.
RÉFRIGÉRANT
INFLAMMABLE UTILISÉ.
SB6.1.4
LABEL DIMENSION: 6 in x 2.75 in
PP LBL1704 REV B
CAUTION
RISK OF FIRE OR EXPLOSION DUE TO
PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY.
FLAMMABLE REFRIGERANT USED.
PRECAUCIÓN RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACIÓN DE LA TUBERÍA DE
REFRIGERANTE; SIGA CUIDADOSAMENTE LAS INSTRUCCIONES DE MANEJO. REFRIGERANTE
INFLAMABLE UTILIZADO.
MISE EN GARDE RISQUE
D’INCENDIE OU
D’EXPLOSION EN RAISON
DE LA PERFORATION DU
TUBE RÉFRIGÉRANT;
SUIVEZ ATTENTIVEMENT
LES INSTRUCTIONS DE
MANIPULATION.
RÉFRIGÉRANT
INFLAMMABLE UTILISÉ.
CAUTION
SB6.1.5
PP LBL1705 REV B
LABEL DIMENSION: 6.25 in x 2.8 in
RISK OF FIRE OR EXPLOSION. FLAMMABLE
REFRIGERANT USED. CONSULT REPAIR MANUAL
/ OWNER’S GUIDE BEFORE ATTEMPTING TO
INSTALL OR SERVICE THIS PRODUCT. ALL
SAFETY PRECAUTIONS MUST BE FOLLOWED.
PRECAUCIÓN RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE EL MANUAL DE REPARACIÓN /
MANUAL DEL USUARIO ANTES DE INSTALAR O REPARAR ESTE PRODUCTO. DEBEN SEGUIRSE LAS PRECAUCIONES DE SEGURIDAD.
MISE EN GARDE RISQUE
D’INCENDIE OU
D’EXPLOSION. RÉFRIGÉRANT
INFLAMMABLE UTILISÉ.
CONSULTER LE MANUEL DE
RÉPARATION / GUIDE DE
L’UTILISATEUR AVANT
D’ESSAYER D’INSTALLER OU
DE RÉPARER CE PRODUIT.
TOUTES LES PRÉCAUTIONS
DOIVENT ÊTRE RESPECTÉES.
SB6.1.3.b
PP LBL1703 REVB
LABEL DIMENSION: 7.5 in x 5.36 in
SB6.1.3.a
RISK OF FIRE OR EXPLOSION. FLAMMABLE
REFRIGERANT USED. TO BE REPAIRED ONLY
BY TRAINED SERVICE PERSONNEL. DO NOT
PUNCTURE REFRIGERANT TUBING.
PELIGRO RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. DEBE SER REPARADO
SOLAMENTE POR PERSONAL DE SERVICIO CAPACITADO. NO PERFORE LA TUBERÍA DEL REFRIGERANTE.
DANGER RISQUE
D’INCENDIE OU
D’EXPLOSION.
RÉFRIGÉRANT
INFLAMMABLE UTILISÉ.
POUR ÊTRE RÉPARÉ QUE
PAR UN TECHNICIEN
QUALIFIÉ. NE PAS
PERFORER LE TUBE
RÉFRIGÉRANT.
CAUTION
DANGER
NEAR EXPOSED REFRIGERANT TUBING
NEAR MACHINE COMPARTMENT AND NAMEPLATE
3 OM-20000 SERIES LOW PROFILE EQUIPMENT TABLES
The wiring should be done by a qualied electrician in accordance with local
electrical codes. A properly wired and grounded outlet will assure proper
operation. Please consult the data tag attached to the compressor to ascertain
the correct electrical requirements. Supply voltage and amperage requirements
are located on the serial number tag located inside the mechanical housing.

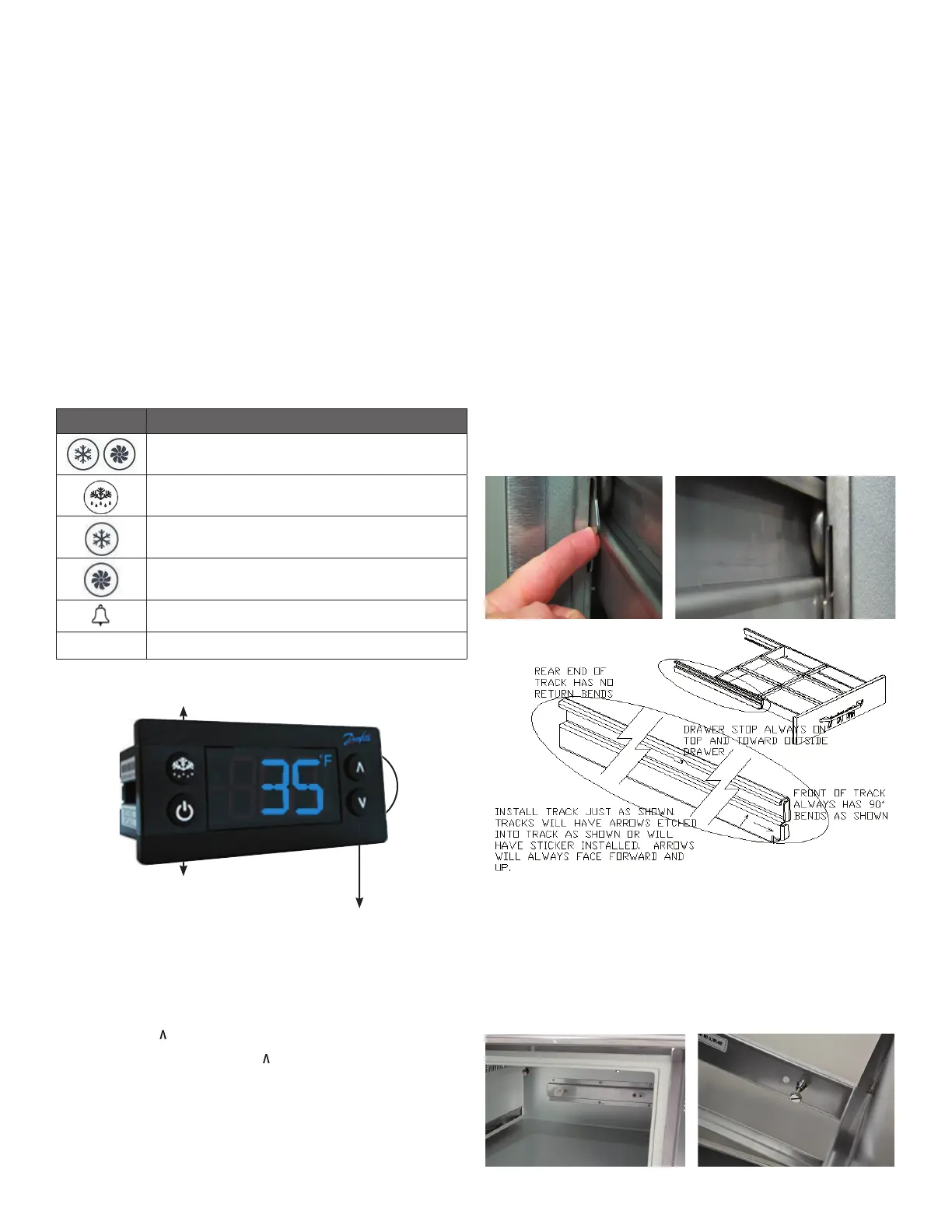

OPERATION
Allow unit to operate for approximately two (2) hours before placing in food.
AMBIENT CONDITIONS
Unit is designed for normal operating temperatures between 70° F (21°C) - 86°F
(32°C). Operating outside of those temperatures may cause premature product
wear or failure.
Randell has attempted to preset the temperature control to ensure that your
unit runs at an optimum temperature, but due to varying ambient conditions,
including elevation, food type and your type of operation, you may need to alter
this temperature using control adjustment until desired temperature is reached.
DANFOSS CONTROLLER OPERATION
LED FUNCTION
Compressor energized & Evaporator fan de-energized
Defrost in progress
Fans delay after defrost completion
Evaporator fan energize
An alarm is occurring
ºC / ºF
Temperature unit
POWER ON / OFF
MANUAL DEFROST
CHANGE SET POINT
POWER ON / OFF: Press and hold the power button until LED display turns On / Off
MANUAL DEFROST: Press and hold “Defrost” Button
CHANGE SET POINT: To raise temperature
1. Press and hold “ ” to access set point.
2. When set point start ashing, Press “ ” to adjust set point.
3. After 30 seconds, the display automatically reverts to showing the current
temperature.
CHANGE SET POINT: To lower temperature
1. Press and hold “v” to access set point.
2. When set point start ashing, Press “v” to adjust set point.
3. After 30 seconds, the display automatically reverts to showing the current
temperature.
CHANGE FROM ºF /ºC :
1. Press the up/down buttons simultaneously for 5 seconds to access the menu.
2. Password is requested. Password is 000.
3. Press the bottom left button to OK the password.
4. Using the up/down buttons, navigate to the “diS” level. Press the bottom left
button to OK the selection.
5. Using the up/down buttons, navigate to the “CFu” level. Press the bottom left
button to OK the selection.
a. “-F” designates Fahrenheit.
b. “-C” designates Celsius.
6. Press the top left button repeatedly to return to exit and return to the home
screen.
DRAWER REMOVAL
1. Fully extend the drawer that is to be removed.
2. Remove product pans from drawer.
3. Lift up the drawer stop tabs on each side of drawer track.
4. Pull drawer out while lifting the tabs.
DRAWER INSTALLATION
To remove and re-install individual drawers and drawer tracks, please refer to the
gure above for proper installation instructions.
DRAWER CARTRIDGE SYSTEM REMOVAL
Drawer cartridge system has a single plate in rear to hold in place. To remove the
entire drawer system, unscrew the thumb screws on rear wall to detach system
from the plate. See gures below.

Produkspesifikasjoner

Merke: Randell
Kategori: Ikke kategorisert
Modell: FX-2CS-290

Trenger du hjelp?

Hvis du trenger hjelp med Randell FX-2CS-290 still et spørsmål nedenfor, og andre brukere vil svare deg


Ikke kategorisert Randell Manualer

Randell

Randell FX-2CS-290 Bruksanvisning

21 September 2025
Randell

Randell 3300 Bruksanvisning

20 September 2025
Randell

Randell FX-1-290 Bruksanvisning

20 September 2025
Randell

Randell FX-2UCB-290 Bruksanvisning

20 September 2025
Randell

Randell FX-1RE-290 Bruksanvisning

20 September 2025
Randell

Randell 3500 Bruksanvisning

20 September 2025

Ikke kategorisert Manualer

Nyeste Ikke kategorisert Manualer

Servend

Servend CEV-30 Bruksanvisning

21 September 2025
Cylinda

Cylinda MK2000PV Bruksanvisning

21 September 2025
Cylinda

Cylinda KAB1SS Bruksanvisning

21 September 2025
Cylinda

Cylinda KAB1BL Bruksanvisning

21 September 2025
Cylinda

Cylinda VK85SVG Bruksanvisning

21 September 2025
Lakeside

Lakeside 933 Bruksanvisning

21 September 2025
Inoksan

Inoksan PDG113MN Bruksanvisning

21 September 2025
Bioogród

Bioogród 730721 Bruksanvisning

21 September 2025
Bioogród

Bioogród 730711 Bruksanvisning

21 September 2025
Valley Craft

Valley Craft F89700 Bruksanvisning

21 September 2025
