Before beginning any installation, follow these simple rules:
1. Be sure to carefully read and understand the instructions before attempting to
install these speakers.
2. For safety, disconnect the negative lead from the battery prior to beginning the
installation.
3. For easier assembly, we suggest you run all wires prior to mounting your speakers
in place.
4. Use high quality connectors for a reliable installation and to minimize signal or
power loss.
5.
Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines,
brake or hydraulic lines, vacuum lines or electrical wiring when working on any
vehicle. If installation in a boat, take care not to cut or drill through the main hull.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle or
hull area provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic
grommets to protect any wires routed through metal, especially the firewall.
1. Determine where the speakers will be mounted. Ensure an area large enough for
the speaker to mount evenly. Be sure that the mounting location is deep enough
f
or the speaker to fit; if mounting in a door, operate all functions (windows, locks,
etc.) through their entire operating range to ensure there is no obstruction.
2. Refer to the specification chart to determine the proper diameter hole to cut
for your speaker model.The template provided also gives the proper cutout size.
3. Mark the locations for the mounting screws. Drill the holes with a 1/8" bit.
4. Feed the speaker wires through the cutout and connect to the speaker terminals.
Be sure to observe proper polarity when connecting the wires.The speaker's
positive terminal is indicated with a "+".
5.
On models with slotted holes,
fit the speak
er into the cutout and install the
screws in the slots at the top and bottom.This will allow you to rotate the speak-
er to match the remaining mounting holes.When aligned, tighten the screws.
6.
Tighten the scr
e
ws until the speak
er is snug in place to prevent rattling. Do not
over tighten the screws.
NOTE:
If needed use the adapter plate pr
ovided to mount the speaker
. See
Adapter Plate Templates at the end of this manual.
SAFETY
CARTON CONTENTS
CAUTION: Before installation, disconnect the battery
negative (-) terminal to prevent damage
to the unit, fire and/or possible injury.
• (1) Set P1 Series Speakers with Tweeters or
P1T-S Tweeter System with Crossover
• (1) Set of grilles/trim rings
• Mounting Hardware and Tweeter Surface,Angle, and Flush Mounts
INSTALLATION CONSIDERATIONS
MOUNTING

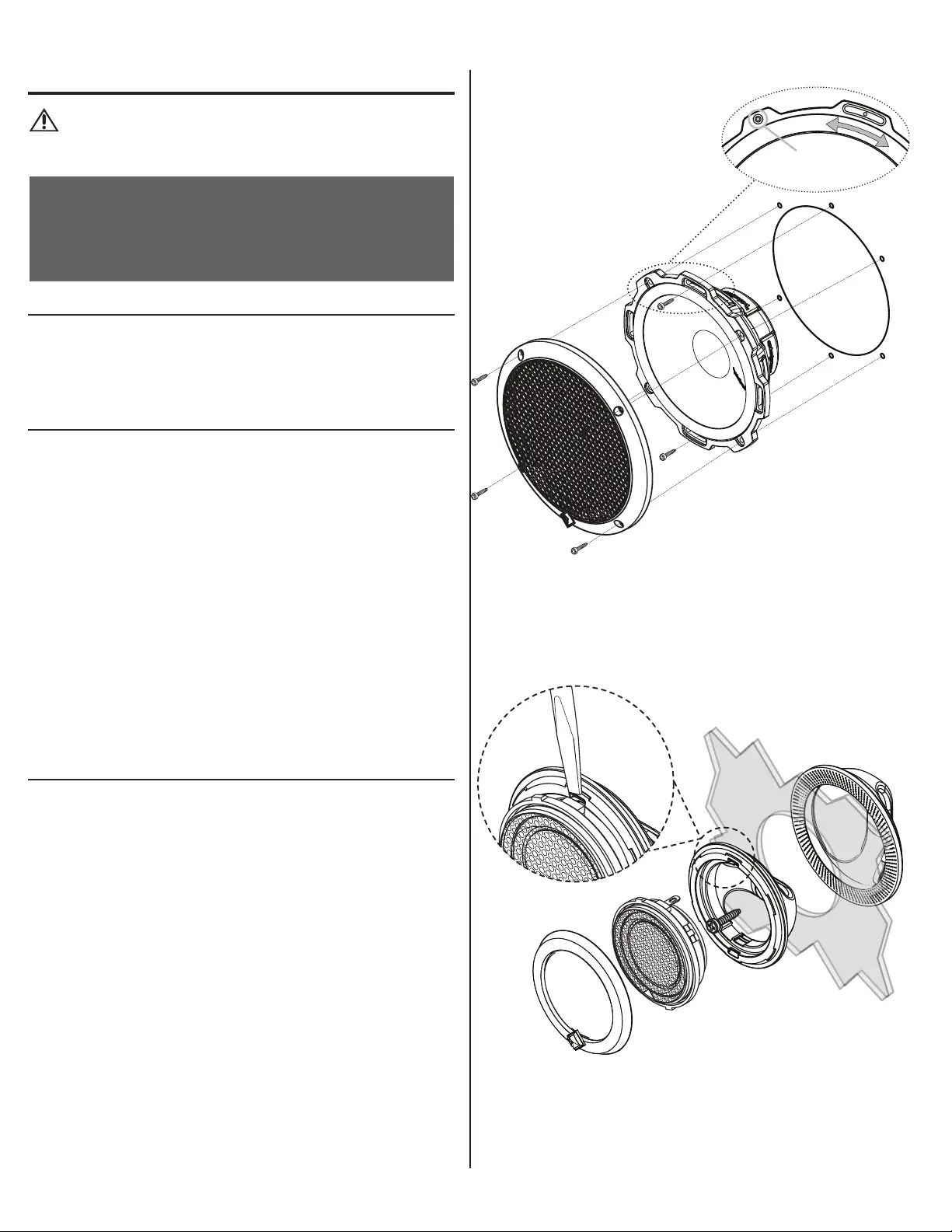

Cutout
Hole
Pos
ition to
Align Holes
Example of standard door installation
Use tip of a small flat
screwdriver to remove tweeter
Example of Discreet Dual Clamp (DDC™)
Tweeter Mounting (Flush Mount)
Panel
Cutout
Hole
Position to
Align Holes
Example of standard door installat
Use tip of a small flat
screwdriver to remove tweeter
Example of Discreet Dual Clamp (DDC™)
Twe eter Mounting (Flush Mount)
Panel
PRACTICE SAFE SOUND™
Contin
uous exposure to sound pressure levels over 100dB may
cause permanent hearing loss. High powered auto sound systems
may produce sound pressure levels well over 130dB. Use common
sense and practice safe sound.
