Side 1/5
V: 4/24/2023 - 1
Connecting your Business
D785 / D785N
Bluetooth
(only D785)
USB port
Power over
Ethernet
(PoE)
IPv6 & IPv4
Gigabit
Ethernet
Expansion
module
connectable
Headset
connectable
SmartDisplay
Security (TLS
& SRTP)
OpenVPN HD audio
The next generation of VoIP
The IP desk phone D787 offers the highest demands
and intuitive ease of use with its elegant, timeless
and modern design, its large high-resolution colour
display, its additional SmartDisplay and the revised
user interface. Thanks to the latest technical
“Engineered in Germany” know-how, a previously
unattained HD audio quality is possible. The
integrated WLAN interface allows wireless
connectivity.
V: 4/24/2023 - 1 ©2023 Snom Technology GmbH 2/5

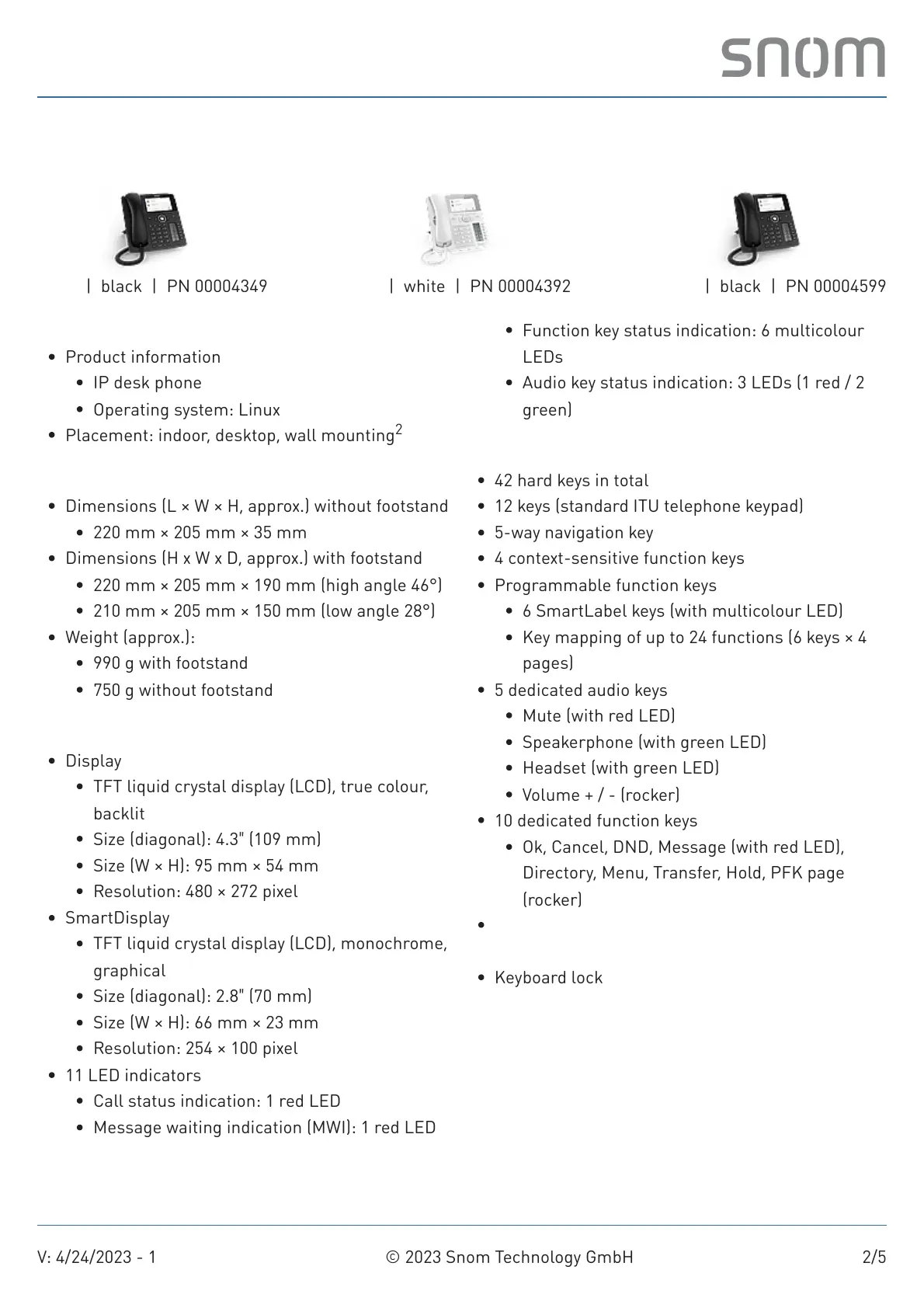

Technical specification
Product variants
D785 | black | PN 00004349 D785 | white | PN 00004392 D785N | black | PN 00004599
Basics
Product information
IP desk phone
Operating system: Linux
Placement: indoor, desktop, wall mounting
2
Dimensions and weight
Dimensions (L × W × H, approx.) without footstand
220 mm × 205 mm × 35 mm
Dimensions (H x W x D, approx.) with footstand
220 mm × 205 mm × 190 mm (high angle 46°)
210 mm × 205 mm × 150 mm (low angle 28°)
Weight (approx.):
990 g with footstand
750 g without footstand
Display and indicators
Display
TFT liquid crystal display (LCD), true colour,
backlit
Size (diagonal): 4.3″ (109 mm)
Size (W × H): 95 mm × 54 mm
Resolution: 480 × 272 pixel
SmartDisplay
TFT liquid crystal display (LCD), monochrome,
graphical
Size (diagonal): 2.8″ (70 mm)
Size (W × H): 66 mm × 23 mm
Resolution: 254 × 100 pixel
11 LED indicators
Call status indication: 1 red LED
Message waiting indication (MWI): 1 red LED
Function key status indication: 6 multicolour
LEDs
Audio key status indication: 3 LEDs (1 red / 2
green)
Keypad and function keys
42 hard keys in total
12 keys (standard ITU telephone keypad)
5-way navigation key
4 context-sensitive function keys
Programmable function keys
6 SmartLabel keys (with multicolour LED)
Key mapping of up to 24 functions (6 keys × 4
pages)
5 dedicated audio keys
Mute (with red LED)
Speakerphone (with green LED)
Headset (with green LED)
Volume + / - (rocker)
10 dedicated function keys
Ok, Cancel, DND, Message (with red LED),
Directory, Menu, Transfer, Hold, PFK page
(rocker)
Expansion module connection via USB port for up
to 3 × D7 / D7C
2
Keyboard lock
