USB AUDIO INTERFACE

UR12 Operation Manual 2

Contents

Message from

the Development Team..........................2

Panel Controls and Terminals ..............3

Front Panel ................................................... 3

Rear Panel .................................................... 4

Software........................................................ 6

Using the UR12.......................................9

Connection Examples ................................... 9

Configuring Audio Driver Settings

on the DAW Software ................................. 10

Recording/Playback .................................... 10

Troubleshooting...................................13

Appendix...............................................15

Block Diagrams........................................... 15

Message from the

Development Team

Thank you for choosing the UR12 USB audio interface.

The UR12 is the most basic model in the popular and

extensive UR series. The UR12 features a solid body and

design, and is the result of a never-ending flow of

development ideas that fulfill the UR series' commitment to

audio quality—all in a compact package that has only

those components that are absolutely necessary for basic

music production.

The input routing is extremely simple, with a single mic

preamp and a single HI-Z input jack. The mic preamp

features the same "D-PRE" specifications as more

advanced models in this series, for the same commitment

to audio quality. In order to achieve the perfect balance

between relaxed highs, dense mids, and a punchy low

end, each component was carefully selected to design a

basic model with a strong focus on sound quality.

The UR12 supports Windows, Mac, and iPad

environments, to meet your needs for easy music

production in a variety of situations with trademark UR-

series audio quality. A 5V DC port has been provided to

supply sufficient power to the UR12 when using it with an

iPad. You can connect a USB power adapter or USB

mobile battery to this port. A stable power supply allows

this audio interface to perform at its maximum potential.

This is one of the design decisions that allow you to

achieve high-quality music production with the UR12 in a

variety of environments.

There have been significant changes in music production

environments recently. The UR12 has been designed with

those changes in mind, and we hope that the UR12 helps

more people enjoy music production, with greater ease of

use and optimum audio quality, in a variety of situations

and environments—so that you can fulfill your musical

hopes and dreams.

The Steinberg Hardware

Development Team

Panel Controls and Terminals

UR12 Operation Manual 3

Panel Controls and Terminals

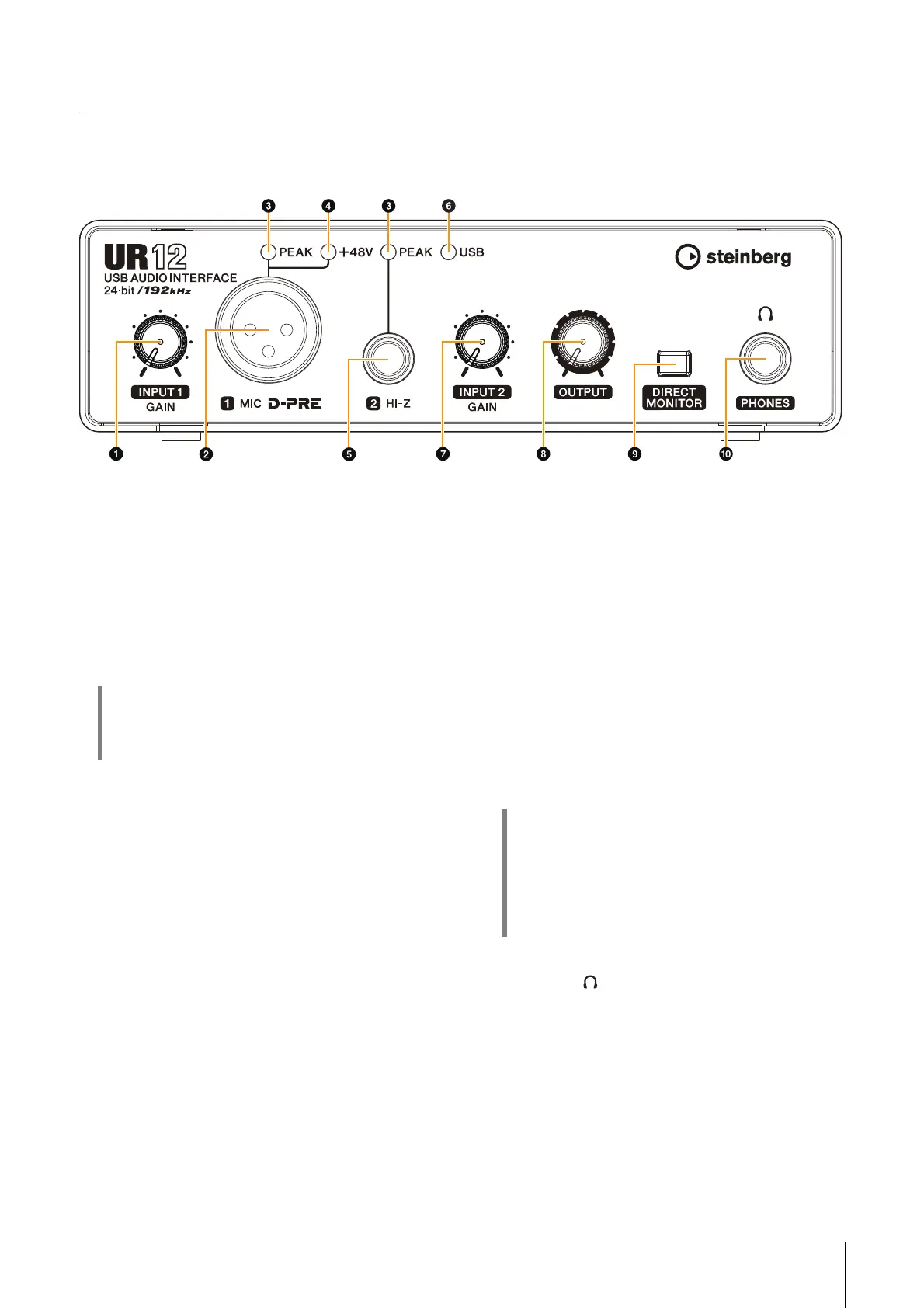

Front Panel

1 [INPUT 1 GAIN] knob

Adjusts the input signal level of the [MIC] jack.

2 [MIC] jack

For connecting a microphone.

3 [PEAK] indicator

Lights up when the input signal is 3dB below the

clipping level.

4 [+48V] indicator

Lights up when the [+48V] switch (phantom power) is

turned on. The [+48V] switch is on the rear panel.

5 [HI-Z] jack

For connecting instruments with a high output

impedance, such as electric guitars and basses. Use a

phone-type (unbalanced) cable for connection.

6 [USB] indicator

Lights up when the power is turned on. If the computer

or iPad does not recognize the device, this flashes

continuously.

7 [INPUT 2 GAIN] knob

Adjusts the input signal level of the [HI-Z] jack.

8 [OUTPUT] knob

Adjusts the output signal level of the [PHONES] and

[LINE OUTPUT] jacks. The output signal level of the

[PHONES] and [LINE OUTPUT] jacks are adjusted

simultaneously.

NOTE

Whenusingheadphones,turndownthevolumeoftheamp

ormonitorspeakersthatareconnectedtothe[LINE

OUTPUT]jackbeforeadjustingthisknob.

9 [DIRECT MONITOR] switch

Turns the DIRECT MONITOR function on (O) or off (N).

When the DIRECT MONITOR function is turned on, the

audio signal sent from the computer and the audio

signal input from the [MIC]/[HI-Z] jacks are output

directly to the [PHONES]/[LINE OUTPUT] jacks.

) [PHONES ] jack

For connecting a set of headphones.

HINT

Setting optimum recording levels

Adjust the gain knobs so that the [PEAK] indicator

flashes briefly at the loudest input volume.

HINT

Using this switch

To monitor audio from the input jacks via the DAW

software (for example, when you also want to hear the

software effects), turn this switch off. If the software

latency bothers you, or if you always want to monitor the

input signal, turn this switch on.
