Side 1/32

USB AUDIO INTERFACE

UR242 Operation Manual 2

Contents

Message from the Development Team

.......2

Panel Controls and Terminals ..............3

Front Panel ................................................... 3

Rear Panel .................................................... 5

Software........................................................ 6

Using the UR242...................................22

Connection Examples ................................. 22

Configuring Audio Driver Settings on the

DAW Software ............................................ 23

Recording/Playback .................................... 23

Troubleshooting...................................25

Appendix...............................................27

Limitations on the use of effects ................. 27

Block Diagrams........................................... 28

Message from the

Development Team

Thank you for choosing the UR242 USB Audio Interface.

The UR242 offers the same sonic quality and functions as

the previously released UR44, but a compact design with

two microphone preamps rather than four makes it closer

in size to the UR22.

Like all UR series models, D-PRE microphone preamp

parts selection and circuit design have been carried out

with meticulous care and attention to detail. The highs are

extended and open, the midrange dense and detailed, and

the lows deliver solid punch. The UR242 inherits the highly

regarded sonic character of the Yamaha n8 and n12 Digital

Mixing Studios, the Steinberg MR816 series audio

interfaces, and of course the UR series.

The UR242 combo inputs feature pads that allow a wide

range of sources, from high sensitivity microphones to line

level devices, to be connected while fully retaining even the

subtlest musical nuances. The level controls have been

designed with extra care to ensure minimum noise when

recording.

No compromises have been made in the outputs that drive

the monitor speakers either. Every effort has been made to

ensure that spatial depth is accurately reproduced so that

our users can accurately hear width, depth, and the tiniest

variations in loudness in exquisite detail.

Built-in DSP delivers the same refined sonic quality and

creative potential as the high-end models, with features like

True Integrated Monitoring for ultra-low-latency recording,

REV-X reverb effects, a Channel Strip that is packed with

professional compression and equalization know-how, and

Guitar Amp Classics featuring modeled guitar amplifiers

from the vintage era through to heavier modern sounds.

Expandability is enhanced by iOS support that provides

simple plug-and-play operation with the Apple iPad. With

an iPad and an iOS compatible audio application such as

Steinberg Cubasis it is easy to record and create with

impressive quality just about anywhere. There’s also a

loopback function that can be handy for video delivery in

today’s fast-paced Internet environment.

High-quality recording that anyone can enjoy is here. We

sincerely hope that the UR242 will contribute to the

creative efforts of beginners as well as professionals.

The Steinberg Hardware

Development Team

Panel Controls and Terminals

UR242 Operation Manual 3

Panel Controls and Terminals

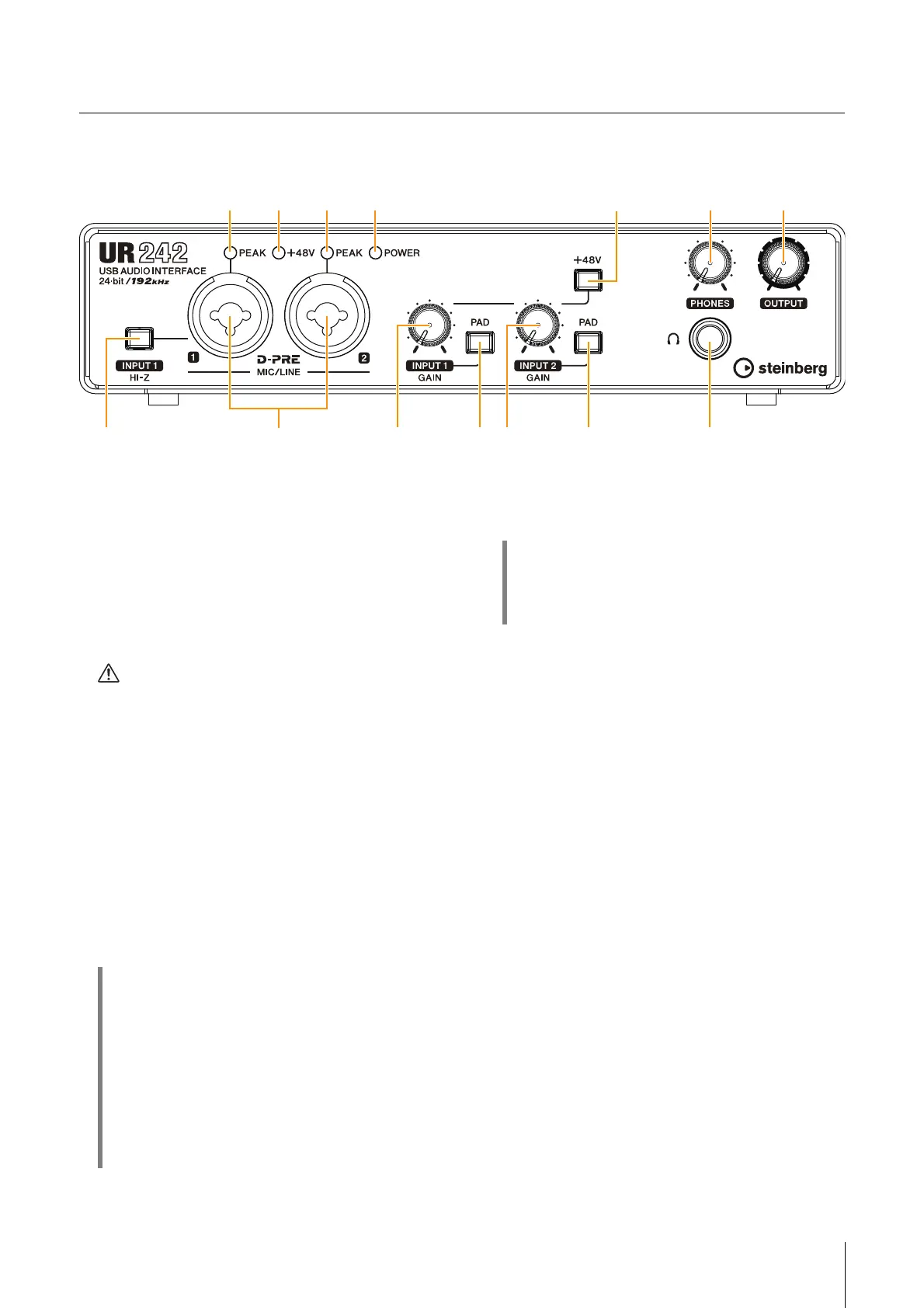

Front Panel

1 [INPUT 1 HI-Z] switch

Switches the input impedance (on O/ off N). Turn this

switch on when connecting high impedance

instruments, such as an electric guitar or electric bass,

directly to the [MIC/LINE 1] jack. When you turn this

switch on, use an unbalanced phone plug for

connection between the instruments and the [MIC/LINE

1] jack. If you use a balanced phone plug, this device

will not work correctly.

CAUTION

• Do not connect or disconnect a device while turning

on the [INPUT 1 HI-Z] switch. Doing so can damage

the connected device and/or the unit itself.

• To protect your speaker system, leave the monitor

speakers turned off when turning the [INPUT 1 HI-Z]

switch on/ off. It’s also a good idea to turn all output

level controls down to their minimum. Neglect of

these precautions may result in loud noise bursts

that may damage your equipment, your ears, or both.

2 [MIC/LINE 1/2] jack

For connecting to a microphone or digital instrument.

This jack can be connected to both XLR-type and

phone-type (balanced/unbalanced).

3 [PEAK] indicator

Lights up when the input signal is 3 dB below the

clipping level.

4 [+48V] indicator

Lights up when the [+48V] switch (phantom power) is

turned on.

5 [POWER] indicator

Lights up when the power is turned on. If the computer

or iPad does not recognize the device, this flashes

continuously.

6 [INPUT 1 GAIN] knob

Adjusts the input signal level of the [MIC/LINE 1] jack.

7 [PAD] switch

Turning the switch on (O) will attenuate the sound input

to the unit. If you hear distortion, turn this switch on (

O).

8 [INPUT 2 GAIN] knob

Adjusts the input signal level of the [MIC/LINE 2] jack.

34 5

) !3

HINT

Proper use of the HI-Z or LINE inputs

HI-Z:

• Guitar and bass with passive pickups (not battery

powered)

LINE:

• Effect device, preamp, direct box

• Guitar and bass with active pickups (battery powered)

• Digital instruments, such as synthesizers

HINT

Setting optimum recording levels

Adjust the gain knobs so that the [PEAK] indicator

flashes briefly at the loudest input volume.

Produkspesifikasjoner

Merke:	Steinberg
Kategori:	Hi-fi system
Modell:	UR242
Vekt:	1300 g
Bredde:	198 mm
Dybde:	159 mm
Høyde:	47 mm
MIDI inn:	Ja
Produktfarge:	Sort
Hodetelefon ut:	Ja
Lydinngang (V/H) inn:	1
Modell/Type:	Forforsterker
Kroppsmateriale:	Metall
MIDI-utgang:	Ja
Lydutgang (venstre/høyre):	1
Korrekt bruk:	Konsert/studio
Prøvehastighet:	192 kHz
