Operation Manual

USB AUDIO INTERFACE

Main Features

UR22C Operation Manual 2

Contents

Main Features ...........................................2

Panel Controls and Terminals ................3

Front Panel ..........................................................3

Rear Panel ...........................................................5

Software ....................................................6

Yamaha Steinberg USB Driver ............................6

dspMixFx UR-C....................................................8

Dedicated Windows for Cubase Series .............13

Sweet Spot Morphing Channel Strip ..................16

REV-X ................................................................18

Guitar Amp Classics ..........................................20

Using with a Computer ..........................23

Connection Example..........................................23

Configuring Audio Driver Settings on the DAW

Software.............................................................24

Recording/Playback ...........................................25

Using with an iOS Device ......................27

Connection Example..........................................27

Recording/Playback ...........................................28

Troubleshooting.....................................30

Appendix.................................................33

Limitations on the use of effects ........................33

Computer connector types.................................33

Signal Flows.......................................................34

Block Diagrams ..................................................35

Technical Specifications ....................................37

General Specifications .......................................38

Uninstalling TOOLS for UR-C ............................39

Main Features

2 x 2 USB 3.0 Audio Interface with 2 x

D-PRE and 32-bit/192 kHz support

The UR22C is a 2-in and 2-out USB 3.0 audio

interface, featuring two world-renowned D-PRE

microphone preamps and supporting 192 kHz and

32-bit audio quality to capture all the subtleties and

expressiveness of any audio source.

True 32-bit resolution

The UR22C and the Yamaha Steinberg USB Driver

support the 32-bit Integer format, which can

represent audio data in higher resolution compared

to Float format. Together with a DAW (such as

Cubase) which can fully utilize the 32-bit Integer

data, they enable unprecedented audio resolution in

your music production.

USB 3.0 & USB Type-C

The UR22C is equipped with a USB Type-C port and

features USB 3.0 (USB 3.1 Gen 1) SuperSpeed

mode. It also provides full compatibility with the

USB 2.0 High-Speed mode and includes a Type-C

to Type-A cable.

dspMixFx

The dspMixFx technology is powered by the latest

SSP3 DSP chip and offers latency-free monitoring

with highly acclaimed DSP effects, including REV-X

reverb, for users of any DAW software.

Panel Controls and Terminals

UR22C Operation Manual 3

Panel Controls and Terminals

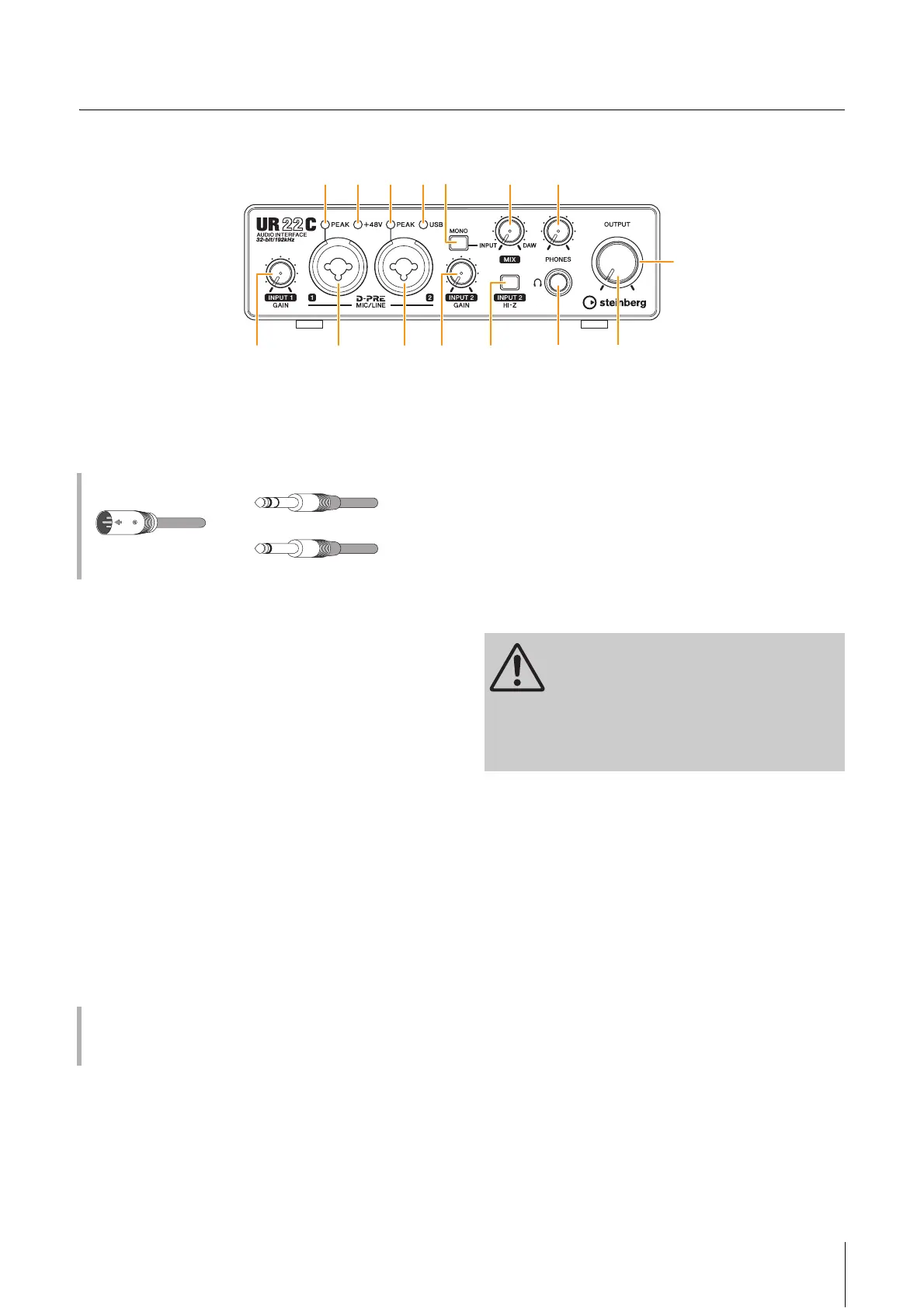

Front Panel

1 [MIC/LINE 1] jack

For connection to a microphone or digital instrument. This

jack can be connected to both XLR-type and phone-type

(balanced/unbalanced) plugs.

NOTE

The phantom power will be supplied to the XLR jack connected

to the [MIC/LINE 1] jack.

2 [INPUT 1 GAIN] knob

Adjusts the input signal level of the [MIC/LINE 1] jack.

3 [MIC/LINE 2] jack

For connection to a microphone, digital instrument,

electric guitar, or electric bass. This jack can be

connected to both XLR-type and phone-type (balanced/

unbalanced) plugs.

NOTE

The phantom power will be supplied to the XLR jack connected

to the [MIC/LINE 2] jack.

4 [INPUT 2 GAIN] knob

Adjusts the input signal level of the [MIC/LINE 2] jack.

5 [PEAK] indicator

Lights up according to the input signal. Lights up when

the input signal is 3 dB below the clipping level.

6 [+48V] indicator

Lights up when the [+48V] switch (phantom power) is

turned on.

7 [USB] indicator

Lights up when the power is turned on and the unit is

communicating with the computer or iOS device. The

indicator flashes continuously when the computer or iOS

device does not recognize the device.

8 [INPUT 2 HI-Z] switch

Switches the input impedance (on O/off N). Turn this

switch on when connecting high impedance instruments,

such as an electric guitar or electric bass, directly to the

[MIC/LINE 2] jack. When you turn this switch on, use an

unbalanced phone plug for connection between the

instruments and the [MIC/LINE 2] jack.

NOTICE

Do not connect or disconnect any cables while turning on the

[INPUT 2 HI-Z] switch. Doing so can damage the connected

device and/or the unit itself.

NOTE

• If you use a balanced phone plug, the device will not work

correctly.

• When the HI-Z switch is turned on, the signal from the XLR-

type is cut off.

9 [MONO] switch

When this switch is on, the input to the [MIC/LINE 1/2]

jacks is output to both the [MAIN OUT L/R] jacks and the

L/R channel of the [PHONES] jack. When the switch is off,

the input to the [MIC/LINE 1] jacks is output to the [MAIN

OUT L] jack and the input to the [MIC/LINE 2] jacks is

output to the [MAIN OUT R] jack.

For the [PHONES] jack, the input to the [MIC/LINE 1]

jacks is output to the L channel and the input to the [MIC/

LINE 2] jacks is output to the R channel.

! #

1 32 4 8

65 5 7 ) @9

Plug types

Setting optimum recording levels

Adjust the [INPUT GAIN] knobs so that the [PEAK]

indicator flashes briefly at the loudest input volume.

XLR-type (balanced)

Phone-type (balanced)

Phone-type (unbalanced)

CAUTION

To protect your speaker system, leave the

monitor speakers turned off when turning the

[INPUT 2 HI-Z] switch on/off. It’s also a good idea

to turn all output level controls down to their

minimum. Neglect of these precautions may

result in loud noise bursts that may damage

your equipment, your ears, or both.
