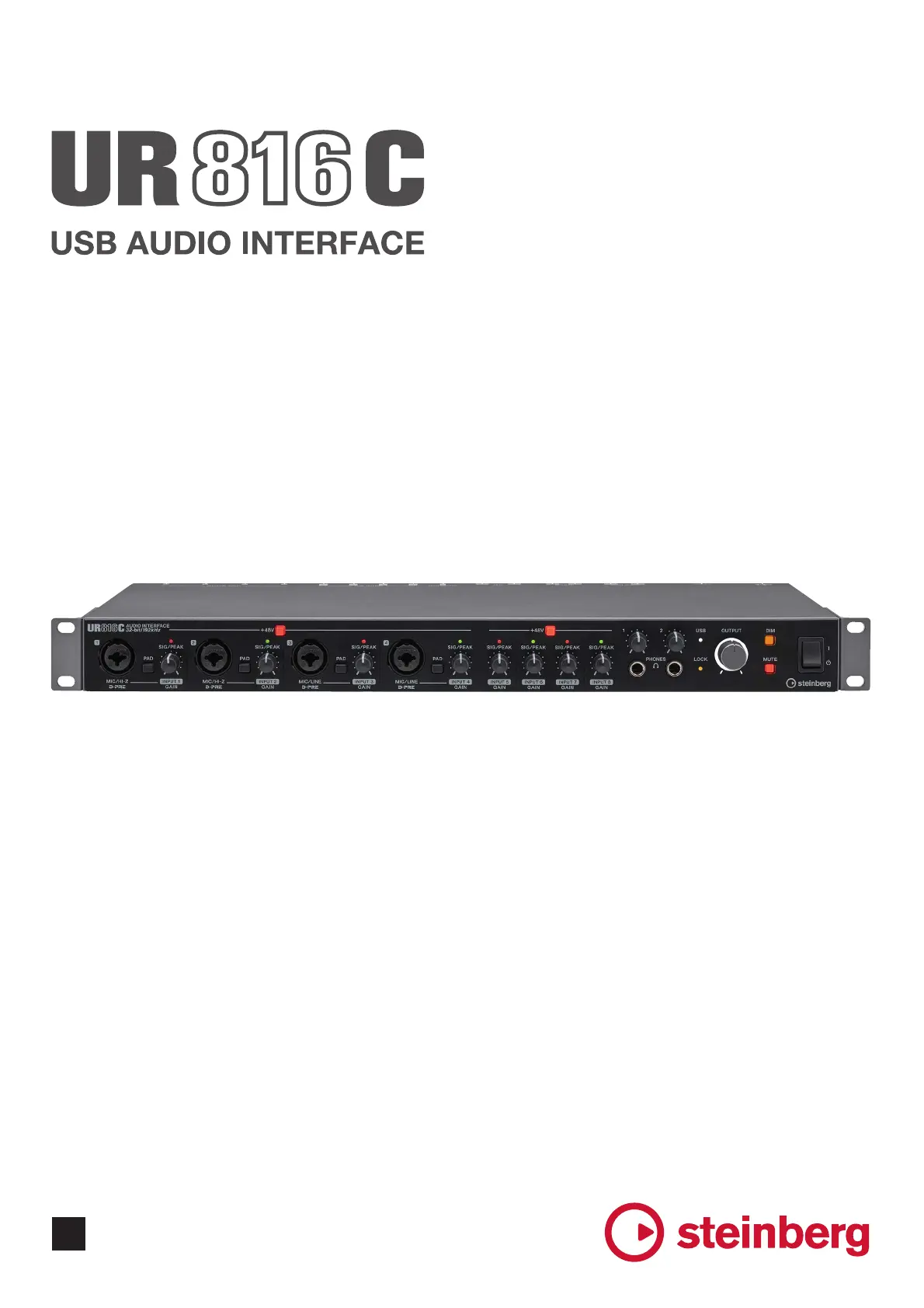

Operation Manual
EN
Main features
UR816C Operation Manual 2
Contents
Main features ............................................2
Panel Controls and Terminals ................3
Front Panel ..........................................................3
Rear Panel ...........................................................5
Software ....................................................6
Yamaha Steinberg USB Driver ............................6
dspMixFx UR-C....................................................8
Dedicated Windows for Cubase Series .............14
Sweet Spot Morphing Channel Strip ..................17
REV-X ................................................................19
Guitar Amp Classics ..........................................21
Using as a Stand-alone Device .............24
Connection Example..........................................24
Configuring Audio Driver Settings on the DAW
Software.............................................................25
Recording/Playback ...........................................26
Expanding with Other Devices .............28
Connection Example .........................................28
Operation ...........................................................28
Using the Device without Computer ....29
Connection Example .........................................29
Operation ...........................................................29
Using the Device in HA Mode ...............30
Connection Example .........................................30
Operation ...........................................................30
How to Enable/Disable HA Mode.......................30
Yamaha Steinberg USB Driver ..........................30
Using with an iOS Device ......................31
Connection Example..........................................31
Recording/Playback ...........................................32
Troubleshooting.....................................34
Appendix.................................................36
Limitations on the Use of Effects .......................36
Computer Connector Types...............................36
Signal Flows.......................................................37
Block Diagrams ..................................................39
General Specifications .......................................44
Technical Specifications ....................................45
Uninstalling TOOLS for UR-C ............................47
Main features
16 x 16 USB 3.0 Audio Interface with 8 x
D-PRE and 32-bit/192 kHz support
The UR816C is a 16-in and 16-out USB 3.0 audio
interface supporting 192 kHz and 32-bit audio
quality to capture all the subtleties and
expressiveness of any audio source.
The eight world-renowned D-PRE microphone
preamps, the eight balanced line outputs and the
one ADAT optical digital I/O provide all the
professional connectivity required in project studios
as well as in professional recording and production
facilities.
True 32-bit resolution
The UR816C and the Yamaha Steinberg USB Driver
support the 32-bit Integer format which can
represent audio data in higher resolution compared
to the Float format.
Together with a DAW like Cubase being able to fully
utilize the 32-bit Integer data, music production with
unprecedented audio resolution can be realized.
USB 3.0 & USB Type-C
The UR816C is equipped with a USB Type-C port
and features the USB 3.0 (USB 3.1 Gen 1)
SuperSpeed mode. It also provides full compatibility
with the USB 2.0 High-Speed mode and includes a
Type-C to Type-A cable.
dspMixFx
The dspMixFx technology is powered by the latest
SSP3 DSP chip and offers latency-free monitoring
with the highly acclaimed DSP effects, including
REV-X reverb, for users of any DAW software.
SSPLL™ (Super Suppression PLL)
SSPLL is currently the most advanced technology
for removing audio band jitter. It is highly robust and
extremely tolerant of wide variations in clock
frequencies. Using SSPLL makes all of the
connected equipment work reliably and virtually
jitter-free.
Panel Controls and Terminals
UR816C Operation Manual 3
Panel Controls and Terminals

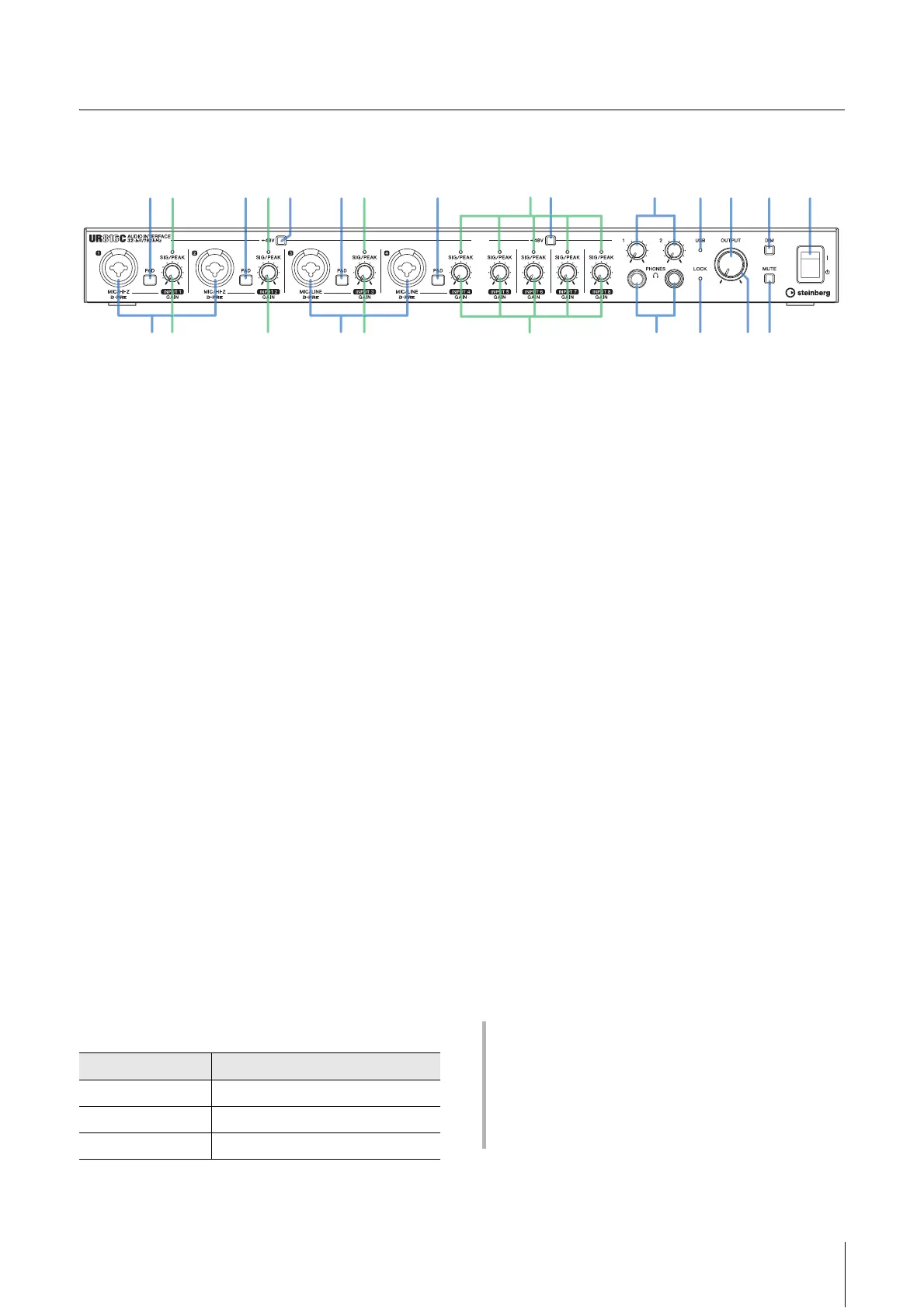

Front Panel
1 [MIC/HI-Z 1/2] jacks
For connection to a microphone, electric guitar, or electric
bass. This jack can be connected to both XLR-type and
phone-type (unbalanced only) plugs. The XLR type is set
to the optimum level for microphone connection and
phone type is for line connection.
NOTE
• The signal is not input when connecting balanced phone-type
plugs.
• The phantom power will be supplied to the XLR jack
connected to the [MIC/HI-Z 1/2] jacks.
2 [PAD] switch
Turns on O and off N the PAD of the analog input jacks
([MIC/HI-Z 1/2] and [MIC/LINE 3/4] jacks). Turn this switch
on when connecting high output equipment, such as a
mixer, to the analog input jacks.
3 [INPUT 1 to 8 GAIN] knob
Adjusts the input signal level of the [MIC/HI-Z 1/2] jacks,
[MIC/LINE 3/4] jacks and [MIC/LINE INPUT 5 to 8] jacks.
4 [MIC/LINE 3/4] jacks
For connection to a microphone or digital instrument. This
jack can be connected to both XLR-type and phone type
(balanced/unbalanced) plugs. The XLR type is set to the
optimum level for microphone connection and phone type
is for line connection.
NOTE
The phantom power will be supplied to the XLR jack connected
to the [MIC/LINE 3/4] jacks.
5 [SIG/PEAK] indicator
Indicates the input signal level of the analog input jacks
([MIC/HI-Z 1/2] jacks, [MIC/LINE 3/4] jacks and [MIC/LINE
INPUT 5 to 8] jacks).
6 [+48V] switch
Turns the phantom power on (lit) and off (unlit). When you
turn this switch on, phantom power will be supplied to the
XLR jack connected to the [MIC/HI-Z 1/2] jacks and [MIC/
LINE 3/4] jacks. Turn this switch on when using a phantom
powered condenser microphone.
7 [+48V] switch
Turns the phantom power on (lit) and off (unlit). When you
turn this switch on, phantom power will be supplied to the
XLR jack connected to the [MIC/LINE INPUT 5 to 8] jacks.
Turn this switch on when using a phantom powered
condenser microphone.
NOTICE
When using phantom power, observe the following to prevent
noise and possible damage to UR816C or connected
equipment.
• Do not connect or disconnect any devices while the
phantom power switch is turned to ON.
• Set all output level controls to the minimum before turning
the phantom power switch to ON or OFF.
• When connecting devices not requiring phantom power to
the [MIC/HI-Z 1/2] and [MIC/LINE 3/4] jacks, make sure to
turn the phantom power switch to OFF.
NOTE
When the phantom power switch is turned on and off, all inputs/
outputs will be muted for a few seconds.
8 [PHONES] jacks
For connection to a set of stereo headphones. [PHONES
1/2] outputs one signal of the MIX 1 to MIX 4. To select the
output signal of the [PHONES 1/2], refer to the “Output
Area” (page 15) in the section “Dedicated Windows for
Cubase Series.” or the “Master Area” (page 11) in the
section “dspMixFx UR-C.”
13 3 3 ) $#
22556
7
%22 @^5!59
483
Indicator status Description
Red -3 dBFS or more
Green -40 dBFS or more – less than -3 dBFS
Unlit Less than -40 dBFS
What is MIX?
MIX refers to the stereo output signals which flow in the
device. Four Mix outputs are provided in the UR816C.
The input signals to the device flow to each MIX. Refer
to the section “Signal Flow” (page 37). To select the
MIX, refer to the “MIX Area” (page 11) in the section
“dspMixFx UR-C.”
