Side 1/8

Owner’s Manual

HDMI + IR over Dual

Cat5/Cat6 Extender Kit

Model: B125-101-60-IR

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

16-02-445-9334B1.indd 1 3/10/2016 11:27:09 AM

Features

Package Includes

Optional Accessories

• Extend a 1920 x 1080 (1080p) @ 60Hz signal up to 150 ft. using

Cat5/Cat6 cabling

• IR control allows you to use your HDMI source’s remote control in the

same location as your extended monitor

• Supports 7.1 Channel Surround Sound, DTS-HD and Dolby

TrueHD

audio

• Receiver unit features built-in Equalization control to adjust video image

• Supports EDID passthrough; HDCP and 3D compatible

• Plug-and-play; no software required

• Transmitter and Receiver Units

• IR-TX and IR-RX Cables

• (x2) External Power Supplies (Input: 100-240V, 50/60Hz, 0.5A

Output: 9V, 1A)

• Screwdriver for Equalization adjustment

• Owner’s Manual

• N202-Series Cat6 24 AWG Solid Wire Patch Cables

• P568-Series High Speed HDMI Cables

16-02-445-9334B1.indd 2 3/10/2016 11:27:09 AM

Installation

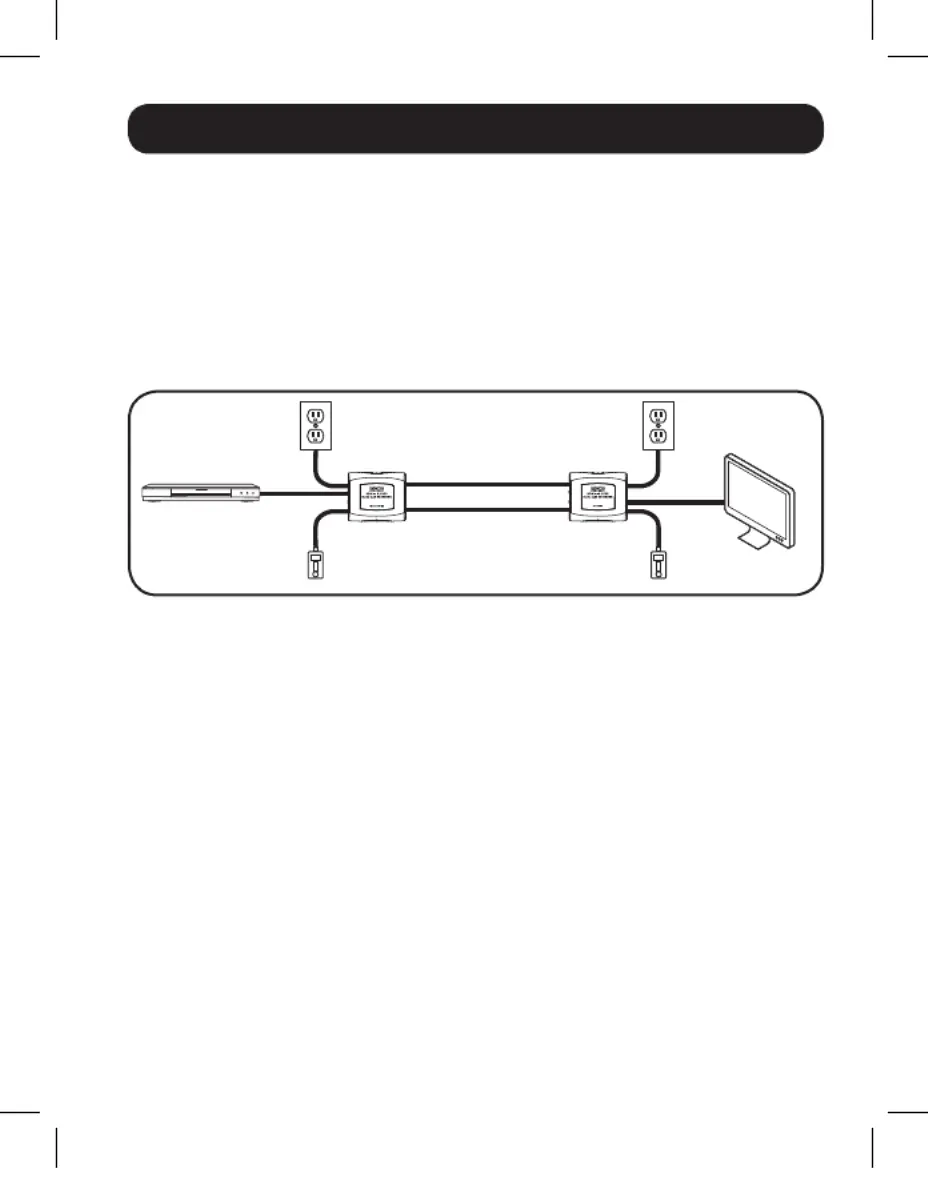

Refer to the installation diagram below as you perform these steps.

Notes:

1. Test to make sure the entire installation works properly before pulling cables

through ceilings/walls.

2. To achieve maximum distance and performance, 24 AWG solid wire Cat5e/6 cable

must be used. The use of stranded wire Cat5e/6 cable or cable with a gauge size

higher than 24 AWG will result in shorter extension distance. All Tripp Lite

N202-Series Cat6 cables are made with 24 AWG, solid wire cabling.

CH1

CH2

TRANSMITTER RECEIVER

Blu-ray™ PLAYER

1080p (60 Hz)

DISPLAY

1080p (60 Hz)

Up to 150 ft. Cat5e/6

1. Make sure all equipment being connected is powered off.

2. Connect the HDMI source to the HDMI input on the transmitter unit.

3. Connect the IR-TX cable to the IR port on the transmitter unit.

Note: The IR-TX cable transmits the IR signal to the device being controlled.

Locate the IR-TX unit in an area with clear line of sight to the source

(e.g. Blu-ray player).

4. Connect the external power supply to the transmitter, then plug it into a

Tripp Lite Surge Protector, Uninterruptible Power Supply (UPS), or Power

Distribution Unit (PDU). The green LEDs on both the transmitter and

receiver units will illuminate to indicate that power is being received.

The orange LED on the receiver unit will illuminate to indicate that a

connection has been made with the transmitter unit via Cat5e/6 cable.

5. Connect the CH1 RJ45 port on the transmitter to the CH1 RJ45 port on

the receiver using Cat5e/6 cable.

Note: See the installation diagram for maximum extension distance at 1080p

(60Hz) video resolutions.

16-02-445-9334B1.indd 3 3/10/2016 11:27:09 AM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Mottaker
Modell:	B125-101-60-IR
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Maksimal oppløsning:	1920 x 1080 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	320 g
HDMI inn:	1
Antall HDMI-utganger:	1
Produktfarge:	Sort
Pakkedybde:	142 mm
Pakkehøyde:	43.9 mm
Pakkebredde:	199.9 mm
Støttede grafikkoppløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Støttede videofunksjoner:	480i, 480p, 720p, 1080i, 1080p
Bærekraftsertifikater:	RoHS
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	2
Lyd-utgang kanaler:	7.1 kanaler
Fjern (IR)-utgang:	1
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332190472
Masterkassens (ytterkassens) bruttovekt:	3700 g
Masterkassens (ytterkassens) lengde:	152.9 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	455.9 mm
Masterkassens (ytterkassens) høyde:	213.1 mm
Fjerninngang (IR):	1
Maksimal overføring avstand:	45 m
Kabeltyper som støttes:	Cat5e, Cat6
RJ-45-utgangsporter:	2
3,5 mm inn:	Ja
3.5 mm ut:	Ja
HDCP & EDID bypass:	Ja
