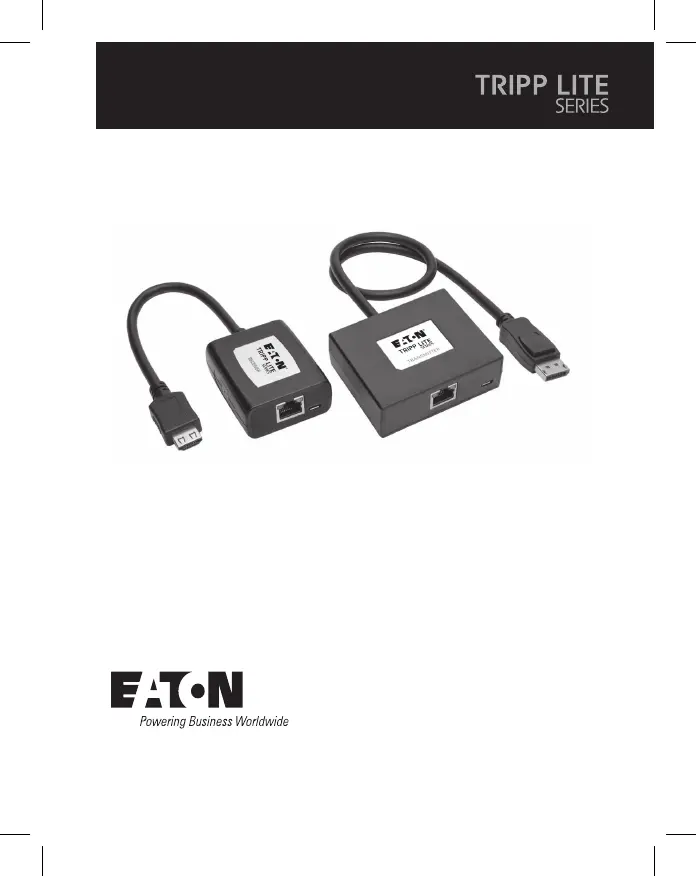

Owner’s Manual

Español 9

Français 17

Deutsch 25

Italiano 33

Purchased product

may differ from image.

Model:

B150-1A1-HDMI

DisplayPort to HDMI over

Cat5 Extender Kit

23-08-380-9338B3.indb 123-08-380-9338B3.indb 1 3/4/2024 4:28:30 PM3/4/2024 4:28:30 PM

Product Features

Package Contents

Optional Accessories

• Converts a DisplayPort audio/video signal for use with an HDMI display

• Extends a 1080p (60 Hz) video signal up to 125 ft. or a 1080i (60 Hz)

video signal up to 150 ft.

• Supports 24-bit True Color (8 bits per channel) and stereo audio

• Receiver unit features a built-in Equalization control for video image

adjustment

• USB Micro-B ports supply power to the transmitter and receiver units;

no external power supplies required

• HDMI connector with latches provides a more secure connection

• Plug-and-play; no software or drivers required

• B150-1A1-HDMI Transmitter Unit

• B150-1A1-HDMI Receiver Unit

• (x2) USB Micro-B Cables – 3 ft.

• Screwdriver for Equalization Adjustment

• Owner’s Manual

• N202-Series Cat6 24 AWG Solid-Wire Patch Cables

• UR05C-Series USB Micro-B Charge-Only Cables

• U280-002-W12 2-Port USB Wall Charger

• UAC-1B 1-Port USB Wall Charger

23-08-380-9338B3.indb 223-08-380-9338B3.indb 2 3/4/2024 4:28:30 PM3/4/2024 4:28:30 PM

Installation

System Requirements

Notes:

1. Test to make sure the entire installation works properly before pulling cables

through ceilings/walls.

2. To achieve maximum distance and performance, 24 AWG solid-wire Cat5e/6 cable

must be used. The use of stranded-wire Cat5e/6 cable or cable with a gauge size

higher than 24 AWG will result in a shorter extension distance. N202-Series Cat6

cables are made with 24 AWG solid-wire cabling.

3. Makesurethepowertoallconnecteddevicesisturnedopriortoinstallation.

• Computer with a DisplayPort output port*

• Display with an HDMI input port

*Audio support requires a DisplayPort source that is enabled to support audio.

Connect the transmitter unit’s built-in DisplayPort cable to the

computer’s DisplayPort output port.

Connect the included USB Micro-B cable to the transmitter unit

and a USB port on the computer or USB wall outlet. The green and

orange LEDs on the transmitter unit’s RJ45 ports will illuminate to

indicate it is receiving power from the USB Micro-B cable.

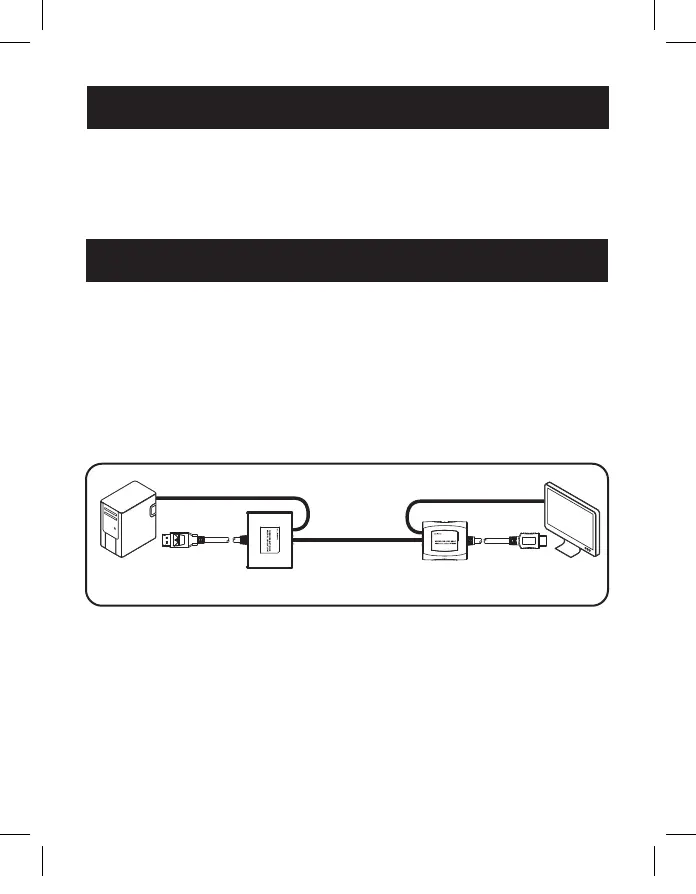

DISPLAYPORT

COMPUTER

HDMI DISPLAY

24 AWG SOLID-WIRE

Cat5e/6 CABLE

Up to 125 ft. at 1080p

Up to 150 ft. at 1080i

23-08-380-9338B3.indb 323-08-380-9338B3.indb 3 3/4/2024 4:28:31 PM3/4/2024 4:28:31 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Mottaker
Modell:	B150-1A1-HDMI
Bruksanvisning:	Ja
USB-kontakttype:	USB Type-A
Maksimal oppløsning:	1600 x 1200 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	220 g
Sertifisering:	TAA
Fargedybde:	24 bit
HDMI inn:	1
Produktfarge:	Sort
Antall USB-porter:	2
Pakkedybde:	142 mm
Pakkehøyde:	43.9 mm
Pakkebredde:	199.9 mm
Støttede grafikkoppløsninger:	640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900,1600 x 1200 (UXGA)
Kabler inkludert:	Micro-USB
Støttede videofunksjoner:	480i, 480p, 720p, 1080i, 1080p
Bærekraftsertifikater:	RoHS
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	2
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332190113
Masterkassens (ytterkassens) bruttovekt:	2450 g
Masterkassens (ytterkassens) lengde:	213.1 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	455.9 mm
Masterkassens (ytterkassens) høyde:	152.9 mm
Antall:	1
Maksimal overføring avstand:	45 m
Kabeltyper som støttes:	Cat5, Cat6
