Side 1/28

Owner’s Manual

Wireless HDMI Extender Kit

Models: B126-1A1-WHD1 (165 ft./50 m),

B126-1A1-WHD2 (650 ft./200 m)

Español 8 • Français 15 • Русский 22

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

18-07-214-933699.indb 1 8/9/2018 2:12:18 PM

Product Features

Package Contents

Optional Accessories

System Requirements

• Wirelessly extend a 1080p (60Hz) signal up to 165 ft./50 m (B126-1A1-WHD1) or

650 ft./200 m (B126-1A1-WHD2) from the source

• Connect a second receiver unit up to 85 ft./25 m (B126-1A-1-WHD1) or

320 ft./100 m (B126-1A1-WHD2) from the source

• IR control functionality lets you control your HDMI source device remotely

• All-in-one wireless solution; no cabling infrastructure needed

• Transmits High Deﬁnition video and stereo audio

• Protects your transmissions with AES 128 encryption

• HDMI 1.3 and HDCP 1.2 compatible

• Supports up to 24-bit Deep Color (8-bits per channel)

• Supports 300 MHz/3.4 Gbps per channel bandwidth (10.2 Gbps total)

• Plug-and-play; no software or drivers required

• External power supplies feature US, UK, EU and Australian plug adapters

• Transmitter and Receiver Units

• IR-IN (Rx) Cable

• IR-OUT (Tx) Cable

• (x2) External Power Supplies* (Input: 100-240V, 50/60 Hz, 0.6A; Output: 5V 3A)

• Mounting Hardware

• Owner’s Manual

* Include NEMA 5-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (UK) and

AS/NZS 3112 (Australia) plug adapters.

• P568-Series High Speed HDMI Cables

• HDMI source device, such as a Blu-ray™ player

• HDMI display device, such as a television or projector

18-07-214-933699.indb 2 8/9/2018 2:12:18 PM

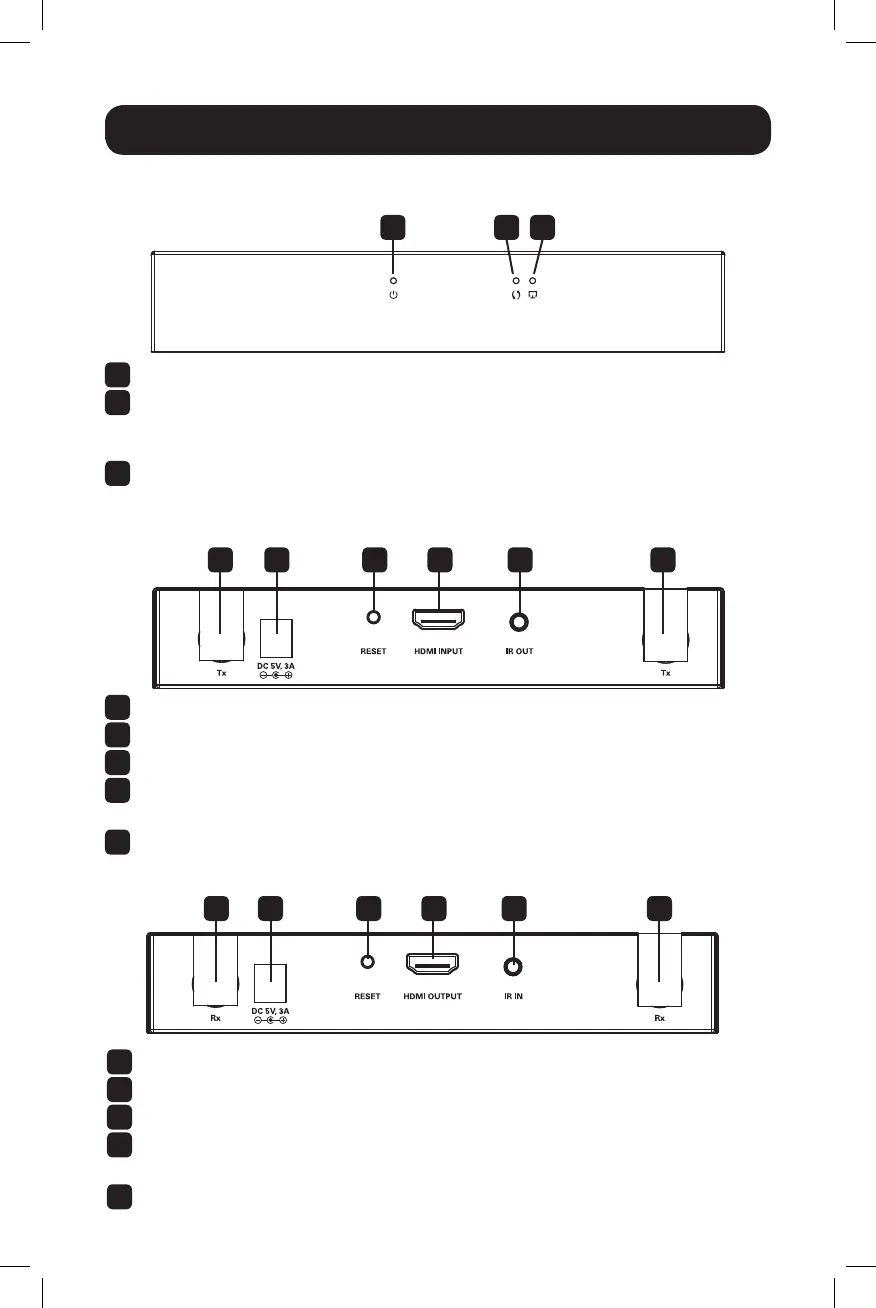

Indicators and Connections

HDMI Receiver (Rx) and Transmitter (Tx) Front Panel

HDMI Tx Back Panel

Power LED: This LED illuminates solid blue when the unit is receiving power.

Data Transmission LED: This LED illuminates orange and blinks slowly while a

connection is being established. It blinks quickly when the unit is successfully

connected and transmitting data.

Connection LED: This LED illuminates solid green when a wireless signal is

connected.

Power Input: Connect included external power supply.

Reset Button: Press this button to restart the device.

HDMI Input: Connect to HDMI source with an HDMI cable.

IR-OUT (Tx) Port: Connect included IR-OUT (Tx) cable.

Note: Ensure the source device has a clear line of sight to the IR transmitter.

Antenna Connections: Connect both included antennas.

1 2 3

5 51 2 3 4

HDMI Rx Back Panel

Power Input: Connect included external power supply.

Reset Button: Press this button to restart the device.

HDMI Output: Connect to HDMI display with an HDMI cable.

IR-IN (Rx) Port: Connect included IR-IN (Rx) cable.

Note: Ensure the source remote control has a clear line of sight to the IR receiver.

Antenna Connections: Connect both included antennas.

5 51 2 3 4

18-07-214-933699.indb 3 8/9/2018 2:12:19 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Mottaker
Modell:	B126-1A1-WHD1
LED-indikatorer:	Kraft indikator
Bruksanvisning:	Ja
Maksimal oppløsning:	1920 x 1080 piksler
Opprinnelsesland:	China
Pakkevekt:	1900 g
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
HDMI-versjon:	1.3
Fargedybde:	24 bit
Utgangsstrøm:	3 A
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Tilkobling 1:	HDMI
Tilkobling 2:	RJ-45
Produktfarge:	Sort
Pakkedybde:	252 mm
Pakkehøyde:	61 mm
Monteringssett:	Ja
Pakkebredde:	442 mm
Støttede grafikkoppløsninger:	640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900,1600 x 1200 (UXGA),1920 x 1080 (HD 1080)
Støttede videofunksjoner:	480i, 480p, 720p, 1080i, 1080p
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	8517.62.0090
Modell/Type:	AV-sender og -mottaker
Sikkerhetsalgoritmer:	128-bit AES
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	20 - 90
Plugg inn og spill:	Ja
Største båndbredde for port:	3.4 Gbit/s
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332201208
Masterkassens (ytterkassens) bruttovekt:	10500 g
Masterkassens (ytterkassens) lengde:	320 mm
Produkter per masterkasse (ytterkasse):	5 stykker
Masterkassens (ytterkassens) bredde:	449.6 mm
Masterkassens (ytterkassens) høyde:	269.2 mm
Antall:	2
Innput-strøm:	0.6 A
Maksimal overføring avstand:	50 m
Frekvens:	5000 MHz
Drift spenning (modtaker):	5 V
