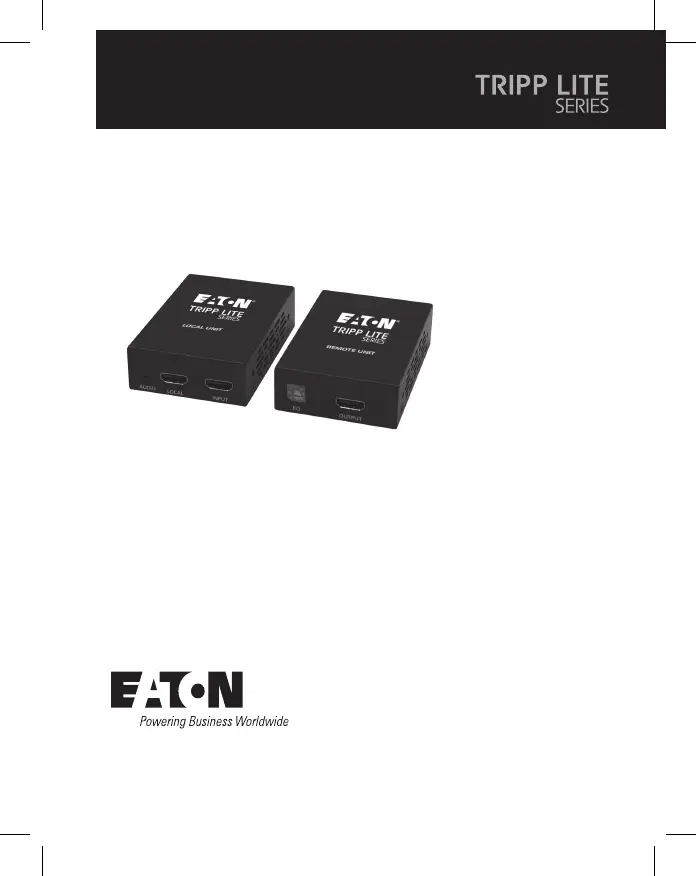

Owner’s Manual

Español 29

Français 57

Deutsch 85

Italiano 113

Purchased product

may differ from image.

Models:

B126-1A1

B126-1A1-WP

B126-002

B126-004

B126-1P0

B126-1P0-MINI

B126-1P0-WP-1

B126-1A0

B126-1A0-WP-1

B126-110

HDMI over Cat5 Extenders

and Extender/Splitters

Package Contents

Product Features

B126-1A1

B126-1A1-WP

B126-002

B126-004

B126-1A0

B126-1A0-WP-1

B126-1P0

B126-1P0-MINI

B126-1P0-WP-1

B126-110

Local Unit (L), Remote Unit (R)

or Both (B)

B B L L R R R R R R

External Power Supplies

(0, 1 or 2)

2 2 1 1 1 1 0 0 0 1

Mounting Hardware X X X X X

Wall Plate Screws X X X

Screwdriver for

Equalization Adjustment

X X X X X

HDMI Daisy-Chain Cable X

USB Micro-B Cable X

All

• Support a maximum video resolution of 1080p (60 Hz)

• Plug and play—no software or drivers required

• Support up to 7.1-channel surround sound audio

• HDCP and 3D compatible

Product Features

B126-1A1

• HDMI over Cat5 Active Extender Kit

• Extends a 1080i (60 Hz) signal up to 200 ft. from the source, or a

1080p (60 Hz) signal up to 150 ft. from the source

• Additional HDMI port on the local transmitter unit allows connection

of local monitor

• Remote receiver unit features a built-in equalization control for video

image adjustment

• Includes mounting hardware that allows both the local transmitter

and remote receiver units to be wall-mounted, rack-mounted or

pole-mounted

B126-1A1-WP

• HDMI over Cat5 Active Extender Wall Plate Kit

• Extends a 1080i (60 Hz) signal up to 200 ft. from the source, or a

1080p (60 Hz) signal up to 150 ft. from the source

• Remote receiver unit features a built-in equalization control for video

image adjustment

• RJ45-style wall plates allow for the use of standard Cat5e/6 patch

cables; 110 punchdown connection not required

B126-002

• 2-Port HDMI over Cat5 Extender/Splitter Local Transmitter Unit

• Splits an HDMI signal into two

• Works with remote/repeater and receiver units to extend an HDMI

signal past the 16 ft. (5 m) distance limitation

• Includes mounting hardware that allows unit to be wall-mounted,

rack-mounted or pole-mounted

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Mottaker
Modell:	B126-1P0-MINI
USB-kontakttype:	Micro-USB B
Maksimal oppløsning:	1600 x 1200 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	90 g
Sertifisering:	TAA
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
Fargedybde:	24 bit
HDMI inn:	1
Produktfarge:	Sort
Antall USB-porter:	1
Pakkedybde:	121.9 mm
Pakkehøyde:	33 mm
Pakkebredde:	149.9 mm
Støttede grafikkoppløsninger:	640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900,1600 x 1200 (UXGA)
Kabler inkludert:	Micro-USB
Støttede videofunksjoner:	480i, 480p, 720p, 1080i, 1080p
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Bærekraftsertifikater:	RoHS
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	1
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
Lyd-utgang kanaler:	7.1 kanaler
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332200409
Masterkassens (ytterkassens) bruttovekt:	910 g
Masterkassens (ytterkassens) lengde:	170.2 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	345.4 mm
Masterkassens (ytterkassens) høyde:	137.2 mm
Antall:	1
Maksimal overføring avstand:	30.5 m
Kabeltyper som støttes:	Cat5, Cat6
