Owner’s Manual

Español 9

Français 16

Deutsch 23

Italiano 30

Purchased product

may differ from image.

Models:

B203-101-POC

B203-104-POC

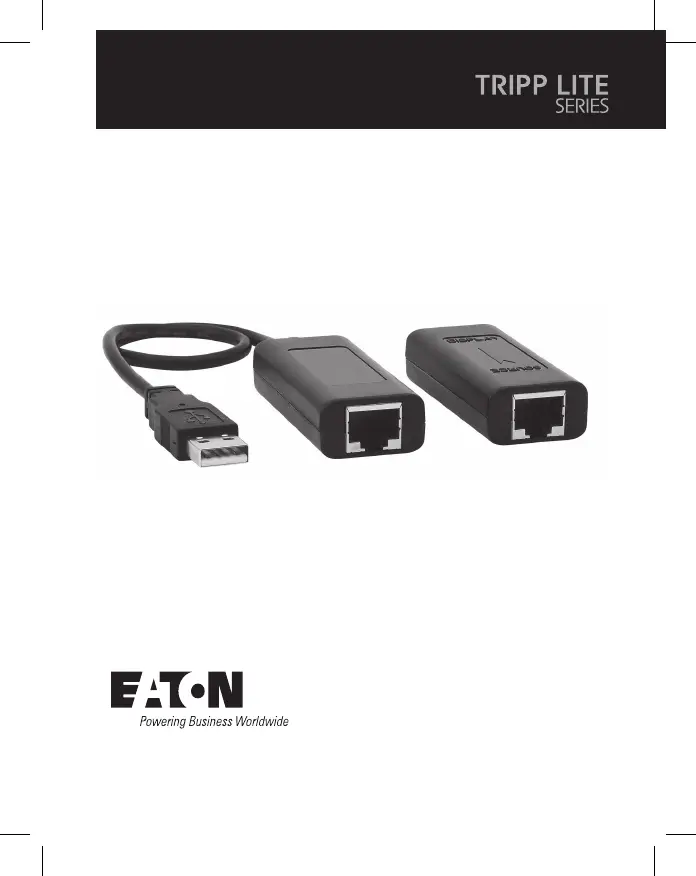

USB 2.0 over Cat5 Plug-and-

Play Extender Kit

Power over Cable

Product Features

Package Includes

• B203-101-POC extends a USB 2.0 signal up to 164 ft. (50 m)

from the source

• The B203-104-POC allows you to connect four USB 2.0

devices up to 164 ft. (50 m) from the source

• Supports USB 2.0 data transfer rates up to 480 Mbps

• Power over Cable (PoC) technology provides power to the

receivers via Cat5 cable

• Backward compatible with USB 1.1

• Plug-and-Play; no software or drivers required

• Compatible with all major operating systems

• B203-101-POC or B203-104-POC Transmitter

• B203-101-POC or B203-104-POC Receiver

• Owner’s Manual

Installation

Optional Accessories

Note: Test to make sure that the entire installation works properly before

pulling cables through ceilings or walls.

1. Connect the built-in USB cable on the transmitter unit to an

available USB port on your computer.

2. Connect the RJ45 ports on the transmitter and receiver units

with Cat5e/6 cable.

Note: The distance between the transmitter and receiver units must be no

longer than 164 ft. (50 m).

3. Connect a USB 2.0 device to each available port on the

receiver unit.

4. (Optional) If connecting power-hungry device(s), use the

USB Micro-B port on the receiver to add external power.

• N202-Series Cat6 Snagless Patch Cables

• U022-Series USB 2.0 Cables

• UR022-Series Reversible USB 2.0 Cables

• U030-Series USB 2.0 5-Pin Mini-B Cables

• UR030-Series Reversible USB 2.0 5-Pin Mini-B Cables

• U050-Series USB 2.0 Micro-B Cables

• UR050-Series Reversible USB 2.0 Micro-B Cables

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Mottaker
Modell:	B203-104-POC
Vekt:	80 g
Bredde:	372.6 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Opprinnelsesland:	Taiwan
Pakkevekt:	160 g
Antall USB 2.0-porter:	5
Sertifisering:	REACH, CE, NOM
Senderbredde:	25.9 mm
Senderdybde:	59.9 mm
Senderhøyde:	14.9 mm
Mottakerbredde:	49.5 mm
Mottakerhøyde:	25.4 mm
Produktfarge:	Black, White
Pakkedybde:	142 mm
Pakkehøyde:	43.9 mm
Pakkebredde:	199.9 mm
Pakketype:	Boks
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Lagringsrelativ fuktighet:	0 - 85
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	85176990
Modell/Type:	Sender og mottaker
Kroppsmateriale:	Polyvinylklorid (PVC)
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Relativ luftfuktighet under drift (H-H):	0 - 85
Overføringshastighet (Mbps):	480 Mbit/s
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332252897
Masterkassens (ytterkassens) bruttovekt:	1850 g
Masterkassens (ytterkassens) lengde:	212.9 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	455.9 mm
Masterkassens (ytterkassens) høyde:	152.9 mm
Maksimal overføring avstand:	50 m
Kabeltyper som støttes:	Cat5, Cat6
RJ45 porter antall (sender):	1
Mottakerdybde:	61.4 mm
RJ45 porter antall (mottaker):	1
