Owner’s Manual

Mobile Flat-Panel

Classic

Model: DMCS3770L

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR

PROPERTY DAMAGE MAY OCCUR!

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

200 x 200 / 300 x 300 /

400 x 200 / 400 x 400 /

600 x 400

70”

MAX

88 lb.

(40 kg)

MAX

DVD

22 lb.

(10 kg)

MAX

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

Espanol 12 • Français 23 • Русский 34 • Deutsch 45

17-11-298-9337CF.indb 1 1/8/2018 12:41:41 PM

NOTE: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions

and warnings contained in this manual. If you have any questions regarding any

of the instructions or warnings, please visit www.tripplite.com/support

• This mounting bracket was designed to be installed and utilized ONLY as

speciﬁed in this manual. Improper installation of this product may cause damage

or serious injury.

• This product should only be installed by someone of good mechanical ability,

with basic building experience and a full understanding of this instruction

manual.

• Make sure that the mounting surface can safely support the combined load of

the equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position

equipment.

• Tighten screws ﬁrmly, but do not over-tighten. Over-tightening screws can

damage the items, greatly reducing their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

17-11-298-9337CF.indb 2 1/8/2018 12:41:41 PM

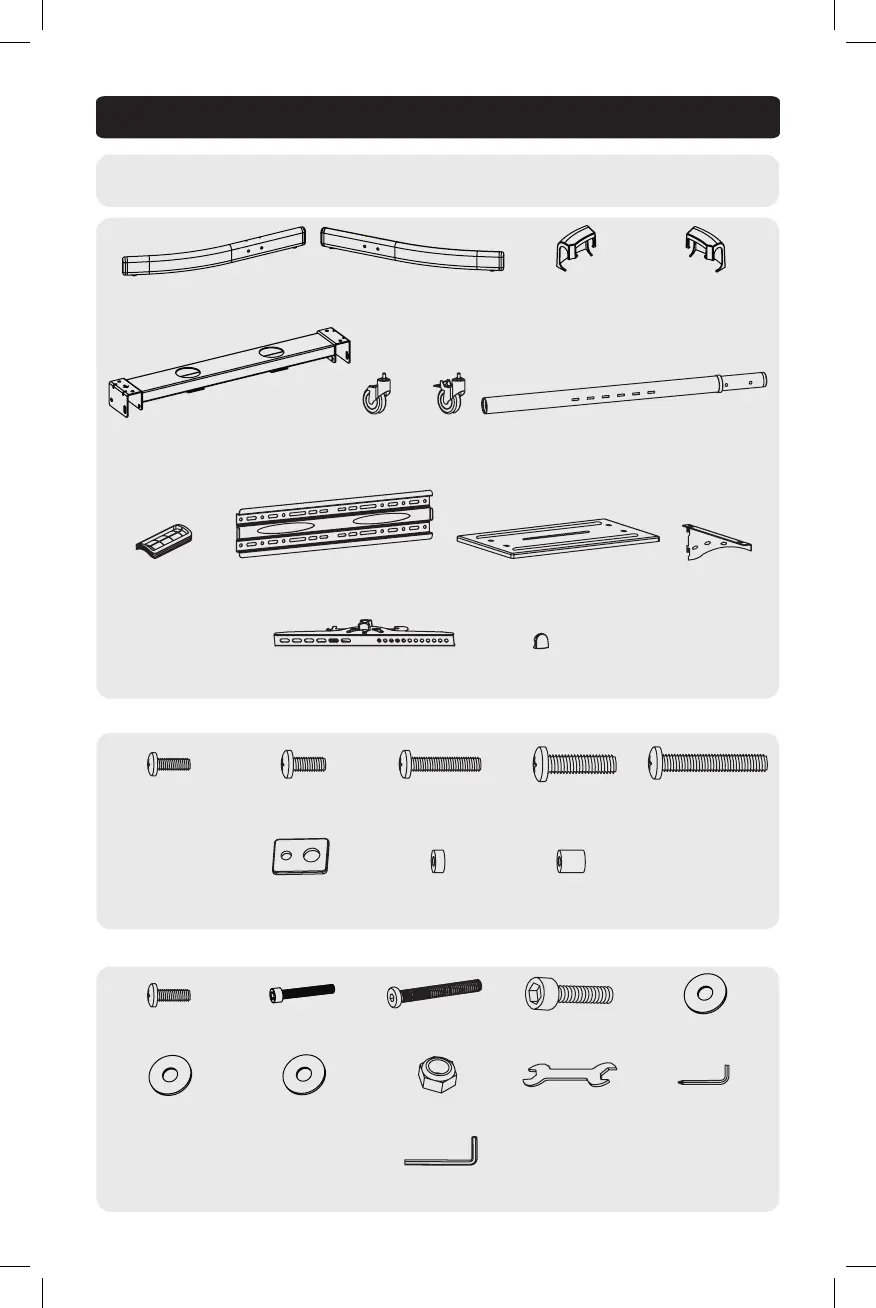

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to

installing. If any parts are missing or faulty, visit www.tripplite.com/support for service.

Left Leg

M5 x 14 Screw (x4)

M-A

M5 x 14 Screw (x4)

P-A

D8 Washer (x4)

P-F

8mm Allen Wrench (x1)

P-K

M8 x 50 Screw (x4)

M-E

Front

Caster (x2)

Rear

Caster,

Locking (x2)

Mounting Arm (x2)

Universal Plate

Telescoping Pole (x2)

Shelf Screw Cover (x2)

DVD Shelf

Bracket (x2)

Hole Cover (x6)

Right Leg

M6 x 14 Screw (x4)

M-B

M6 x 40 Screw (x4)

P-B

D6 Washer (x8)

P-G

Washer (x4)

M-F

M8 x 60 Screw (x4)

P-C

M8 Nut (x4)

P-H

Small Spacer (x8)

M-G

M6 x 30 Screw (x4)

M-C

M10 x 35 Screw (x2)

P-D

Wrench (x1)

P-I

Big Spacer (x8)

M-H

M8 x 30 Screw (x4)

M-D

D10 Washer (x2)

P-E

5mm Allen Wrench (x1)

P-J

Left Cover

Right Cover

Middle Base

Package M

Package P

17-11-298-9337CF.indb 3 1/8/2018 12:41:41 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Flatpanelstøtte
Modell:	DMCS3770L
Vekt:	15650 g
Bredde:	701 mm
Dybde:	701 mm
Høyde:	1714.5 mm
Opprinnelsesland:	China
Pakkevekt:	17330 g
Antall skjermer som støttes:	1
Maksimal skjermstørrelse:	70 "
Minimum skjermstørrelse:	37 "
Produktfarge:	Sort
Pakkedybde:	1036.3 mm
Pakkehøyde:	78.7 mm
Pakkebredde:	485.1 mm
Harmonisert system (HS)-kode:	85299097
Modell/Type:	Bærbart gulvstativ for flatskjerms-TV
Kroppsmateriale:	Aluminium, Steel
Panelmonterbart grensesnitt:	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 mm
Montasjetype:	Gulv
Maksimalvekt (kapasitet):	40 kg
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332213478
Masterkassens (ytterkassens) bruttovekt:	17420 g
Masterkassens (ytterkassens) lengde:	99.1 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	505.5 mm
Masterkassens (ytterkassens) høyde:	1059.2 mm
Monteringsgrensesnitt, kompatibilitet (min):	200 x 200 mm
Monteringsgrensesnitt, kompatibilitet (maks):	400 x 400 mm
Antall:	1
Egnet for TV:	Ja
