Owner’s Manual

Heavy-Duty

Tilt Flat Screen

Wall Mount

Model: DWT2670XE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR

PROPERTY DAMAGE MAY OCCUR!

50x50 / 75x75 / 100x100 / 100x150

100x200 / 150x100 / 150x150 / 200x100

200x200 / 200x400 / 300x200 / 300x300

350x350 / 400x200 / 400x300 / 400x400

70"

MAX

165 lb. 165 lb.

(75 kg) (75 kg)

MAXMAX

Español 8 • Français 15 • Русский 22 • Deutsch 29

Safety Instructions

Warranty and Product Registration

Note: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this

manual. If you have any questions regarding any of the instructions or warnings, please visit tripplite.com/support.

• This mounting bracket was designed to be installed and utilized ONLY as specied in this manual. Improper

installation of this product may cause damage or serious injury.

• This product should only be installed by someone of good mechanical ability, with basic building experience and a

full understanding of this instruction manual.

• Make sure that the mounting surface can safely support the combined load of the equipment and all attached

hardware and components.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. The use

of a stud nder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws rmly, but do not over-tighten. Over-tightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal

injury.

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a

period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or

replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT.

SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT

PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE

LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND

CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal

rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since

individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or tness of these

devices for any specic application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE

Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice. Photos and illustrations may di󰀨er slightly from

actual products.

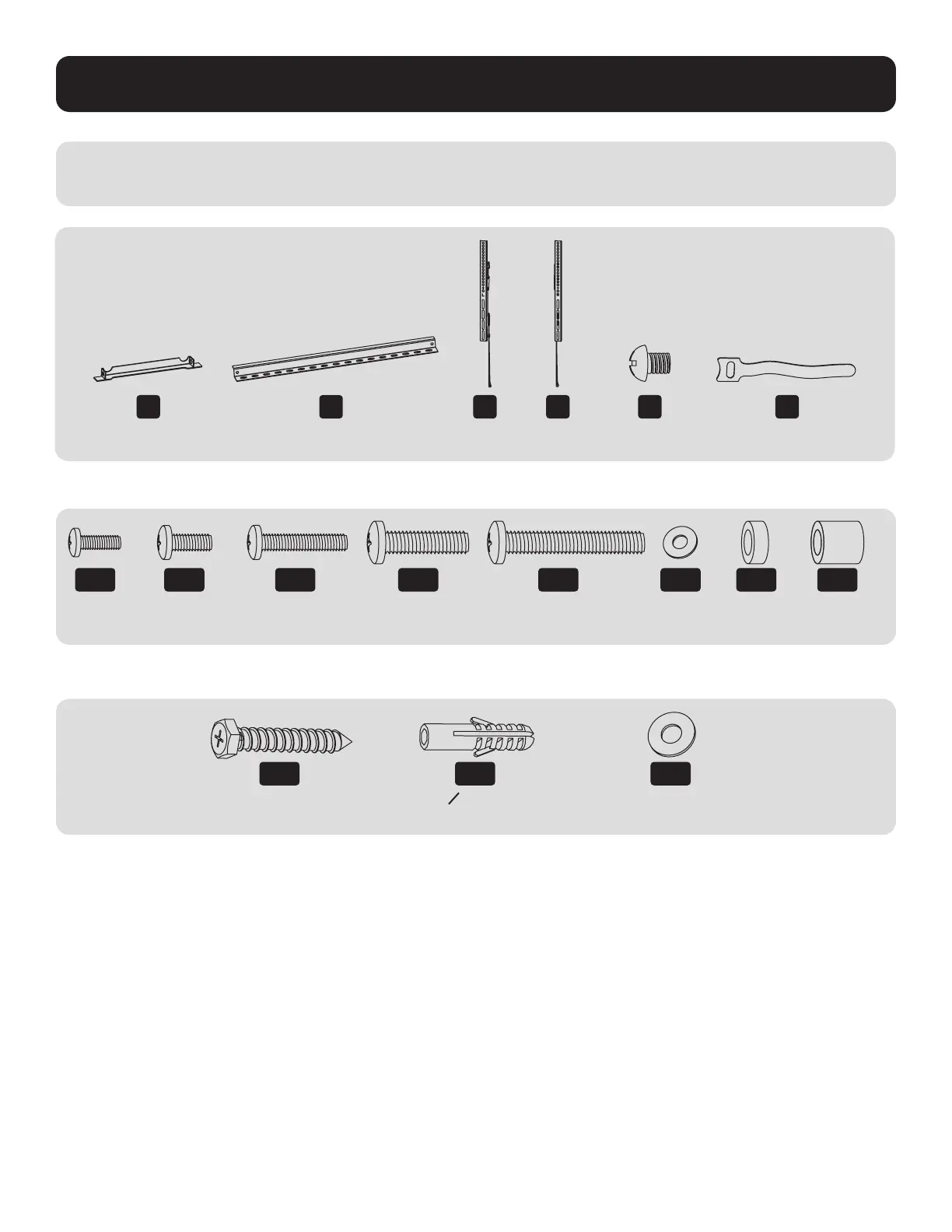

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any

parts are missing or faulty, visit tripplite.com/support for service.

Package M

Package W

(x2)

W-A

ST6.3x55

(x4)

W-C

(x4)

(x1)

(x4)

(x3)

M-A

M5x14

(x4)

M-B

M6x14

(x4)

M-C

M6x25

(x4)

M-D

M8x25

(x4)

M-E

M8x45

(x4)

M-F

(x4)

M-G

(x4)

M-H

(x4)

W-B

O10x45

(x4)

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Flatpanelstøtte
Modell:	DWT2670XE
Vekt:	1200 g
Bredde:	437.9 mm
Dybde:	38.1 mm
Høyde:	420.1 mm
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	1400 g
Antall per pakke:	1 stykker
Antall skjermer som støttes:	1
Maksimal skjermstørrelse:	70 "
Minimum skjermstørrelse:	26 "
Produktfarge:	Sort
Vippevinkelområde:	-8 - 0 °
Pakkedybde:	39.9 mm
Pakkehøyde:	444.5 mm
Monteringssett:	Ja
Pakkebredde:	118.1 mm
Bærekraftsertifikater:	REACH, RoHS
Harmonisert system (HS)-kode:	8302.50.0000
Kroppsmateriale:	Stål
Egnet for buet skjerm:	Ja
Panelmonterbart grensesnitt:	50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300 mm
Vippjustering:	Ja
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	75 kg
Bærekraftsamsvar:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332275773
Masterkassens (ytterkassens) bruttovekt:	18780 g
Masterkassens (ytterkassens) lengde:	145 mm
Produkter per masterkasse (ytterkasse):	6 stykker
Masterkassens (ytterkassens) bredde:	261.6 mm
Masterkassens (ytterkassens) høyde:	459.7 mm
Monteringsgrensesnitt, kompatibilitet (min):	50 x 50 mm
Monteringsgrensesnitt, kompatibilitet (maks):	400 x 400 mm
Distanse til vegg (maks.):	37 mm
