Side 1/60

Full-Motion Flat-Screen

Wall Mount

Model: DWM2355S

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARNING! Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

75x75/100x100

200x100/200x200

300x300/400x200

400x300/400x400

55"

MAX

11-50.6 lbs11-50.6 lbs

(5-23 kg)(5-23 kg)

RatedRated

WARRANTY REGISTRATION

surge protector in our monthly drawing!

tripplite.com/warranty

Español 13 • Français 25 • Русский 37 • Deutsch 49

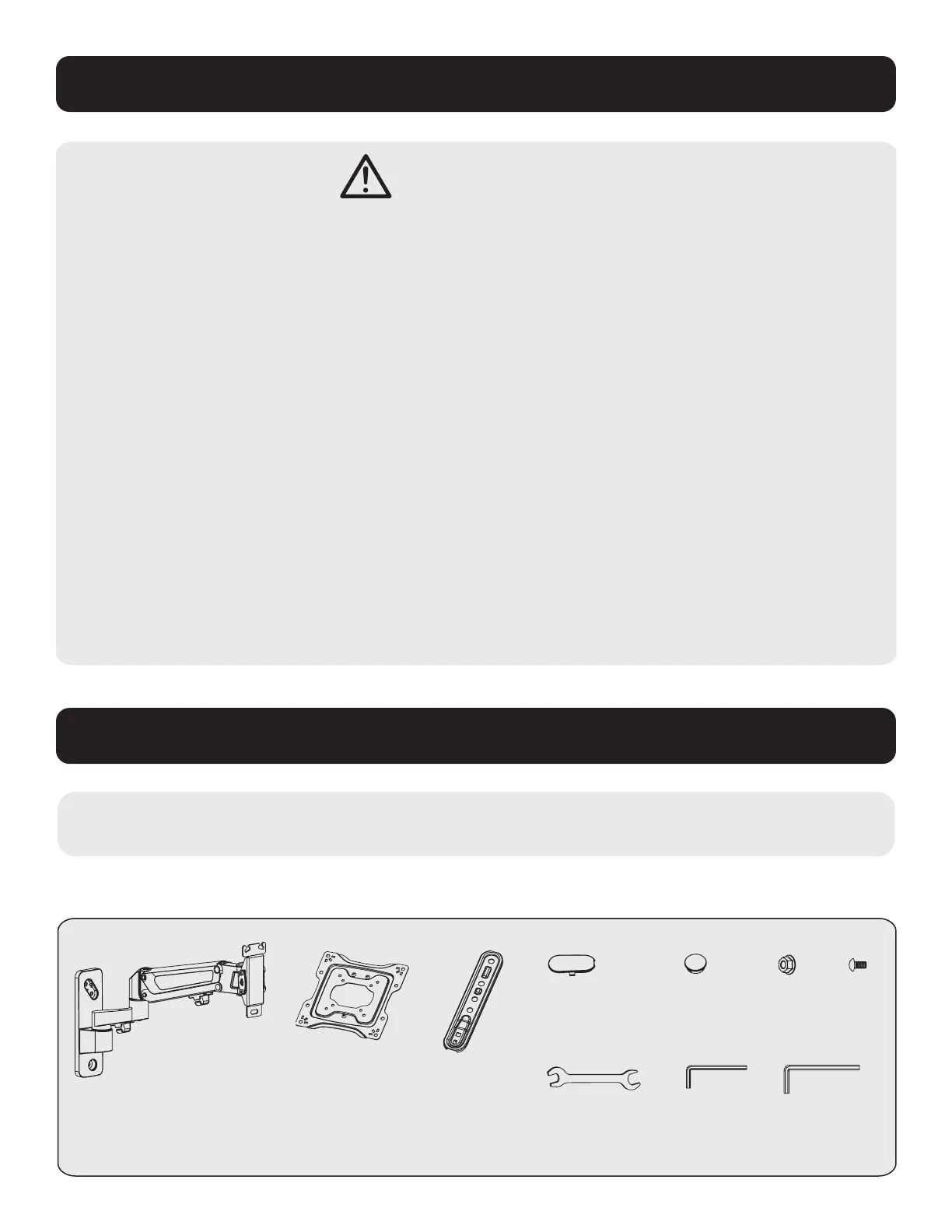

Owner’s Manual

Parts List

Important Safety Instructions

CAUTION

• Read the entire instruction manual before you start assembly and installation. If you have questions about any of

the instructions or warnings, contact Tripp Lite Support.

• Use with products heavier than the rated weights indicated may result in instability, causing possible injury.

• Mounts must be attached as speciﬁed in these instructions. Improper installation may result in damage or serious

personal injury.

• Safety gear and proper tools must be used. This product should only be installed by professionals.

• This product is designed to be installed on wood stud walls, solid concrete walls or brick walls.

• Ensure the supporting surface will safely support the combined weight of the equipment and all attached hardware

and components.

• Use the mounting screws provided and DO NOT OVERTIGHTEN the mounting screws.

• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.

• This product is intended for indoor use only. Using this product outdoors could lead to product failure and

personal injury.

• Check that the bracket is secure and safe to use at regular intervals (at least every three months)

IMPORTANT: Before beginning installation, be sure you have received all the parts listed below.

If any parts are missing or faulty, contact Tripp Lite for replacements.

Wall Plate/

Articulating Arm (x1)

Components

VESA Plate (x1)

VESA Adapter

Bracket (x4)

Wall Plate

End Cap (x1)

Wall Plate

End Cap (x1)

Nut

(x4)

Bolt

(x4)

Wrench

(x1)

4 mm Hex

Key (x1)

6 mm Hex

Key (x1)

Parts List

Stud ﬁnder

(for installation

on wood stud wall)

Pencil Level Drill with

appropriate bits

(for installation type)

Screwdriver

W-B

Concrete Anchor (x3)

W-A

Anchor Bolt (x3)

W-C

Washer (x3)

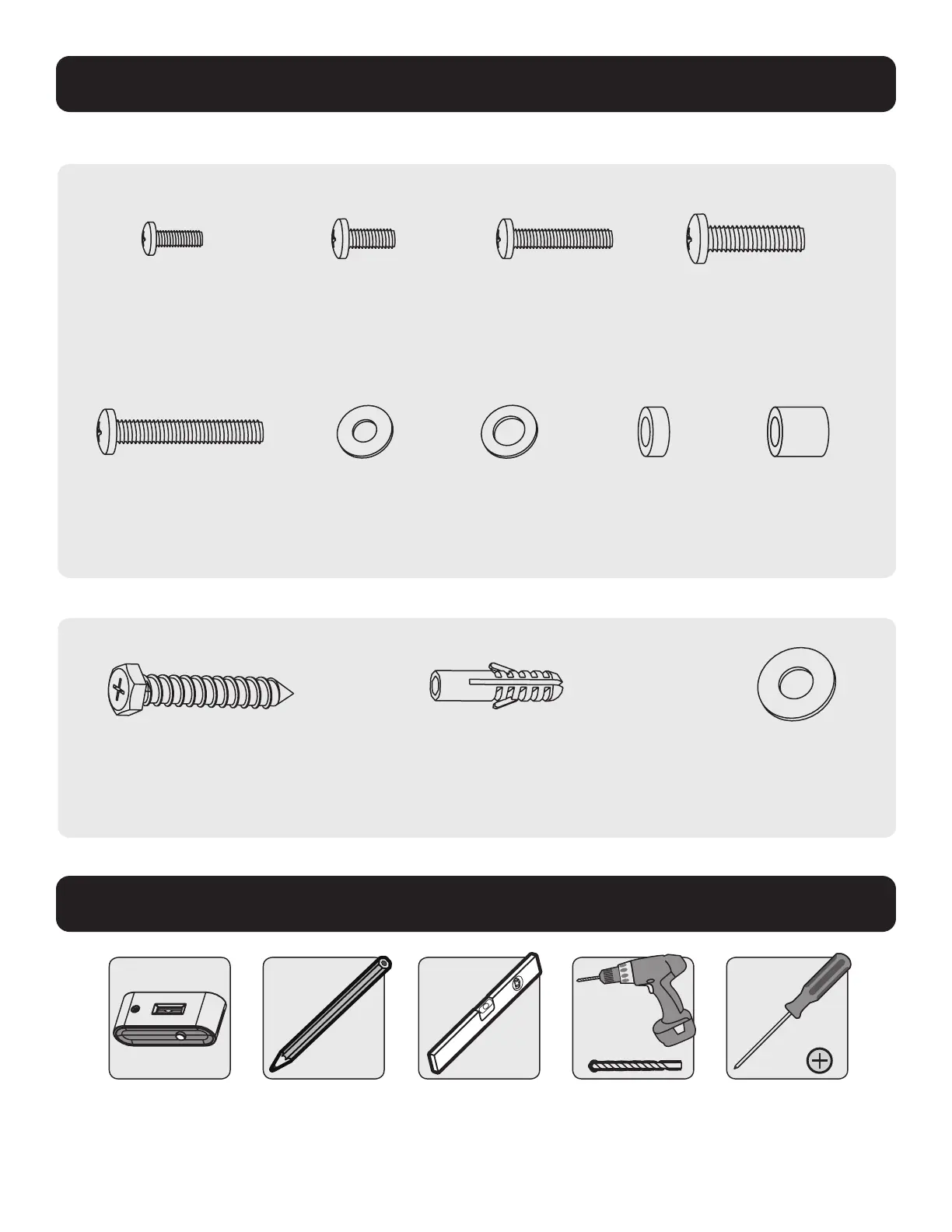

Package M

Package W

M-A

M5x14 (x4)

M-E

M8x50 (x4)

M-B

M6x14 (x4)

M-F

D5 Washer (x4)

M-C

M6x30 (x4)

M-H

Smaller Spacer (x8)

M-D

M8x30 (x4)

M-I

Large Spacer (x8)

M-G

D8 Washer (x4)

Required for Installation

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Flatpanelstøtte
Modell:	DWM2355S
Vekt:	3220 g
Bredde:	459.7 mm
Dybde:	631.9 mm
Høyde:	434.3 mm
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	4040 g
Sertifisering:	REACH, CE
Antall skjermer som støttes:	1
Maksimal skjermstørrelse:	55 "
Minimum skjermstørrelse:	23 "
Egnet for dataskjerm:	Ja
Monteringsplate medfølger:	Ja
Produktfarge:	Sort
Vippevinkelområde:	-15 - 15 °
Pakkedybde:	83.8 mm
Pakkehøyde:	439.4 mm
Monteringssett:	Ja
Pakkebredde:	348 mm
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	85299097
Kroppsmateriale:	Stål
Svingvinkel:	180 °
Panelmonterbart grensesnitt:	75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300 mm
Vippjustering:	Ja
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	23 kg
Forbedret kabelføring:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332258776
Masterkassens (ytterkassens) bruttovekt:	21050 g
Masterkassens (ytterkassens) lengde:	454.7 mm
Produkter per masterkasse (ytterkasse):	5 stykker
Masterkassens (ytterkassens) bredde:	370.8 mm
Masterkassens (ytterkassens) høyde:	459.7 mm
Monteringsgrensesnitt, kompatibilitet (min):	75 x 75 mm
Monteringsgrensesnitt, kompatibilitet (maks):	400 x 400 mm
Distanse til vegg (maks.):	323 mm
Skruer og muttere medfølger:	Ja
Antall skruemuttere:	4
Antall bolter:	4
Unbrakonøkkel medfølger:	Ja
Antall unbrakonøkler som medfølger:	2
Antall skiftenøkler som medfølger:	1
Bolter medfølger:	Ja
