Installation Guide

Wireless Access Point Right-Angle

Wall Bracket with Cover

Model: ENBRKTCVR

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Español 5 • Français 9 • 13Русский

Components List

Installation

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or

faulty, visit www.tripplite.com/support for service.

(x1) (x1) (x1) (x1) (x1)(x4) (x2)

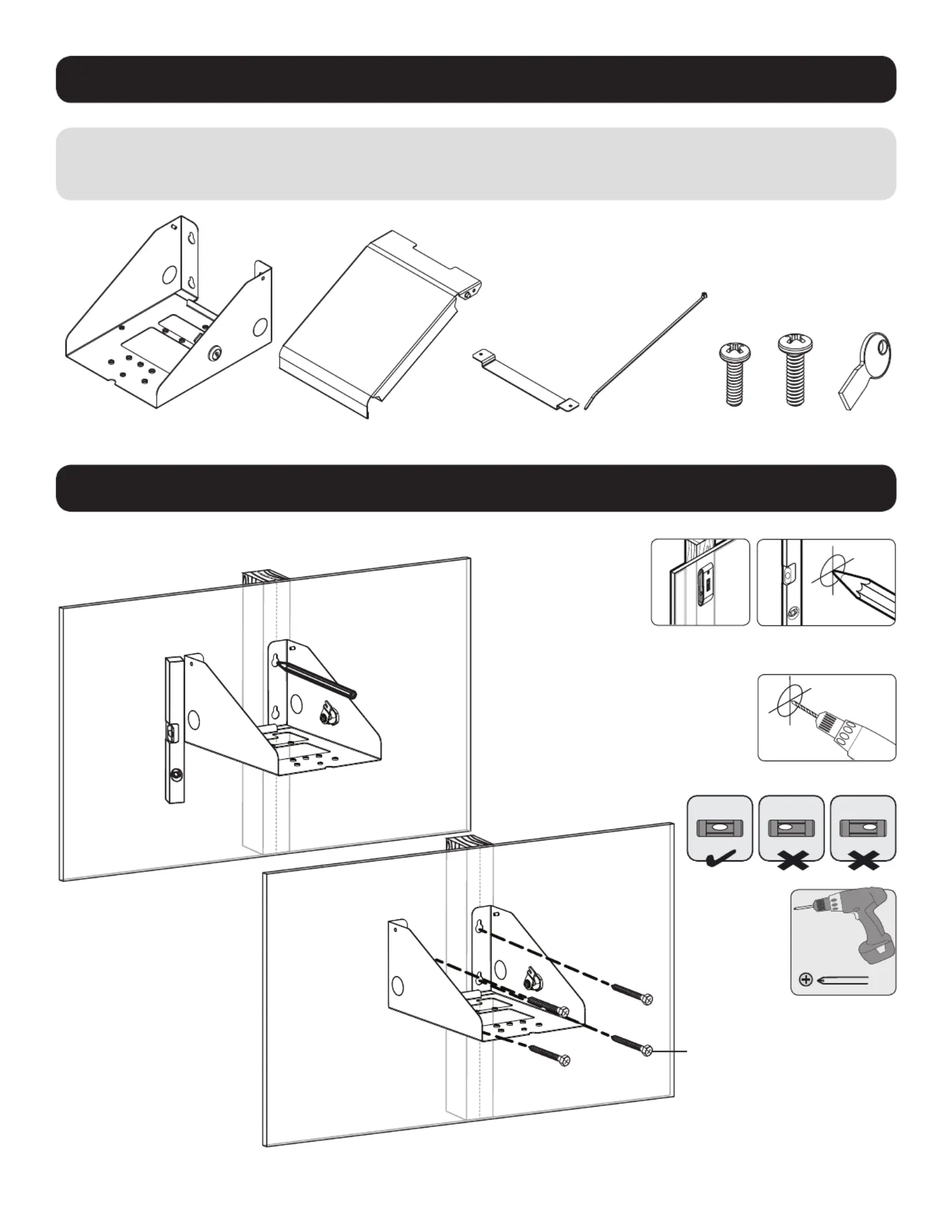

1. Mount Bracket to Wall

Mark the exact location of the

mounting holes

Attach the

bracket onto

the wall

Drill pilot holes

Find a wood stud

location for mounting

the wall mount

(Mounting Hardware

Not Included)

Installation

IMPORTANT!

Attach all data and power cables to the access point prior to attaching to the mount.

•

Installers are responsible for providing wall-mounting hardware. Use a minimum of two #10 x 2” or larger screws (not included) to secure the

mount in place.

• Make sure that mounting screws are anchored into the center of the studs. Use of a stud ﬁnder is highly recommended.

• If there is no stud at the mounting location, it is recommended that you use four anchors to secure the mount in place. Due to the

weight of the mount, plastic expansion wall anchors are not recommended for drywall installations. Suitable anchors include: threaded

drywall anchors, threaded drywall toggles, sleeve-type hollow wall anchors (a.k.a. molly bolts) or toggle bolts.

• If placing the mount over a telecommunications receptacle, remove the wall plate, then fasten the mount to the wall. Once secured,

fasten the wall plate back over the receptacle.

•

If no telecommunications receptacle is available, a surface mount box (or biscuit jack) and equipment cord can be mounted inside the unit.

• Use an adhesive-backed surface mount box.

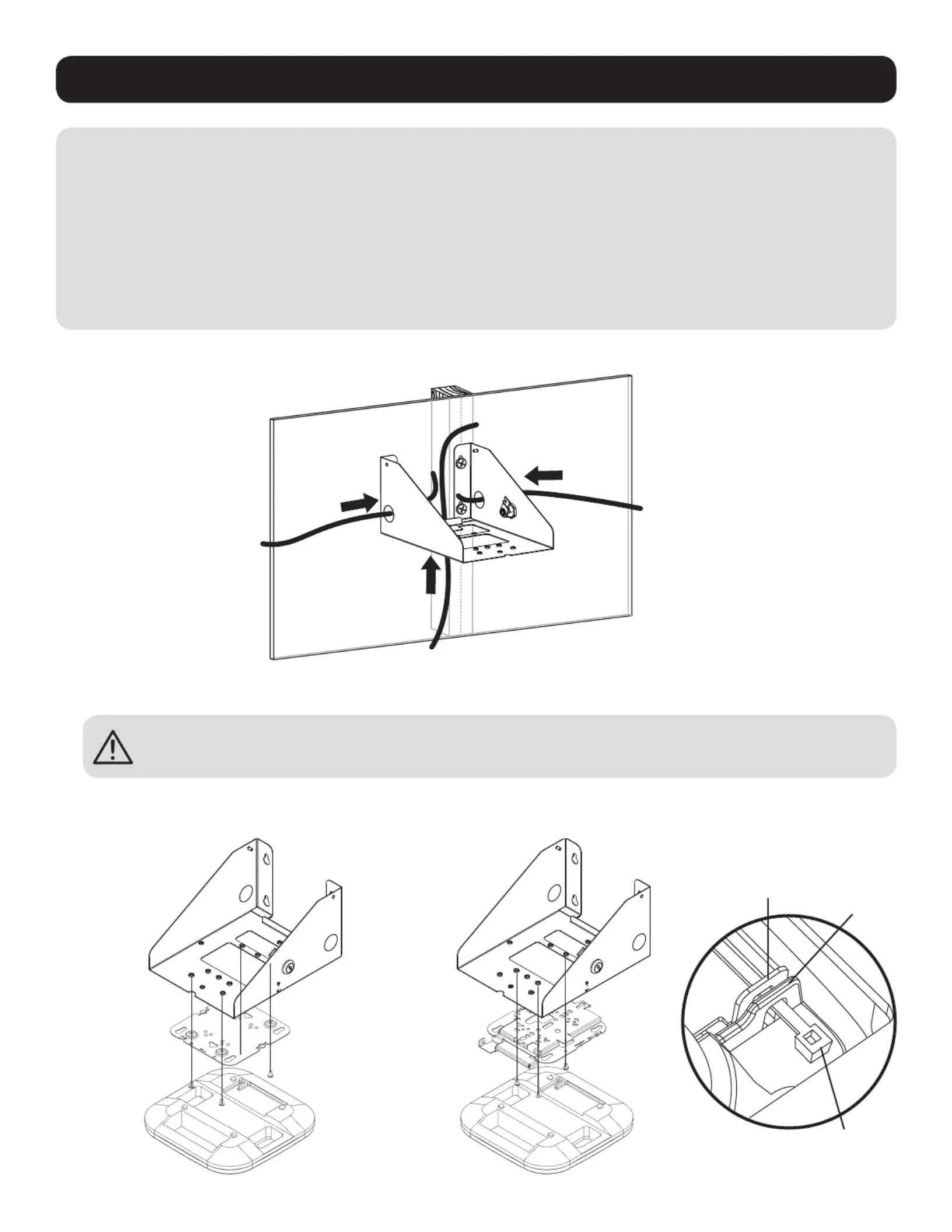

2. Run Data and Power Cable (If Required) Through the Mount’s Rear Cutout or

Side Conduit Cutouts

3. Using the Provided Screws, Attach the Access Point to the Mount

3a. Cisco Low-Proﬁle Bracket

(AIR-AP-BRACKET-1)* Installation

3b. Cisco Universal Bracket

(AIR-AP-BRACKET-2)* Installation

AIR-AP-BRACKET-2

Security Tab

Access Point

Security Tab

Zip Tie

(Included)

* Cisco brackets not included.

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	veggfeste
Modell:	ENBRKTCVR
Produkttype:	Feste for WLAN-tilgangspunkt
Vekt:	1410 g
Bredde:	187.4 mm
Dybde:	230.8 mm
Høyde:	128.3 mm
Opprinnelsesland:	China
Pakkevekt:	2100 g
Sertifisering:	RoHS
Materiale:	Stål
Antall per pakke:	1 stykker
Merkekompatibilitet:	Alle merker
Produktfarge:	Hvit
Pakkedybde:	290 mm
Pakkehøyde:	195 mm
Pakkebredde:	240 mm
Harmonisert system (HS)-kode:	8302.50.0000
Maksimalvekt (kapasitet):	5 kg
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332214451
Masterkassens (ytterkassens) bruttovekt:	22500 g
Masterkassens (ytterkassens) lengde:	1000 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	605 mm
Masterkassens (ytterkassens) høyde:	265 mm
