Installation Guide

Rack Rail Depth

Adapter Kit

Models: SRRAILDPTH1U, SRRAILDPTH2U

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Español 3 • Français 5 • Русский 7

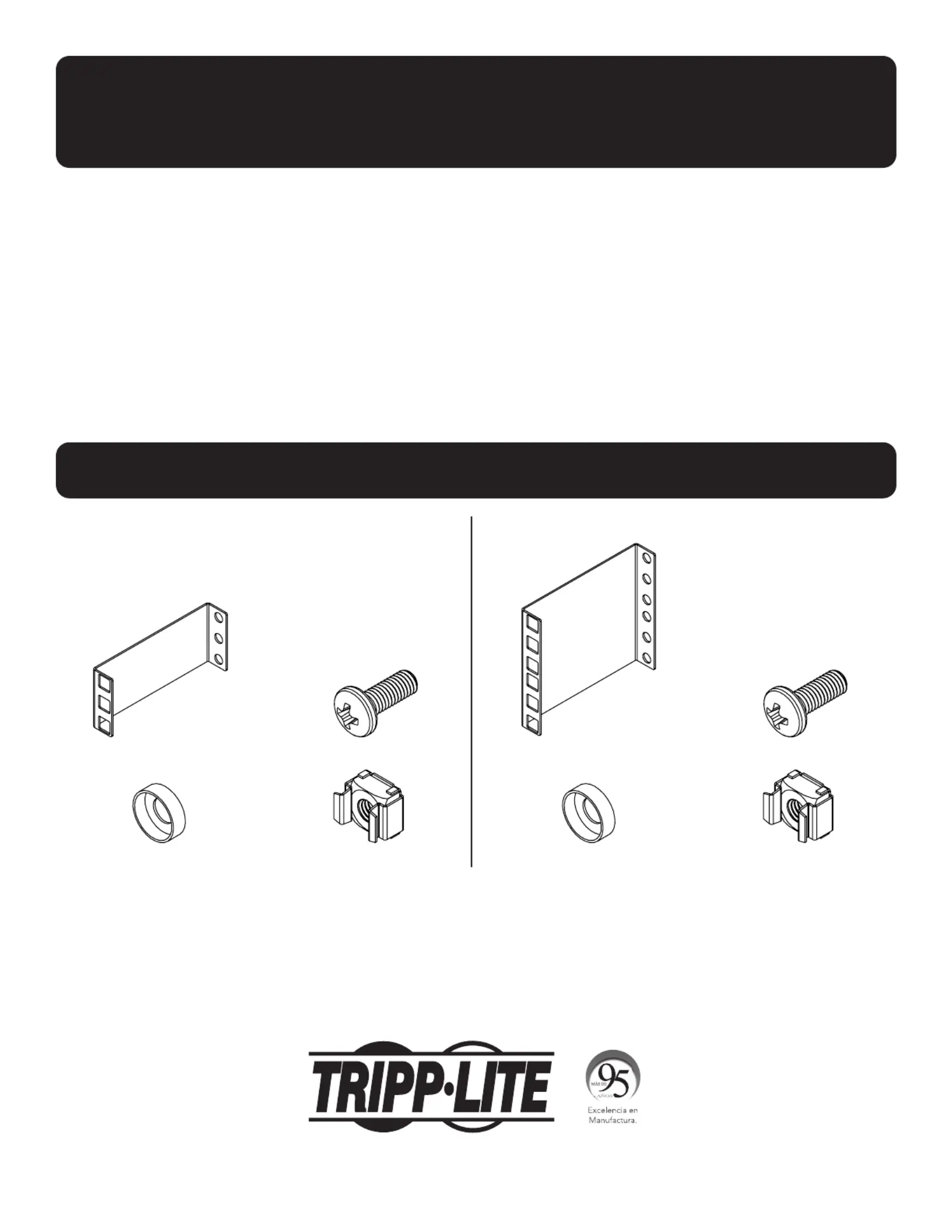

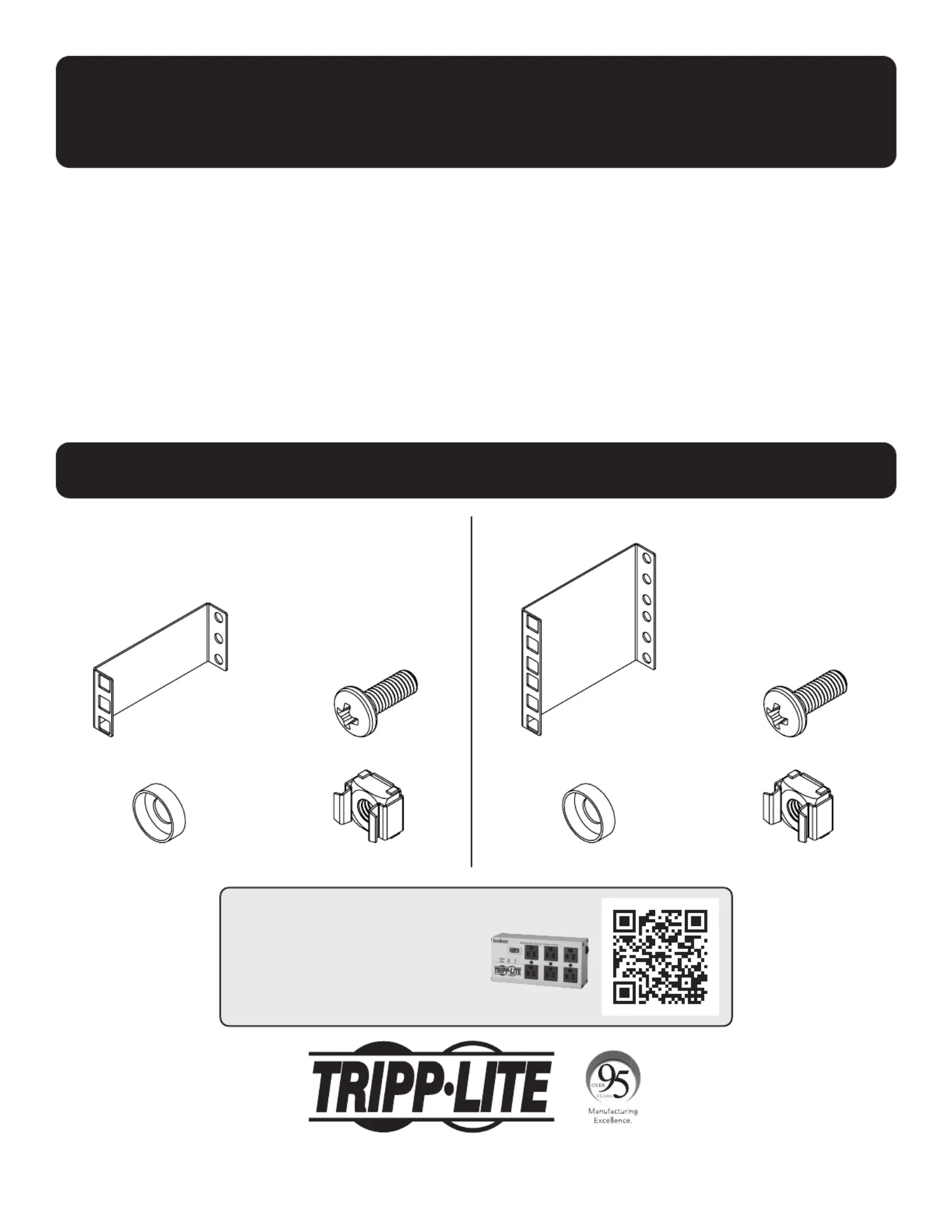

Parts List

Adapter Brackets (x2)

M6 Screws (x8) Adapter Brackets (x2)

M6 Screws (x16)

SRRAILDPTH1U SRRAILDPTH2U

M6 Cup Washers (x8) M6 Cage Nuts (x8) M6 Cup Washers (x16) M6 Cage Nuts (x16)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-04-297 93-3E42_RevA

Installation

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Photos and illustrations may differ slightly from actual products.

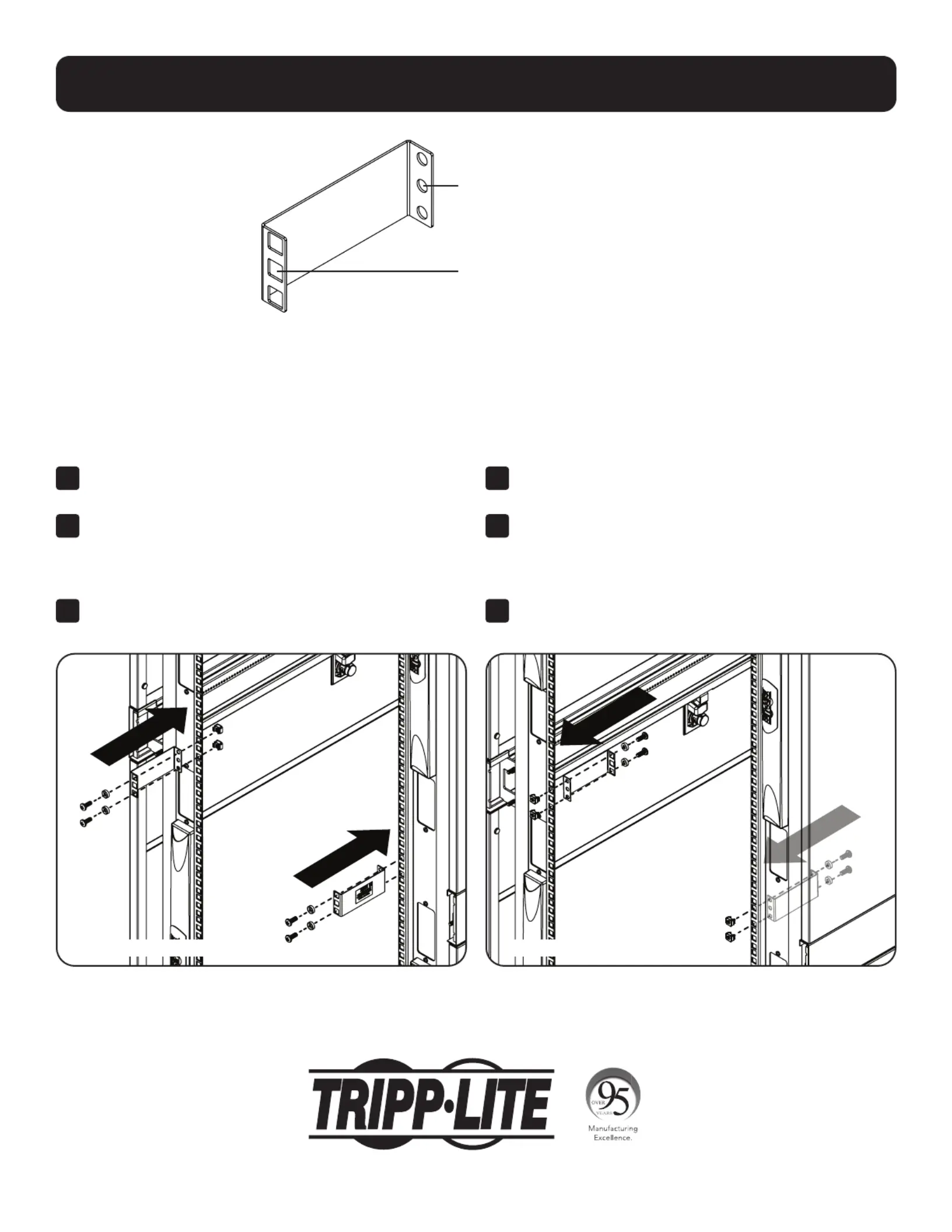

Rack-Mounting Holes

Equipment-Mounting Holes

To INCREASE the Depth of the

Rack

Use for rack-mounting LONGER

components.

Position the brackets so the rack-mounting holes are

on the outside of the rack’s front vertical rails.

For 1U brackets, use two of the supplied M6 screws,

washers and cage nuts per bracket to secure the top

and bottom rack-mounting holes to the rails. For 2U

brackets, secure the top, bottom and two center holes.

Secureyourequipment’smountingangestothe

brackets’ equipment-mounting holes.

To DECREASE the Depth of

the Rack

Use for rack-mounting SHORTER

components.

Position the brackets so the rack-mounting holes are

on the inside of the rack’s front vertical rails.

For 1U brackets, use two of the supplied M6 screws,

washers and cage nuts per bracket to secure the top

and bottom rack-mounting holes to the rails. For 2U

brackets, secure the top, bottom and two center holes.

Secureyourequipment’smountingangestothe

brackets’ equipment-mounting holes.

SRRAILDPTH1U shown.

SRRAILDPTH1U shown. SRRAILDPTH1U shown.

Guía de Instalación

Juego de Adaptador de

Profundidad de Riel para Rack

Modelos: SRRAILDPTH1U, SRRAILDPTH2U

1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support

English 1 • Français 5 • Русский 7

Lista de Partes

Soportes de Adaptador (x2)

Tornillos M6 (x8) Soportes de Adaptador (x2)

Tornillos M6 (x16)

SRRAILDPTH1U SRRAILDPTH2U

Arandelas de copa M6 (x8) Tuercas de fijación M6 (x8) Arandelas de Copa M6

(x16)

Tuercas de fijación M6

(x16)

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	veggfeste
Modell:	SRRAILDPTH1U
Vekt:	190 g
Bredde:	63.5 mm
Dybde:	114.3 mm
Høyde:	50.8 mm
Opprinnelsesland:	China
Pakkevekt:	190 g
Antall per pakke:	2 stykker
Produktfarge:	Sort
Pakkedybde:	120.6 mm
Pakkehøyde:	41.3 mm
Monteringssett:	Ja
Pakkebredde:	60.3 mm
Bærekraftsertifikater:	REACH, RoHS
Harmonisert system (HS)-kode:	7326.90.8688
Modell/Type:	Dybdeadapter
Rack-kapasitet:	1U
Bærekraftsamsvar:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332263183
Produkter per masterkasse (ytterkasse):	90 stykker
