Side 1/16

Metered Rack PDU

Models:

PDUMV30, PDUMV30HV, PDUV30HV, PDUV30-36,

PDUMV20HV, PDUMV20HVL6, PDUMV20HV-36,

PDUV20HVL6-72

(Series Numbers: AGIB6672, AGPD6673, AGPD6674)

Important Safety Instructions 2

Important Warnings 2

Installation 3

Features 3

Warranty & Product Registration 4

Español 5

Français 9

Русский 13

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

PRODUCT REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

20-09-042.indb 120-09-042.indb 1 10/9/2020 9:39:35 AM10/9/2020 9:39:35 AM

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be

followed during the installation, operation and storage of this

product. Failure to heed these instructions and warnings will void the

product warranty.

Important Warnings

• The PDU provides convenient multiple outlets but it DOES NOT provide surge or line noise

protection for connected equipment.

• The PDU is designed for indoor use only in a controlled environment away from excess moisture,

temperature extremes, conductive contaminants, dust or direct sunlight.

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to significantly

affect its safety or effectiveness is not recommended. Do not use this equipment in the

presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

• Do not connect the PDU to an ungrounded outlet or extension cords or adapters that eliminate

the connection to ground.

• The power requirement for each piece of equipment connected to the PDU must not exceed the

individual outlet’s load rating.

• The total power requirement for equipment connected to the PDU must not exceed the

maximum load rating for the PDU.

• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable

parts inside.

• Do not attempt to modify the PDU, including the input plugs and power cables.

• Do not attempt to use the PDU if any part of it becomes damaged.

• Do not attempt to mount the PDU to an insecure or unstable surface.

• Never attempt to install electrical equipment during a thunderstorm.

• Install in accordance with National Electrical Codes. Be sure to use the proper overcurrent

protection for the installation, in accordance with the plug rating/equipment rating as follows:

Model Series Number Overcurrent Protection

PDUV30HV AGIB6672 30A

PDUV20HVL6-72 AGIB6672 20A

PDUMV30 AGPD6673 30A

PDUMV16HV,

PDUMV20HV,

PDUMV20HVL6,

PDUMV20HV-36

AGPD6674 20A

PDUMV30HV AGPD6675 30A

20-09-042.indb 220-09-042.indb 2 10/9/2020 9:39:35 AM10/9/2020 9:39:35 AM

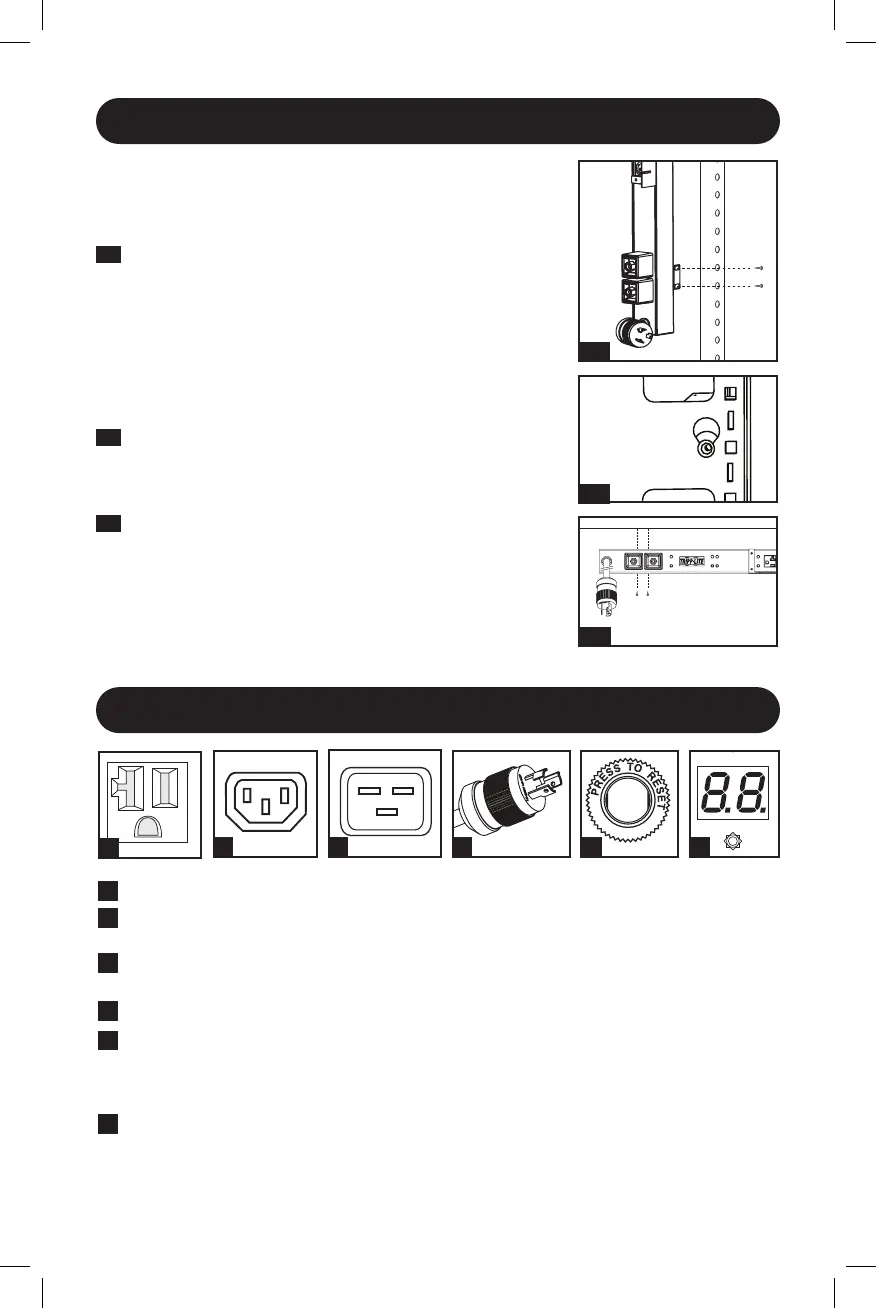

Installation

Note: Regardless of configuration, the user must determine the

fitness of hardware and procedures before mounting. The PDU

and included hardware are designed for common rack and rack

enclosure types and may not be appropriate for all applications.

Zero U Rack Configuration (Mounting Brackets). Prior to

installation, determine the rack location in which the PDU is

to be installed. Attach the mounting brackets to the back of

the PDU as shown, using the included screws. To assist with

proper positioning, the brackets have four screw holes each;

make sure that the same two holes are used to attach each

bracket to the PDU. After attaching the brackets, position

the PDU in the rack and mount it by installing four user-

supplied fasteners through the brackets into the rack.

Zero U Rack Configuration (Mounting Buttons). Attach

the included mounting buttons to the PDU. Position the PDU

as desired in the rack enclosure, align the buttons with the

rack mounting slots, and slide the PDU into position.

Under-Counter Configuration. The PDU may be installed

under a counter using the included mounting brackets.

Attach the mounting brackets to the back of the PDU as

shown in STEP 1A. Secure the PDU to the underside of the

counter by installing two user-supplied screws through each

bracket into the counter.

Note: Your model may differ.

432

Features

NEMA 5-15/20R Outlet (PDUMV30, PDUV30-36)

C13 Outlet (PDUMV20HV, PDUV20HVL6-72, PDUMV20HVL6, PDUMV20HV-36,

PDUMV30HV, PDUV30HV)

C19 Outlet (PDUMV20HV, PDUV20HVL6-72, PDUMV20HVL6, PDUMV20HV-36,

PDUMV30HV, PDUV30HV)

L5-30P, L6-20P or L6-30P Locking Plug

Circuit Breaker: If the current drawn by the equipment connected to the PDU exceeds

the Maximum Load Rating, the circuit breaker will trip to prevent possible damage. When the

circuit breaker trips, its plunger will pop up. Disconnect excess equipment and allow the

breaker to cool at least one minute before depressing the plunger to reset the breaker.

Ammeter: The total electrical current used by the PDU will be displayed on the digital meter

in amperes (select models only).

20-09-042.indb 320-09-042.indb 3 10/9/2020 9:39:36 AM10/9/2020 9:39:36 AM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	grenuttak
Modell:	PDUV20HVL6-72
Vekt:	3630 g
Bredde:	88.9 mm
Dybde:	57.2 mm
Høyde:	1619.2 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	4900 g
Sertifisering:	UL60950-1 (USA), CSA60950-1, NOM
AC-inngangsfrekvens:	50 - 60 Hz
Kabellengde:	4.6 m
Produktfarge:	Sort
Pakkedybde:	1663.7 mm
Pakkehøyde:	127 mm
Pakkebredde:	76.2 mm
Oppbevaringstemperaturomåde (Celsius):	5 - 95 °C
Bærekraftsertifikater:	RoHS
Kroppsmateriale:	Aluminium
Montering:	Vertikal
Driftshøyde:	0 - 3000 m
Rack-kapasitet:	0U
Display:	LED
Antall AC outlets:	16 AC-utganger
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332255942
Masterkassens (ytterkassens) bruttovekt:	29940 g
Masterkassens (ytterkassens) lengde:	1676.4 mm
Produkter per masterkasse (ytterkasse):	6 stykker
Masterkassens (ytterkassens) bredde:	406.4 mm
Masterkassens (ytterkassens) høyde:	177.8 mm
Strøm (maks.):	15 A
AC-utgangstyper:	NEMA L6-20R
Strømuttak:	NEMA L6-20P
Nominell innputspenning:	100-127 V
PDU types:	Målte
Rack-montert sett:	Ja
Nominell outputspenning:	100-127 V
Belastningskapasitet:	1800 VA
