Table of Contents

1. Important Safety Instructions 2

2. Overview 2

3. Feature Identification 3

4. Enclosure Installation 4

4.1 Preparation 4

4.2 Unpacking 4

5. Enclosure Configuration 5

5.1 Door Locks 5

5.2 Cable Access & Management 5

5.3 Reversing the Front Door 5

5.4 Mounting Rails 6

5.5 Adjusting Mounting Rail Depth 6

6. Wall Mounting the Enclosure 6

6.1 Mounting 6

7. Equipment Installation 7

8. Optional Patch Panel Installation 7

9. Specifications 7

10. Storage & Service 8

11. Warranty & Product Registration 8

Español 9

Low-Profile Wall-Mount

SmartRack

Enclosures

Models: SRWF2U, SRWF2U36, SRWF4U, SRWF4U36, SRWF5U,

SRWF5U36, SRWF6U, SRWF6U36

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1. Important Safety Instructions

2. Overview

SAVE THESE INSTRUCTIONS

This Manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to

comply may invalidate the warranty and cause property damage or personal injury.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive

contaminants, dust and direct sunlight.

• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation

openings of the enclosure.

• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a

mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.

• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.

• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.

• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible.

• Install the enclosure in a structurally sound area capable of handling the load, or on a level floor that is able to bear the weight of the enclosure, all

equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.

• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage

that will void the warranty.

• Do not reship the enclosure with additional equipment unless the enclosure was shipped with a special shock pallet (“SP1” models only). The

combined weight of the enclosure and installed equipment must not exceed the load capacity of the pallet. Tripp Lite is not responsible for any

damage that occurs during reshipment.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support

equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable

anesthetic mixture with air, oxygen or nitrous oxide.

These Low-Profile Wall-Mount SmartRack Enclosures provide convenient and secure vertical mounting for standard 19-inch rackmount equipment,

regardless of vendor, and ship fully assembled for quick and easy deployment.

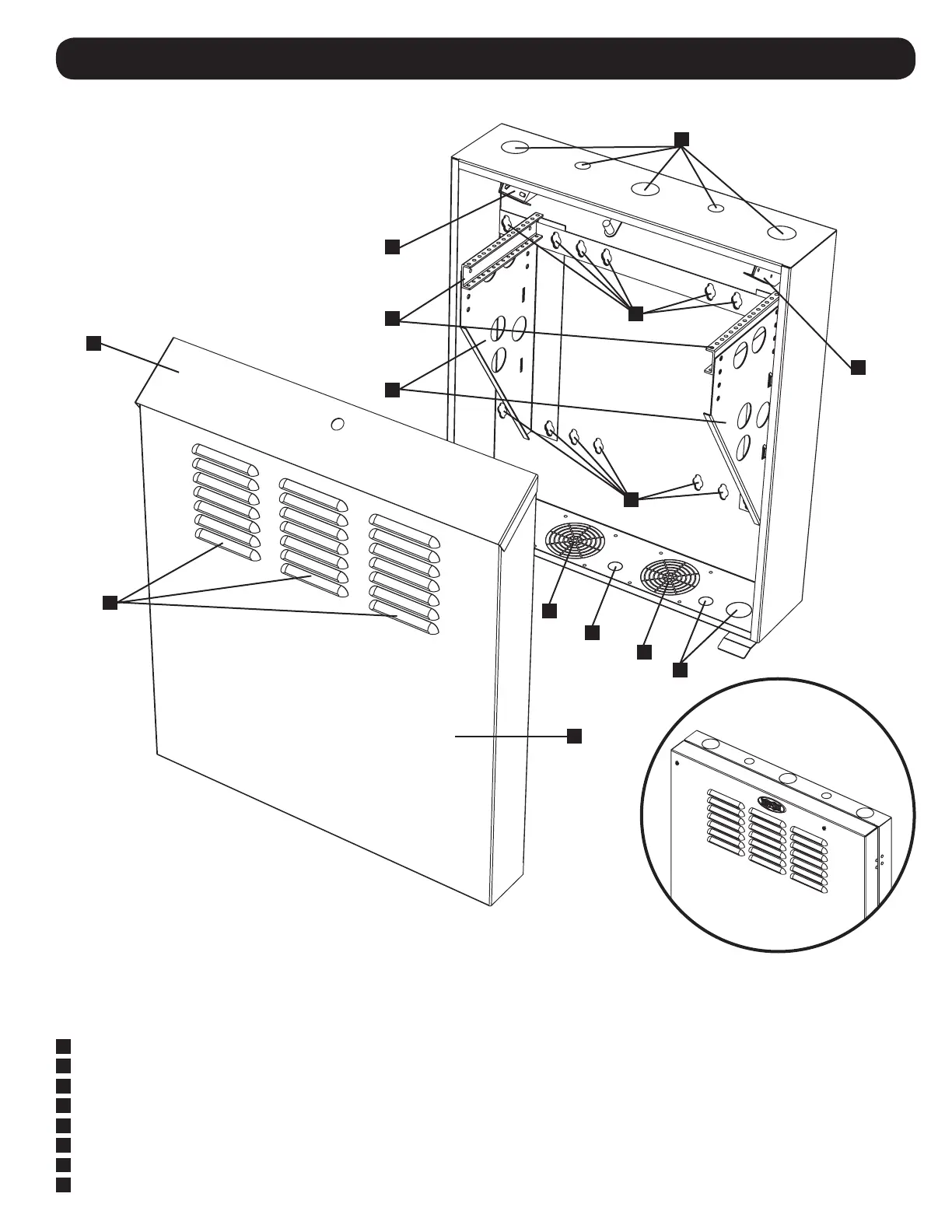

3. Feature Identification

Features for all other models are similar, except the SRWF2U series does not have a top panel door.

Front Door

Top Panel Door

Horizontal Mounting Rails

Vertical Mounting Bracket

Patch Panel Mounting Bracket

Cable Access Holes

Vents

Wall-Mounting Slots

SRWF2U

SRWF5U

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	veggfeste
Modell:	SmartRack SRWF2U
Vekt:	21770 g
Bredde:	650.2 mm
Dybde:	114.3 mm
Høyde:	731.5 mm
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	21770 g
Sertifisering:	EIA-310-E, RoHS
Materiale:	Stål
Innvendig dybde:	508 mm
Produktfarge:	Sort
Pakkedybde:	870 mm
Pakkehøyde:	239.8 mm
Pakkebredde:	789.9 mm
Harmonisert system (HS)-kode:	8517.79.0000
Modell/Type:	Veggmonterbar hylle
Nøkkellås:	Ja
Rack-kapasitet:	2U
Maksimalvekt (kapasitet):	68 kg
Masterkassens (ytterkassens) bruttovekt:	21770 g
Masterkassens (ytterkassens) lengde:	870 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	789.9 mm
Masterkassens (ytterkassens) høyde:	239.8 mm
Veggmonterings sett:	Ja
