Side 1/2

Masonry Wall

- Drill two 10mm (0.4”) diameter holes, 50mm (2”) deep.

- Secure the Mounting Plate to the wall using the Coach

Bolts and Concrete Anchors supplied.

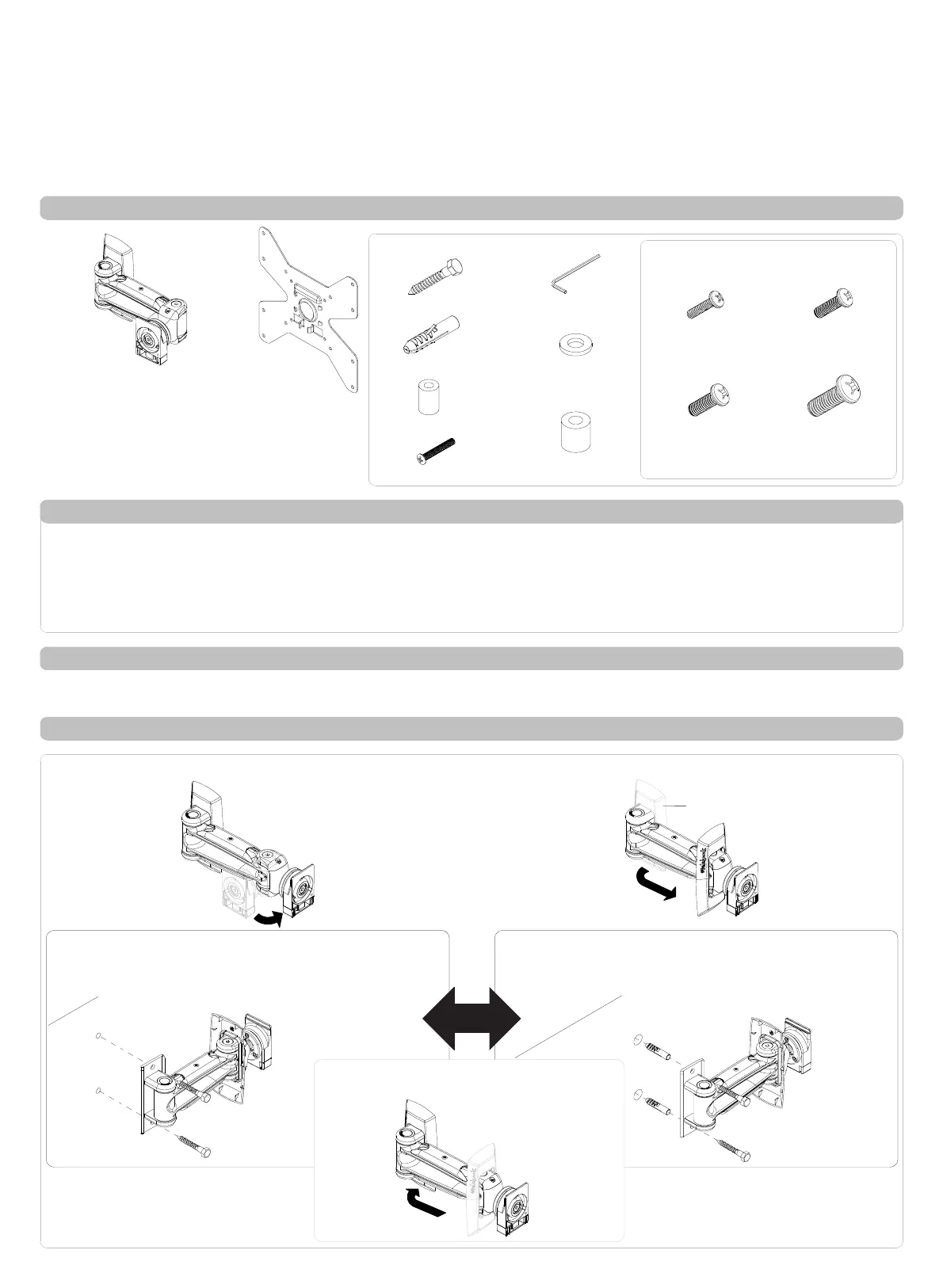

Component Checklist

Coach Bolt (x2)

Concrete Anchor (x2)

M4/5 Spacer (x4)

Security Screw (x1)

3mm Allen Key

M4x16/25mm

(x4 each)

M5x16/25mm

(x4 each)

M6x16/30mm

(x4 each)

TH-1032-VFM

Flat Screen Wall Mount / Full Motion

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the component checklist and Hardware above.

Step 2. Attaching Arm to the Wall

! IMPORTANT - Install 1032 Flat Screen Wall Mount as per Installation Instructions.

! This product supports a maximum load of 25kg (55lbs).

! This product supports VESA mounting hole configurations: VESA plate, 75x75mm, 100x100mm, 200x100mm,

and 200x200mm.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting Screws

Hardware

Tools Required:

Power Drill

•

6mm (0.25”) Drill Bit

•

10mm (0.4”) Masonry Drill Bit

•

Phillips-head Screwdriver•

13mm (0.5”) Socket Wrench or Shifter

•

Remove the Arm from the packaging and open fully.

Un-clip the Wall Plate Cover and slide down the arm.

Slide the Wall Plate Cover back along

the arm, and push flat against the wall.

Wall Plate Cover

M4/M5 Washers

(x4 each)

M6/8 Spacer (x4)

M8x16/30mm

(x4 each)

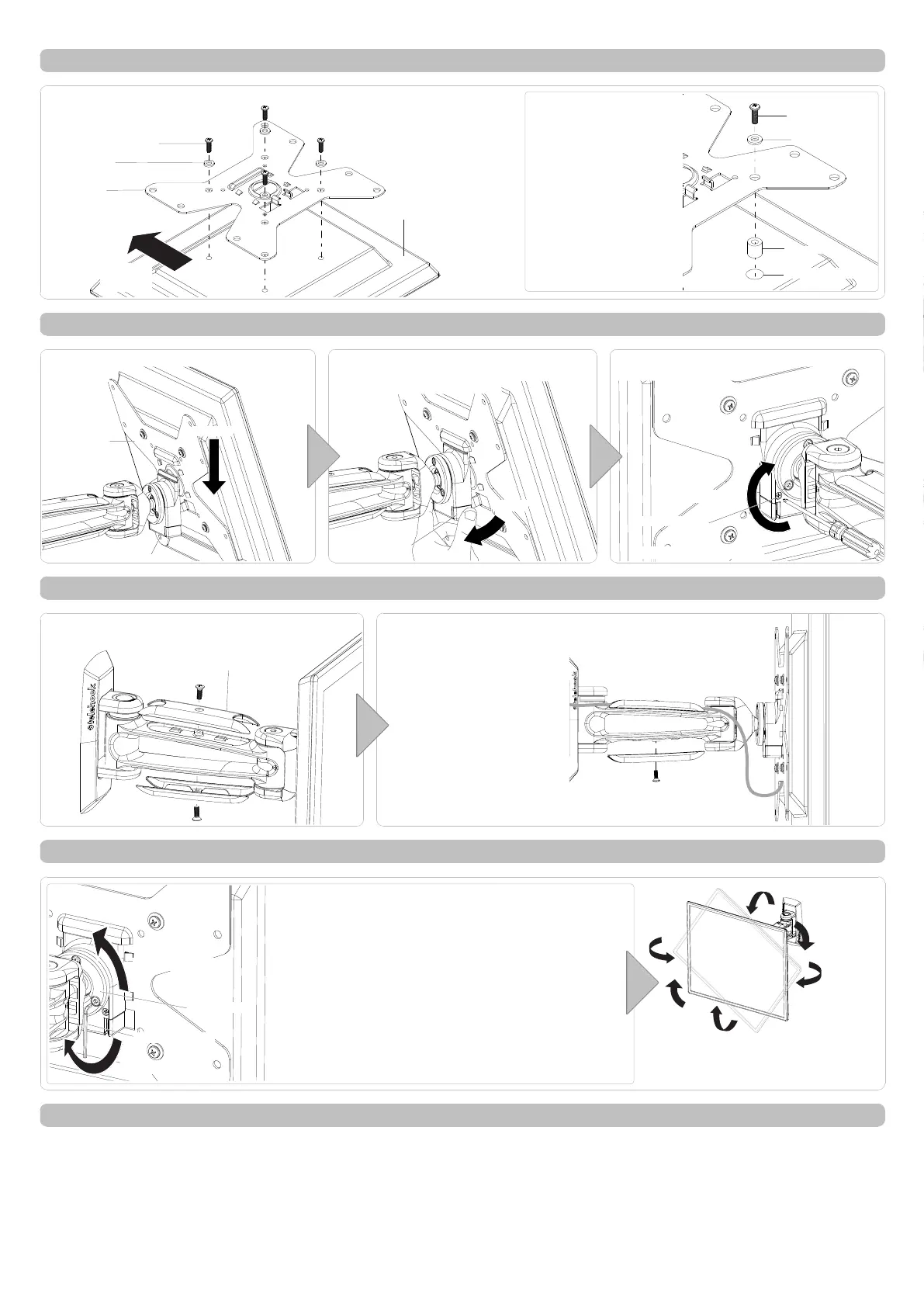

Arm Assembly VESA Plate

- Drill two 6mm (0.25”) diameter holes, 50mm (2”) deep.

- Secure the Mounting Plate to the wall using the Coach

Bolts supplied.

Timber Stud Wall

Installation Instructions

Produkspesifikasjoner

Merke:	Atdec
Kategori:	veggfeste
Modell:	TH-1032-VFM
Panelmonterbart grensesnitt:	75 x 75,100 x 100,200 x 100,200 x 200 mm
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	25 kg
Monteringsgrensesnitt, kompatibilitet (min):	75 x 75 mm
Monteringsgrensesnitt, kompatibilitet (maks):	200 x 200 mm
